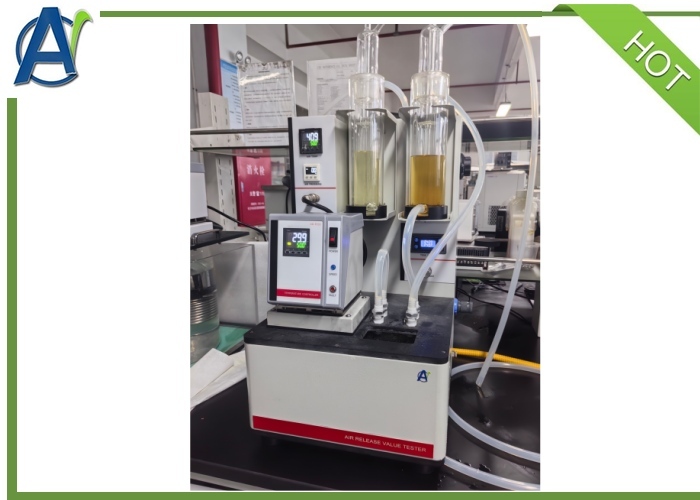

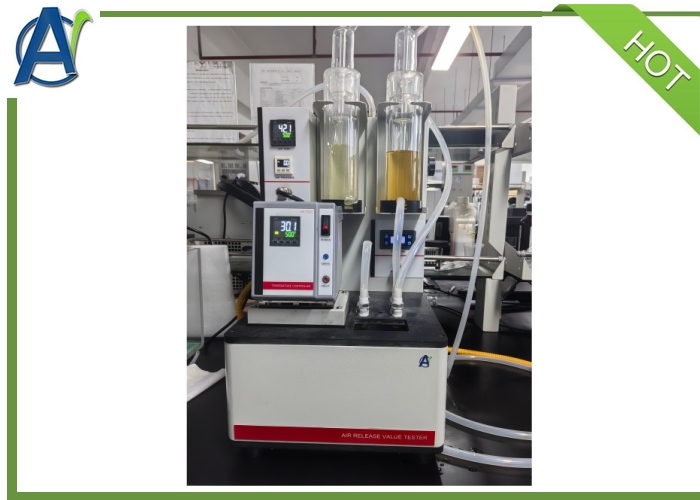

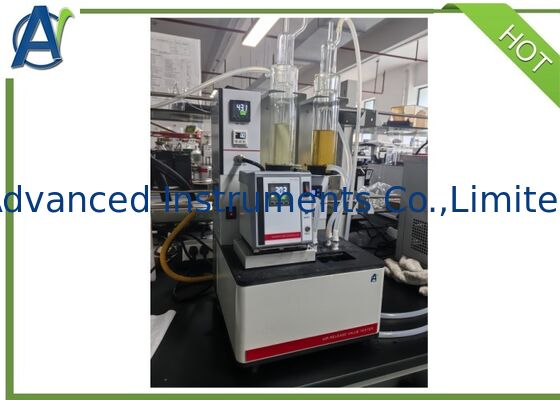

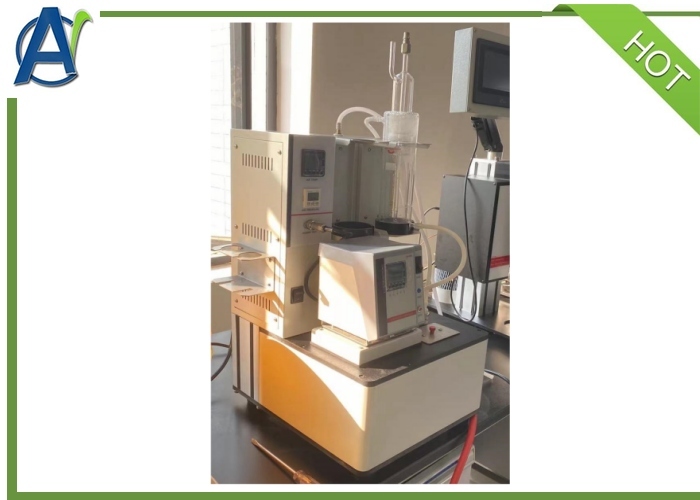

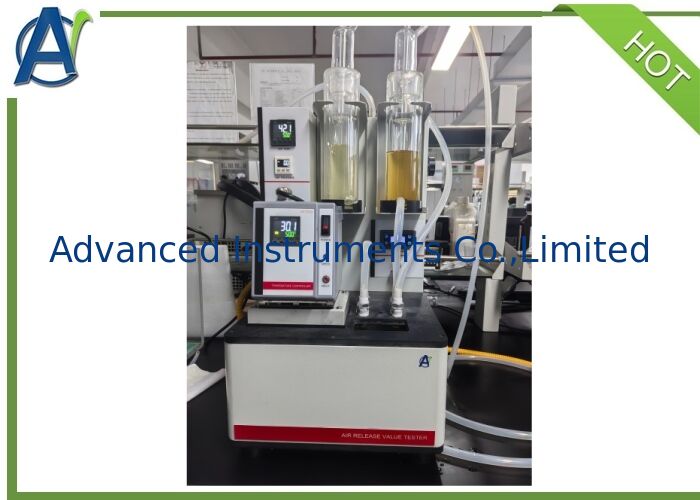

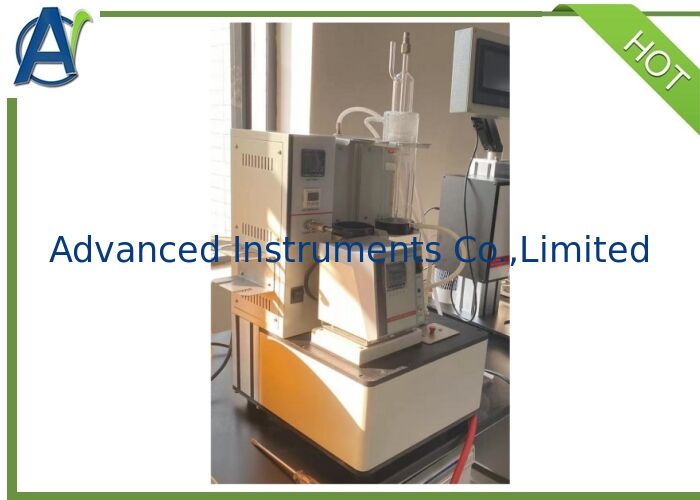

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	ARV-II

Minimum Order Quantity:	1 Set
Price:	USD$3,000~5,000
Packaging Details:	Plywood case
Delivery Time:	30days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Warranty:	1full Year	Application:	Grease Testing
Language:	English	OEM Service:	Available
Temperature Control Range:	Ambient~80±1℃	Function:	Test Ability Of Oils To Separate Entrained Air
Test Standard:	ASTM D3427,SH/T0308	Power Supply:	AC220±10% 50Hz±5%
Pressure Display:	Digital	Working Pressure:	19.6kpa
Pressure Control:	Precise Pressure Regulating Valve	Operation:	Manual
Display:	LED	Portable:	Non Portable
Type:	Air Release Value Meter	Timing Mode:	Digital Timer
Heating Mode:	Electric Bar
Highlight:	ASTM D3427 lubricant air release tester , SH/T0308 automatic oil tester , lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.

Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.

2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC

3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.

4. Stainless steel constant water bath is corrosion resistant.

5. The Air Release Properties Tester uses LED display working pressure.

6. Each tap can be connected easily.

7. Timer can display time,manual timing is not needed.

8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.

9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.

III. Specifications:

1	Applicable standard	SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2	Power supply	AC220±10% 50Hz±5%
3	Heating mode	Electric bar
4	Temperature controlling range	ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5	Working pressure	19.6Kpa
6	Pressure controlling	Precise pressure regulating valve
7	Timing mode	Digital timer
8	Pressure display	Digital

FAQ

What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
