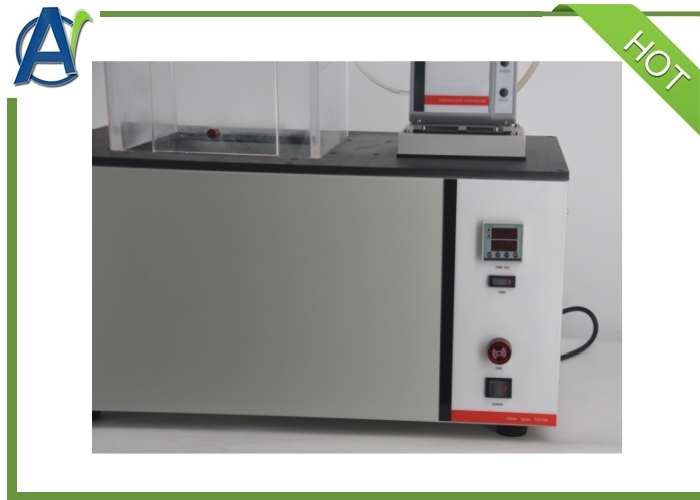

ASTM D4049 Grease Water Spray Resistance Tester Lubricant Grease Water Spray Test Equipment

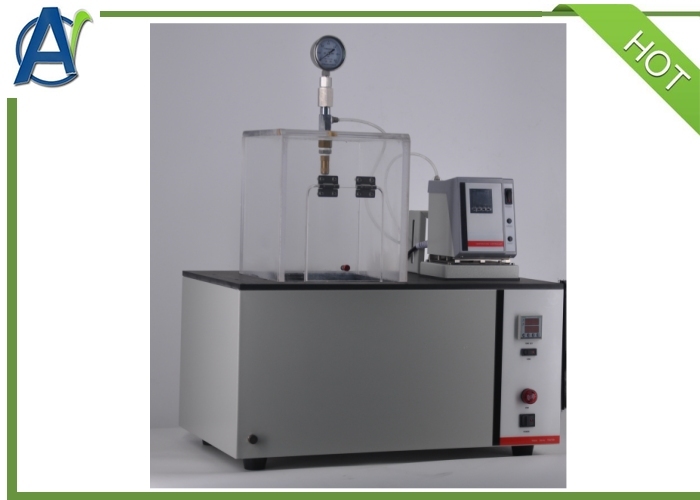

Grease Water Spray Resistance Tester

I. Introduction:

The operating principle of the Grease Water Spray Resistance Tester is: apply lubricating grease on a stainless steel plate and use water spray under the specified test temperature and pressure. After 5min, measure the spray weight loss percentage of the grease as a measure of the water spray resistance to the grease.

II. Main Features

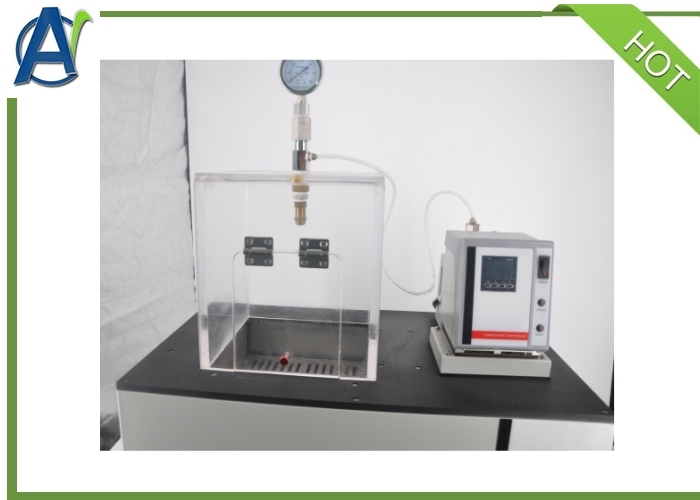

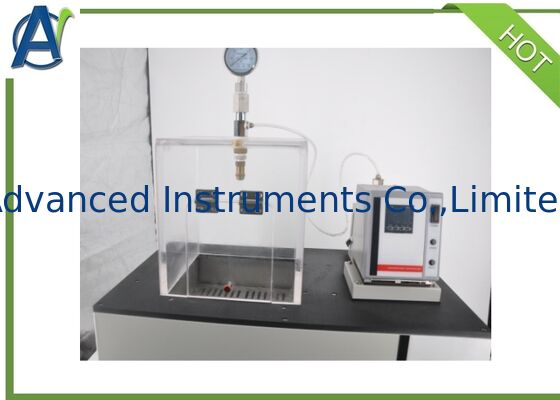

1. Plexiglass spray box for easy observation;

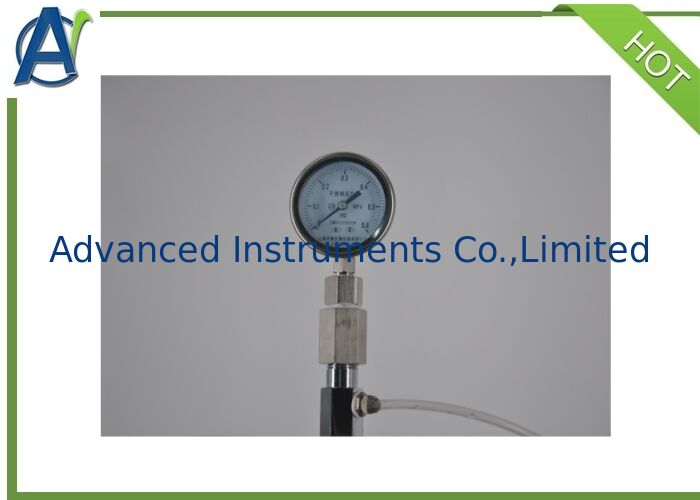

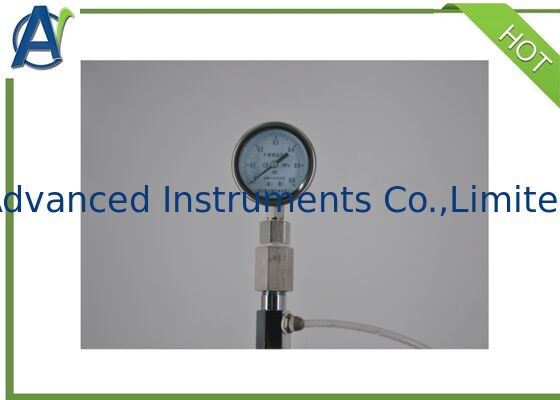

2. Precision pressure gauge shows spray pressure;
3. Stainless steel plate meets standard requirements: 152.4*50.75*6.35mm;
4. Stainless steel mold meets standard requirements: 203.2*76.2*11.11mm;
5. Stainless steel nozzle, nozzle diameter: Φ3.18mm;
6. The front end of the pressure gauge has a bypass valve to adjust the pressure: 40psi±1psi;

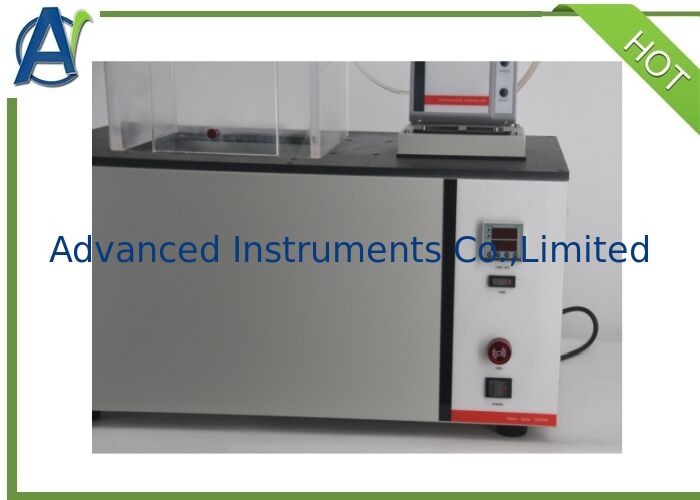

7. Microcomputer temperature controller, digital display, accuracy ±0.2ºC, PT100 sensor;
8. The magnetic pump circulates the cooling medium, and the circulation pipe is equipped with an insulation sleeve;
9. Digital display timer to control spray time.

III. Specifications:

FAQ

1. What's the delivery time?

   About 30days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
