Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil

Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil
Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ASTM D4007
Model Number: AIC-5Y
Minimum Order Quantity: 1 set
Price: US$3500-4500/set
Packaging Details: Plywood Case
Delivery Time: 20days
Payment Terms: T/T,L/C,D/P
Supply Ability: 200Sets Per Month
Get Best Price Contact Now
Test Standard: ASTM D4007 Warranty: 1full Year
Transport Package: Plywood Case Trandmark: Advanced Instruments
Power Supply: AC220 V 50Hz OEM Service: Available
Software Language: English Max Rotating Speed: 4000r/min
Max.Relative Centrifugal Force: 3756*G Max.Capacity: 4*100ml
Timing Range: 0~99min Accuracy Of Rotating Speed: ±10r/min
Weight: 63kg Dimension: 592mm×440mm×370mm
Highlight:

ASTM D4007

,

Total Centrifuge Test Equipment

,

Crude Oil Centrifuge Machine

General Introduction

AIC-5Y benchtop low speed centrifuge can separate,concentrate and purify specimen such as emulsion and suspension.It is designed according to GB/T6533-86,especially used to determine water and sediment in crude oil (Centrifuge method). This instrument is driven by ac variable frequency motor,rotating speed and time are displayed digitally.Electrical controlling system is controlled by mic-processor, key-press programmable method,easy operation,humanization design and beautiful appearance.
This centrifuge machine uses electronic door lock,if the door is not covered well(unlocked),the centrifuge can not be started.When it is running,press key of Lock,the door cover can not be opened.Please wait till the rotating speed is zero,press key Lock,the cover can be opened.. It adopts optimal design for damping system,the running is stable with slight shaking,low noisy and good separation performance.
This centrifuge equipment complies to GB/T6533-86 and IEC61010-2-020:1992.

Features
  1. Relative centrifugal force(RCF) can be switched to display when running.
  2. The centrifuge machine can automatically save all parameters,which can be used directly next time.
  3. When rotating speed exceeds 4500r/min,it can automatically stop to protect.
  4. Multi-rotors can be selected,makes it multifunctional.

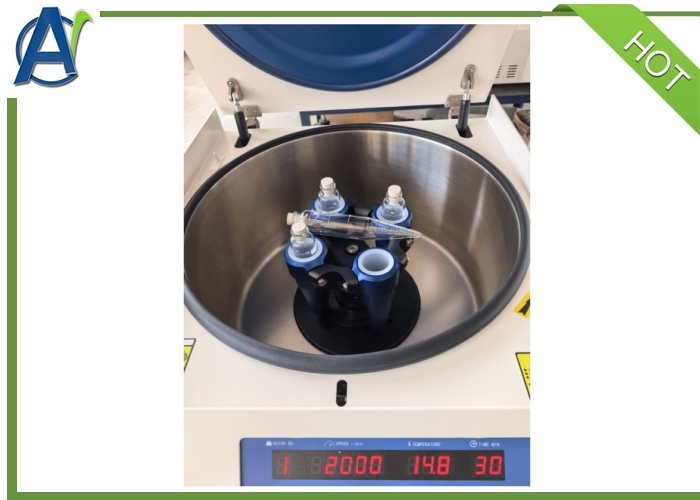

Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil 0
The Technical Specifications and Parameters
Max.rotating speed
4000r/min
Total power
1.5kw
Max.relative centrifugal force
3756xg
Power supply
Ac220V 50Hz 10A
Max.capacity
4×100ml
Noise
≤60dB(A)
Accuracy of rotating speed
±10r/min
Net weight
63kg
Temperature setting range
Room temperature/heating to 80ºC
Temperature controlling range
±1ºC if 40~60ºC

Shortest time of speed-up and speed-down

Can be set at random

Door lock type

Electronic door lock

Timing range

0~99min

Diameter of centrifugal chamber

500mm

Motor

AC varied frequency

Display screen

Digital

Overall dimension

592×440×370mm(L×W×H)

Driving mode

Direct driving

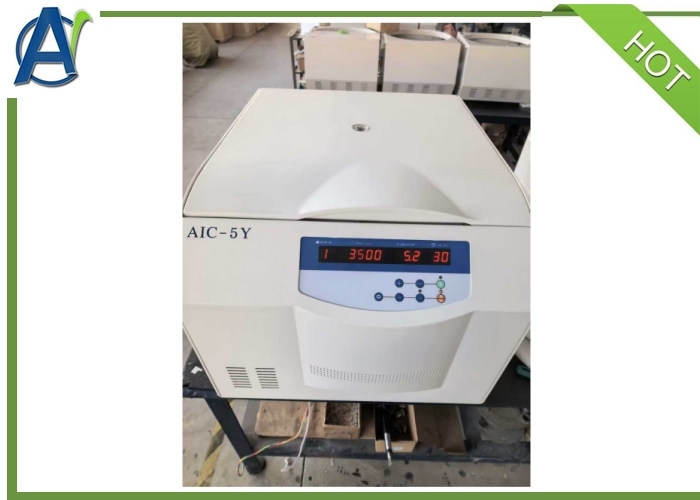

Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil 1
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
