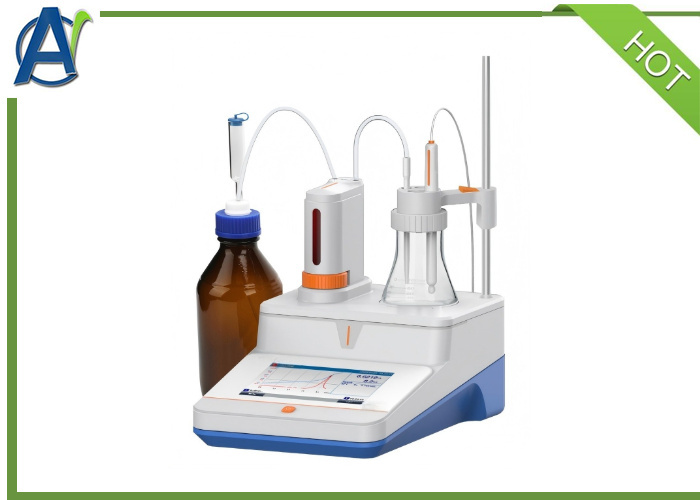

ASTM D664/ASTM D2896 TAN and TBN Analyzer by Automatic Potential Titraor

GENERAL FEATURES

• Color High contrast LCD touchscreen, 7.0 inches.
• Potential titration analysis.
• Replaceable burette with high-accuracy (10 mL or 20 mL selectable).
• Burette line using acid and alkali resistance, perchloric acid resistance, organic reagent corrosion resistant material, can be non-aqueous titration.
• Support upper mixer and lower mixer.
• Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration), constant pH titration, Blank titration, and MAT (manual titration).
• Support acid-base titration, non-aqueous phase acid-base titration, REDOX titration, precipitation titration and complex titration and other titration methods.
• It has titrant management.
• 1-3 points calibration with Standard Recognition.
• Selectable pH buffer groups, including NIST, DIN, GB, GOST.
• Displays the test method, titration curve and measurement results in real time.
• Formula editor can display calculation results directly.

Data management

• Data Storage 1000 sets (GLP-compliant).
• User password management.
• Support for RS-232 communication for print and the print format can be alternate.
• Support for USB communication for PC software.
• Support for U disk for data export with CSV or PDF format.

Includes

• 10mL burette
• 231-01 pH indicator electrode
• 213-01 platinum electrode
• 216-01 silver electrode
• 232-01-D reference electrode
• 217-01-D reference electrode
• T-818-Q Temperature probe
• NIST pH standard powder(4.01, 7.00, 10.01)

PRODUCT SPECIFICATIONS
