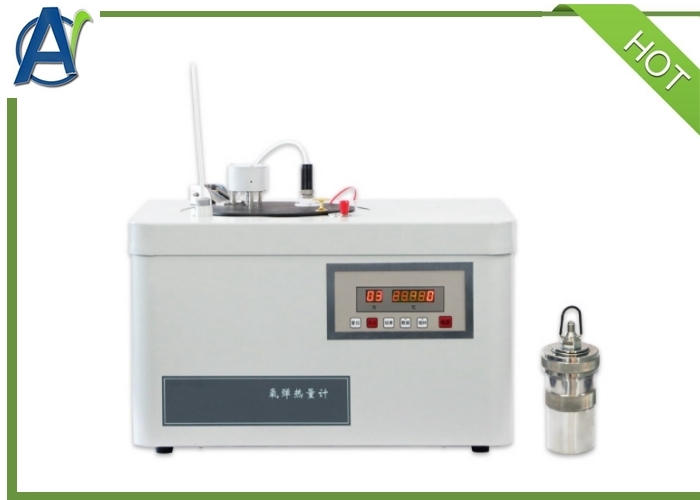

ASTM D240 Heat Value Tester of Petroleum Oil Oxygen Bomb Calorimeter

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D240
Model Number:	OBC-I

Minimum Order Quantity:	1 set
Price:	US$1500-2000/set
Packaging Details:	Plywood Case
Delivery Time:	20days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	20Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D240	Warranty:	1full Year
Transport Package:	Plywood Case	Trandmark:	Advanced Instruments
Operating Power Supply:	AC220 V±10V, 50Hz	Total Power Consumption:	≤150W
Heat Capacity:	14400 J/K~14500 J/K	Resolution:	0.001K
Measurement Accuracy:	≤ 60J/g	Temperature Measurement Range:	10 ℃~35 ℃
Repeatability:	≤0.2% (Grade C)	Pressure Endurance Of Oxygen Bomb:	20 MPa
Highlight:	ASTM D240 , Oxygen Bomb Calorimeter , Calorific Heat Value Apparatus

General Introduction

This Oxygen Bomb Calorimeter is designed and made as per the National Standard of People's Republic of China GB/T213-2008 and ASTM D240 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter.

The heat capacity of the instrument is 14000 J/K~15000 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.

Product Advantages

1.This Oxygen Bomb Calorimeter adopts sealed oxygen bomb. The whole structure adopts stainless steel material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.

2.The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.

3.The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket stirrer and form the constant temperature environment meeting the requirements of test.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Total power consumption	≤150W
Measuring temperature range	10℃~35℃
Resolution	0.001K
Heat capacity	14400 J/K~14500 J/K
Measurement accuracy	≤ 60J/g
Repeatability	≤0.2% (Grade C)
Data saved	31 pieces
Pressure endurance of oxygen bomb	20 MPa
Working environment	Ambient Temperature:(15~28)℃,the fluctuation is not more than 1 ℃ during one test Relative humidity:≤85%
Dimension	600mm×460mm×430mm (Note: Pellet press machine is optional accessory)

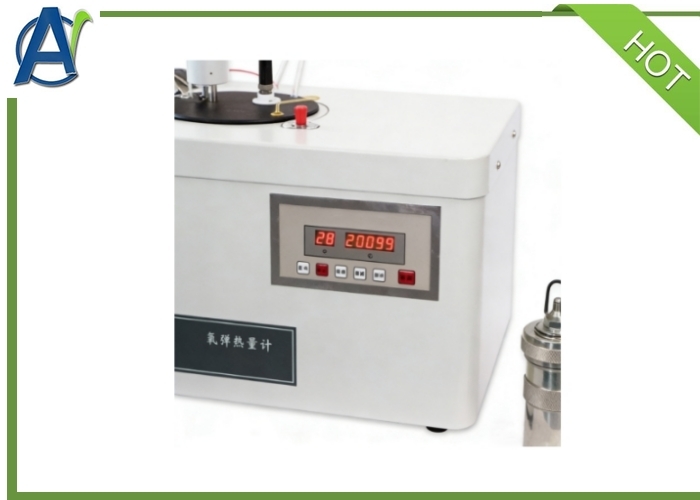

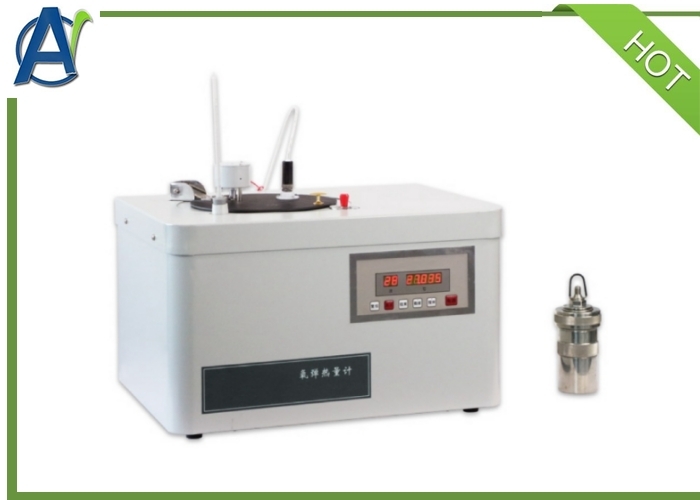

ASTM D240 Heat Value Tester of Petroleum Oil Oxygen Bomb Calorimeter 1

FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
