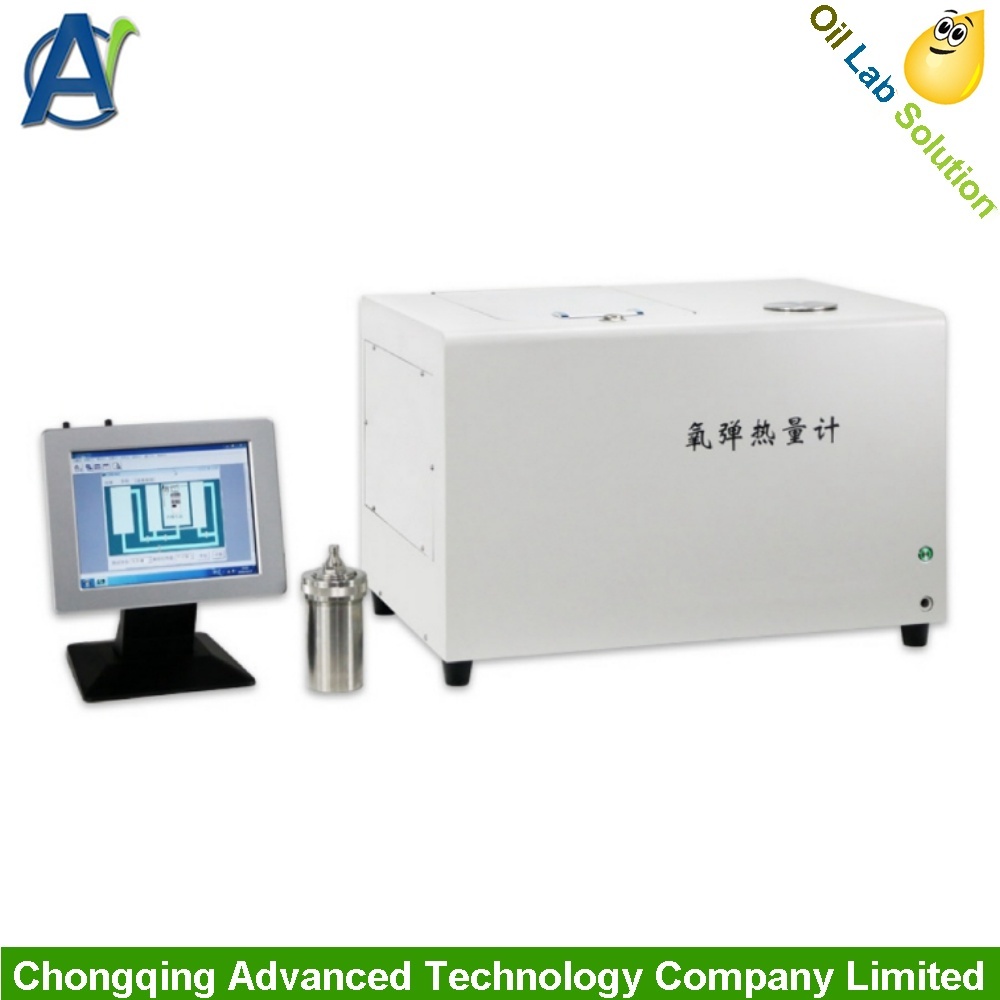

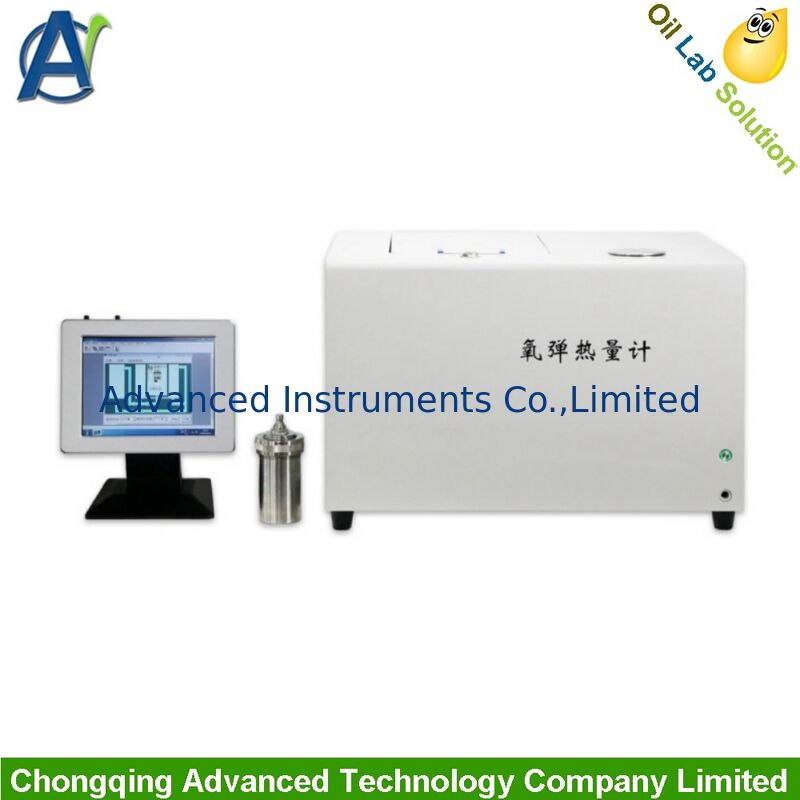

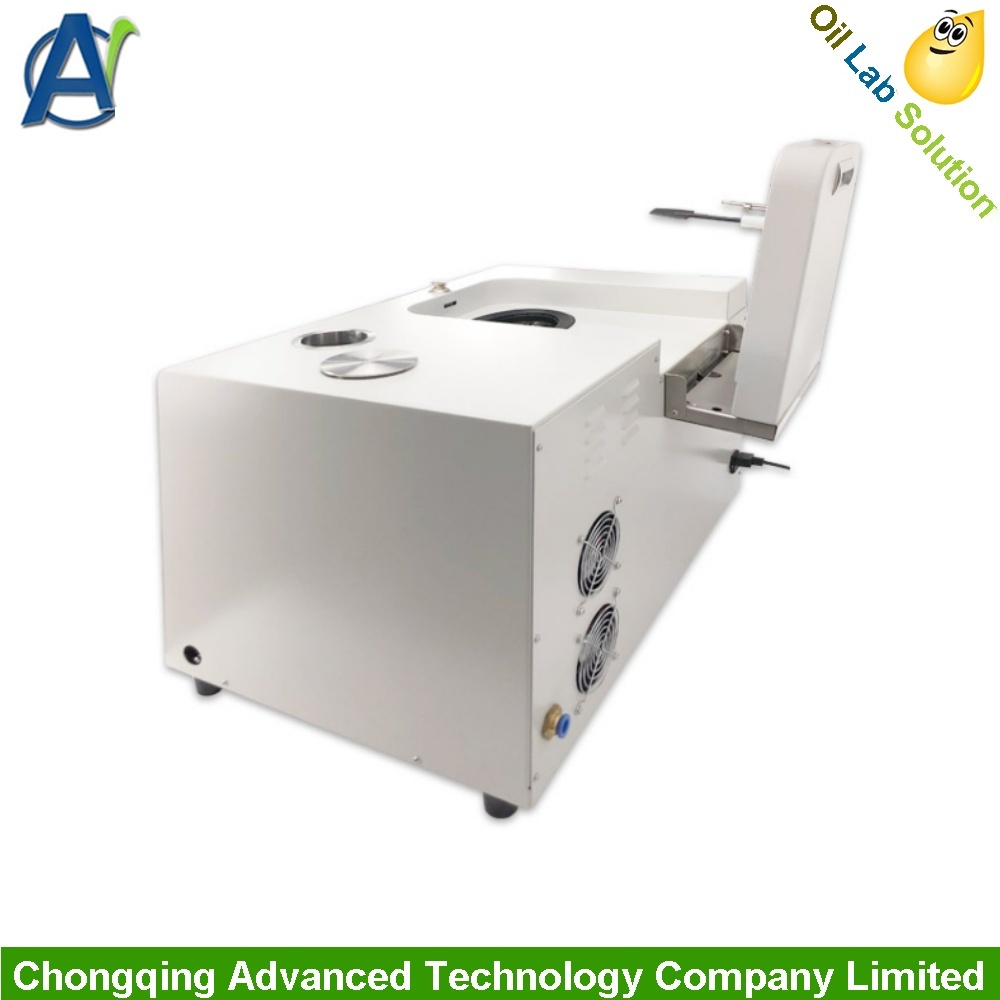

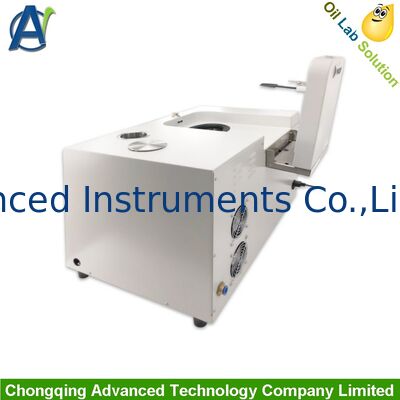

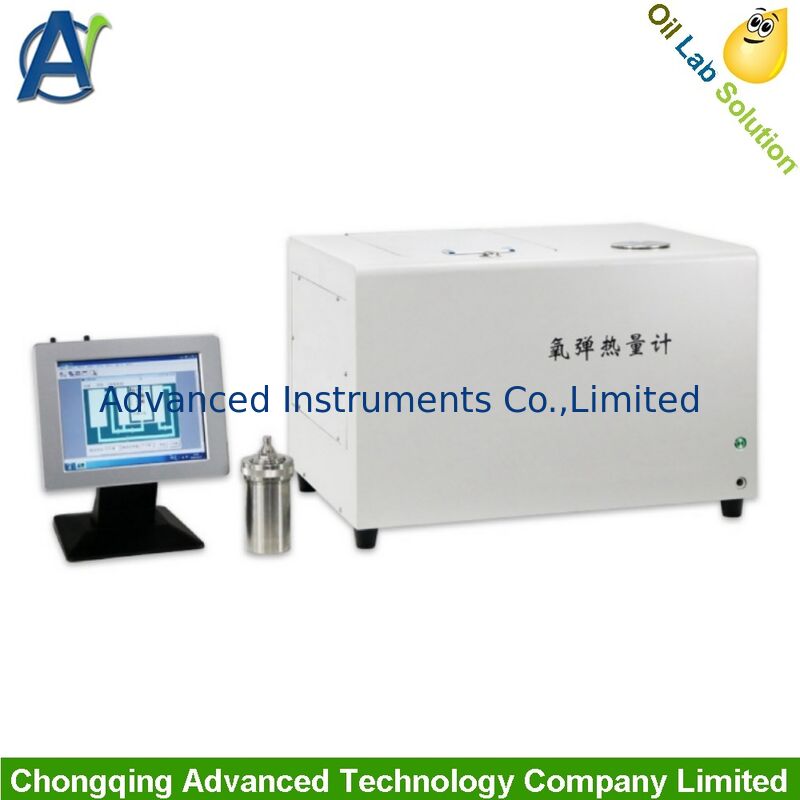

ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D240
Model Number:	OBC-III

Minimum Order Quantity:	1 set
Price:	US$5000-10000/set
Packaging Details:	Plywood Case
Delivery Time:	20days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	20Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D240	Warranty:	1full Year
Transport Package:	Plywood Case	Trandmark:	Advanced Instruments
Operating Power Supply:	AC220 V±10V, 50Hz	Total Power Consumption:	≤0.2KW
Measuring Temperature Range:	5℃~28℃	Temperature Resolution:	0.0001℃
RSD(Relative Standard Deviation):	≤0.1%	Test Time:	About 12mins
Measuring Range:	5MJ/kg~40MJ/kg	Net Weight:	55kg
Highlight:	ASTM D240 , Automatic Oxygen Bomb Calorimeter , Automatic Calorific Value Meter

General Introduction

This Automatic Oxygen Bomb Calorimeter is designed and made as per the National Standard of People's Republic of China GB/T213-2008 and ASTM D240 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter.

Product Advantages

1. Adopting semiconductor refrigeration to decide the refrigerating capacity according to the calorific value,the instrument can automatically adjust water temperature and keep water in a relative constant temperature range,realize the continuously and long time test requirement,and make sure the test result is correct.

2. Using USB port,convenient to connect.One computer can control many sets of Oxygen Bomb Calorimeter.

3. With a electronic measuring cup itself,no need to weigh the water by manual,it can measure the water volume automatically,the repetitive error<0.4g.

4. Automatically detecting the resistance of ignition filament,automatically checking the installing condition of ignition filament before test.

5. Standard pipeline design,vastly shortening the pipeline,and more reasonable pipeline design to ensure more precision of test results.

6. Adopting professional discharge water ports,more convenient and fast when the instrument drains away water or change the water.

7. The electronic balance with communication function to share the data by the internet.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Total power consumption	≤0.2KW
Measuring temperature range	5℃~35℃
Temperature resolution	0.0001℃
RSD(Relative standard deviation)	≤0.1%
Test time	12mins
Heat capacity	(9000~11000)J/K
Measuring range	5MJ/kg~40MJ/kg
Measuring error	±60J/g (Benzoic acid)
Accuracy	Better than GB/T213-2008 " The determination method of coal calorific value"

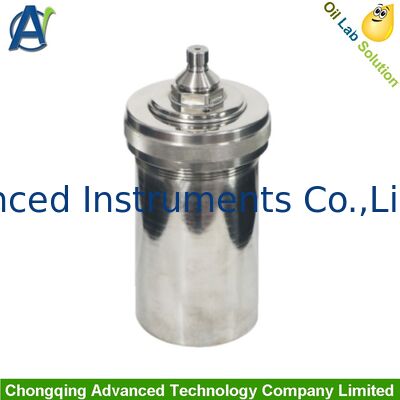

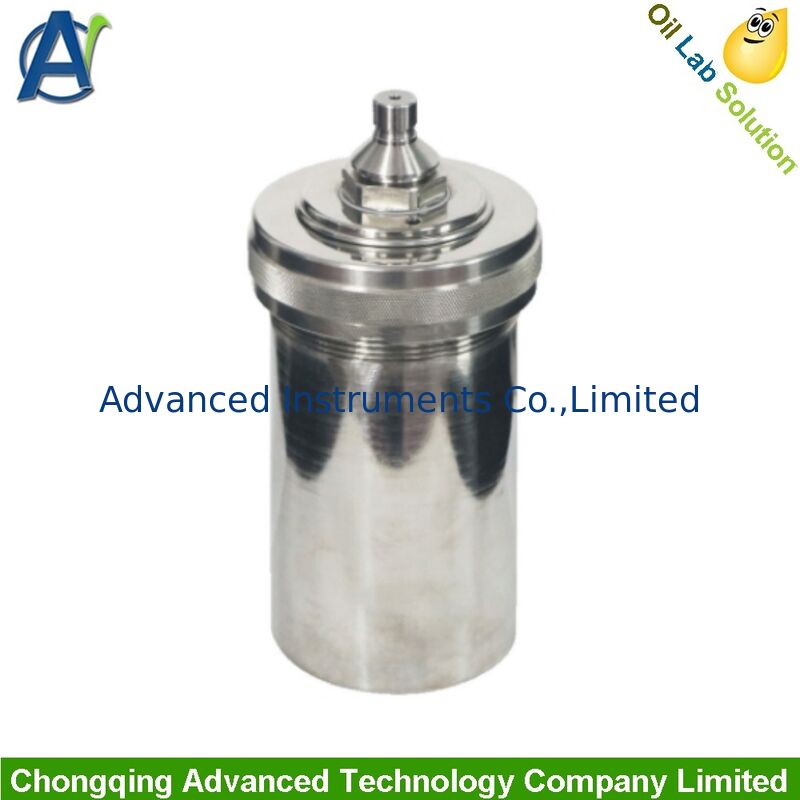

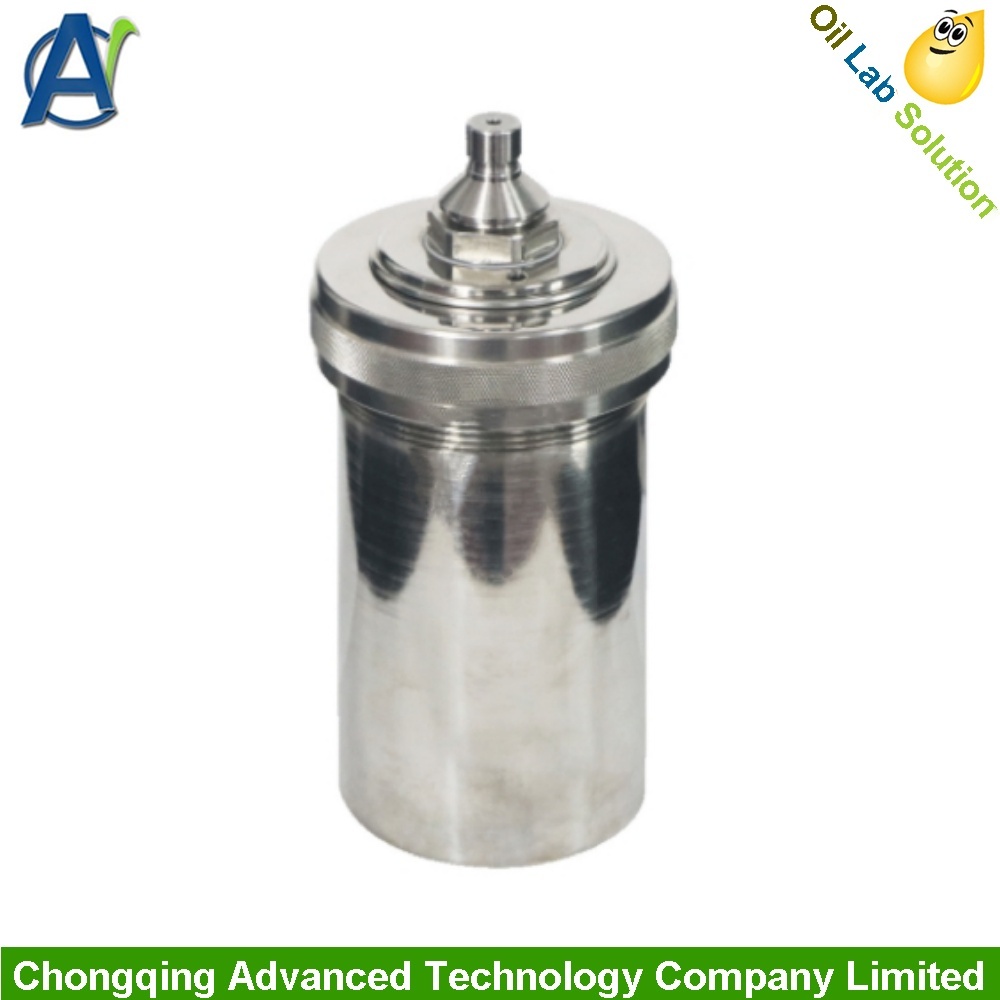

Pressure endurance of oxygen bomb	20 MPa
Working environment	Temperature:(15~28)℃; Relative humidity:≤85%
Net Weight	55KG
Outline Dimension	650mm×450mm×450mm

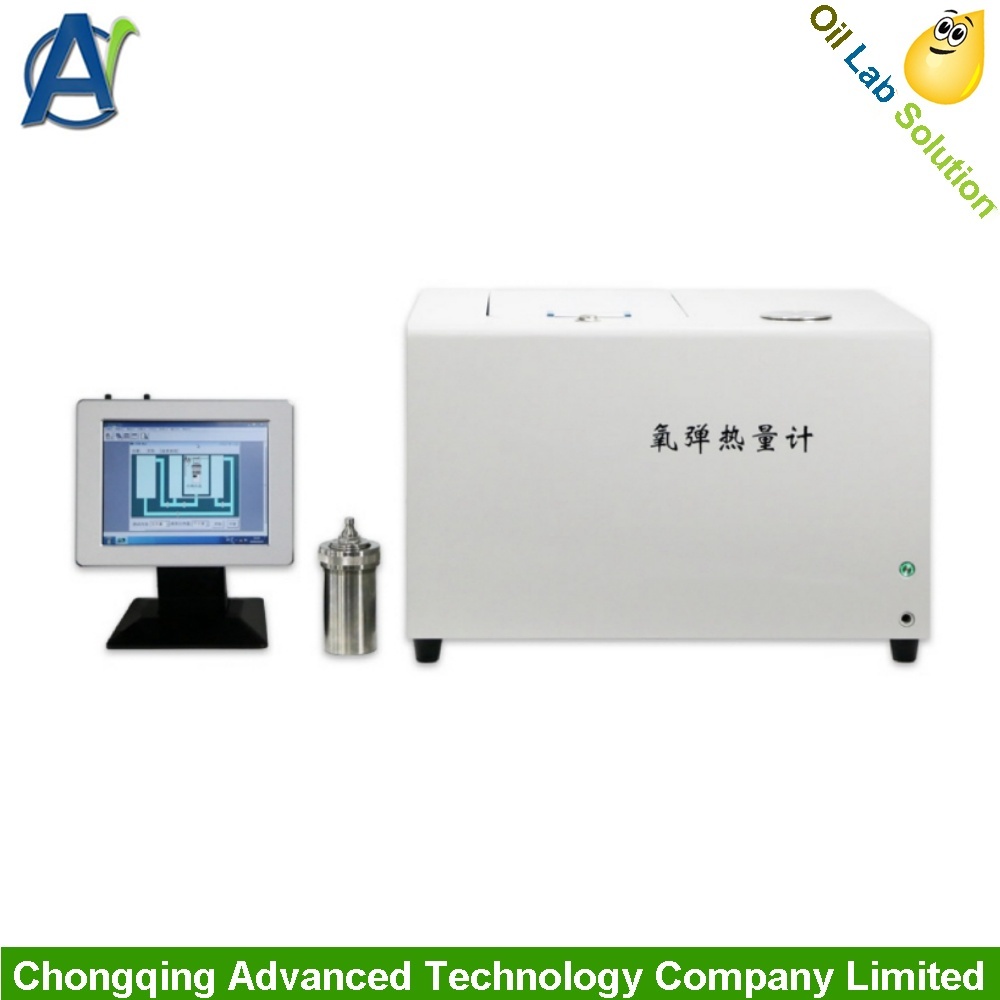

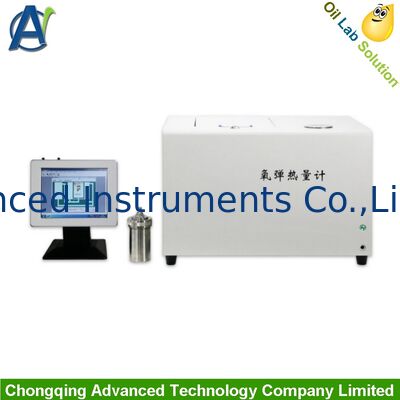

ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter 1

FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
