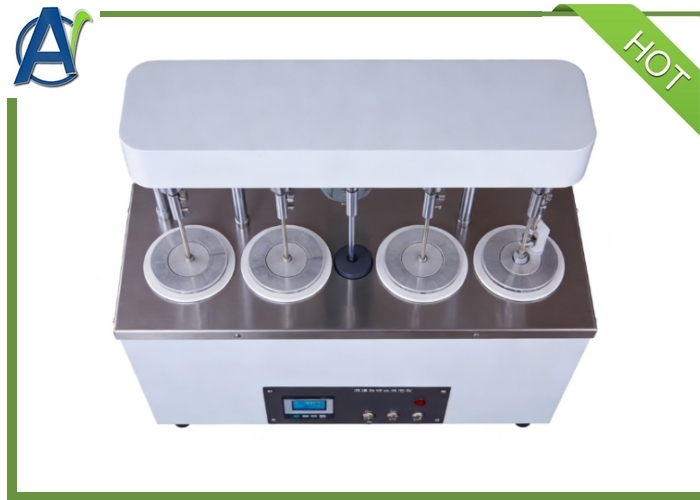

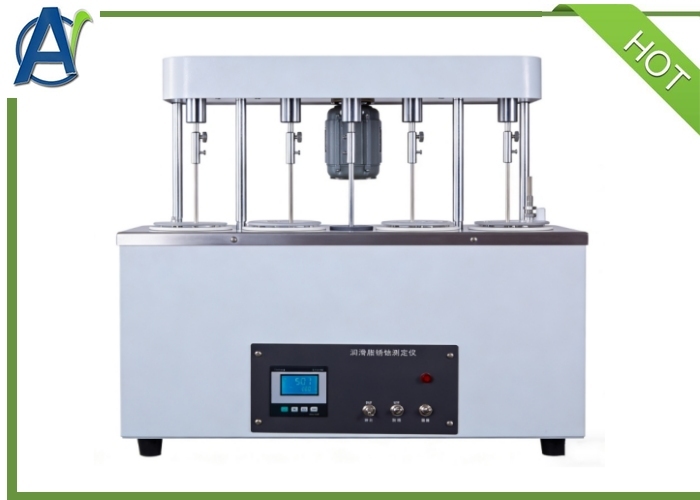

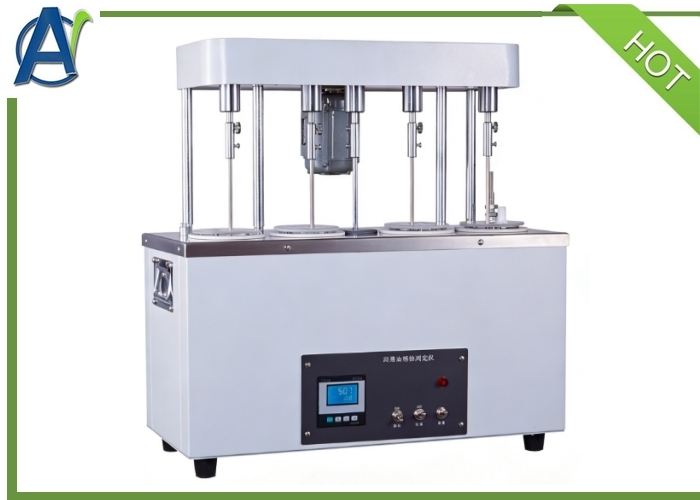

ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D665
Model Number:	AIC-11143

Minimum Order Quantity:	1 set
Price:	US$3000-4000/set
Packaging Details:	Plywood Case
Delivery Time:	20days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	50Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D665	Warranty:	1full Year
Transport Package:	Plywood Case	Trandmark:	Advanced Instruments
Operating Power Supply:	AC220 V±10V, 50Hz	Total Power Consumption:	≤1800W
Temperature Range:	Room Temp.~100℃	Temperature Control Accuracy:	±1℃
Temperature Display:	Digital Display	Temperature Control Heating Power:	1600W
Highlight:	ASTM D665 , Rust-Preventing Characteristic Analyzer , Lubricating Oils Corrosion Tester

General Introduction

This Lubricating Oils Rust-Preventing Characteristics Analyzer is designed and made as per standards GB/T 11143 Standard test method for rust-preventing characteristics of inhibited mineral oil in the presence of water and ASTM D665 Standard Test Method for Rust-Prevent Characteristics of Inhibited Mineral Oil in the Presence of Water. It is suitable to evaluate rust-preventing characteristics of inhibited mineral oil, especially the rust-preventing characteristics of the turbine oil to iron parts in the presence of water. It is also suitable to evaluate rust-preventing ability of other oils, such as hydraulic oil, circulation oil, as well as liquid, whose gravity is greater than water

Product Advantages

1.This Lubricating Oils Rust-Preventing Characteristics Testing instrument is used to determine the rust-preventing performance of inhibited mineral oils in the presence of water.

2.The Rust-Preventing Characteristics Tester has functions such as temperature control, timing, and alarm upon completion.

3.It employs a digital temperature controller, heater, and electric stirrer to form a thermostatic bath with uniform temperature distribution.

4.It features four sample test holes, allowing simultaneous testing of four samples, resulting in high testing efficiency.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Total power consumption	≤1800W
Temperature range	Room temp.~100℃
Temperature control accuracy	±1℃
Temperature sensor	RTD, Pt100
Temperature display	Digital display
Timing range	1min~24hour, can be set at will
Time display	Digital display
Temperature control heating power	1600w
Rotate speed of stirring motor	1400RPM
Sample stir rate	(1000±50)r/min
Sample testing positions	Four positions
Ambient temperature	(15~35)℃
Relative humidity	≤85%
Dimension	580mm×320mm×600mm

ASTM D665 Lubricating Oils Corrosion and Rust-Preventing Characteristic Analyzer 1

FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
