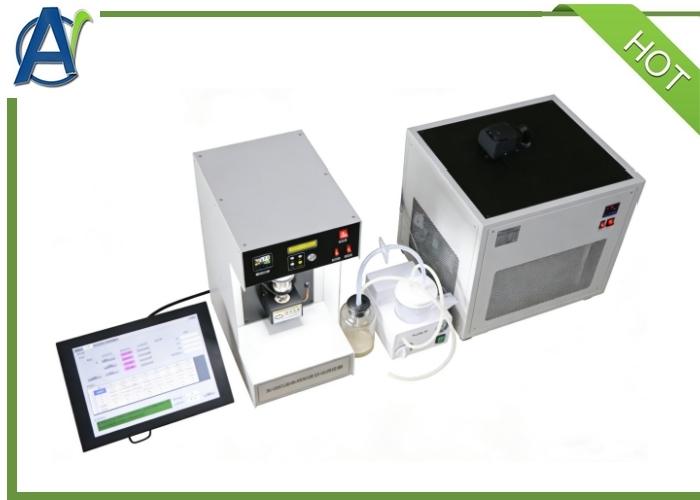

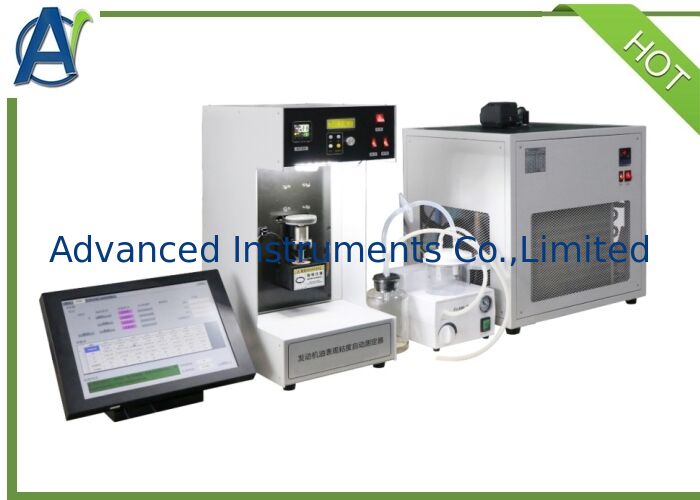

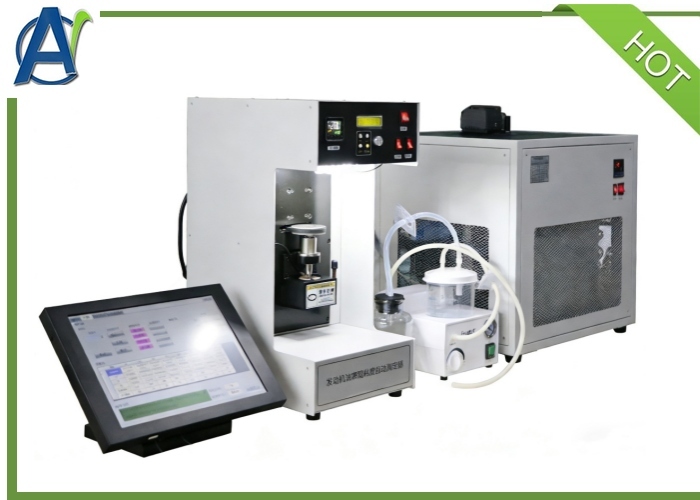

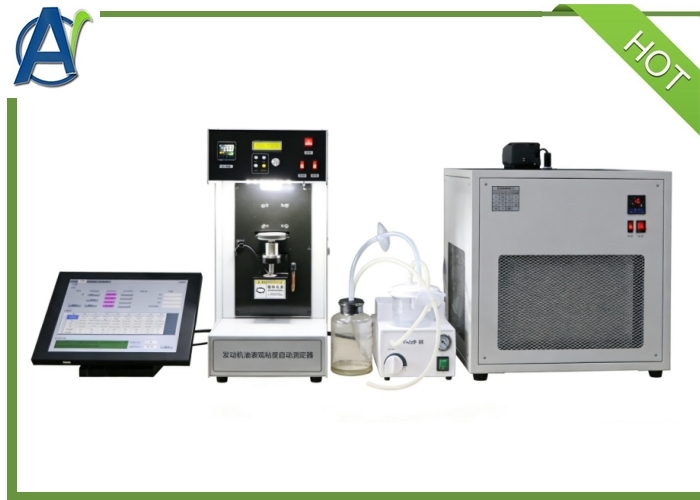

ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine

ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine
ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ASTM D5293
Model Number: AIC-6538
Minimum Order Quantity: 1 set
Price: US$10000-15000/set
Packaging Details: Plywood Case
Delivery Time: 20days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets Per Month
Get Best Price Contact Now
Test Standard: ASTM D5293 Power Supply: AC220 V±10V, 50Hz
Maximum Power Consumption: 2KW Temperature Measurement Rang: (-50~100)℃
Temperature Measurement Accuracy: ±0.5℃ Refrigeration Range: -60℃~Ambient
Temperature Control Accuracy: ±0.05℃ Measurement Range: (1200~27000)mPa.s
Heating Power: 800W Dimensions Of Instrument Host: 420mm×300mm×620mm
Dimensions Of Cold Bath: 500mm×530mm×615mm
Highlight:

ASTM D5293

,

Automatic Apparent Viscosity Tester of Engine Oils

,

CCS(Cold-Cranking Simulator)Testing machine

General Introduction



This Automatic Apparent Viscosity Tester of Engine Oils is designed and manufactured according to the standards China GB/T 6538 Determination of apparent viscosity of engine oils using the cold-cranking simulator (CCS method) and American ASTM D5293.At the temperature range: -35℃∼-5℃,the interval 5℃ temperature condition , and the viscosity range:1500mPa•s∼27000mPa•s to detect the apparent viscosity of the apparent oils.



Product Advantages



1.The automatic measurement system of the instrument includes various operations required for experiments such as injection, temperature control, detection, calculation, storage, and printing, and automatically detects the rotation speed, and the viscosity results can be automatically generated according to the rotation speed without manual calculation.

2.The Automatic Apparent Viscosity Tester is a split structure, which avoids the impact of vibration on the experiment due to the vibration generated by the instrument working.

3.The control system of the CCS Automatic Apparent Viscosity Testing instrument adopts industrial computer and WINDOWS operating system. It has multiple interfaces such as USB, network, WIFI, etc. The PC-based CPU has fast data processing speed, stable work, and strong versatility.

4.The Automatic Apparent Viscosity Testing Machine is equipped with an advanced 10-inch full-color, high-performance, high-definition TFT LCD touch screen, which is sensitive to touch and reliable in quality. All the operation and data display of the instrument can be realized on the touch screen, and the touch screen adopts a humanized layout design, and the functions are clear at a glance.

5. Imported Omron temperature controller controls stator temperature, the temperature is accurate, convenient and fast.

6.The CCS Cold Cranking Simulator test machine adopts a stacked refrigeration system with imported compressor andimported refrigerant, which can quickly reduce the sample temperature to the temperature required by the experiment. Long-term use reliability exceeds that of semiconductor refrigeration.
7. Improved rotor, low torque test state, high repeatability.

8.The software has 7 built-in B-value curves, so that each different temperature test point has a corresponding temperature curve. Compared with a set of B-value curve schemes of peers, the accuracy is higher. Moreover, customers can also calibrate the required B-value curve according to the temperature point according to the wear and tear of the machine in the later stage.

9.The instrument's transmuter stator system does not need to be cleaned with special solvents.

10.The cleaning system of the instrument has a heating function, which increases the temperature of the area to be cleaned after the experiment to improve the efficiency of cleaning.

ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine 0


The Technical Specifications and Parameters



Power supply

AC(220±10%)V, 50Hz
Maximum power consumption

2kw
Temperature measurement range

(-50~100)℃
Temperature measurement accuracy

±0.5℃
Refrigeration range

-60℃~Ambient
Temperature control accuracy

±0.05℃
Measurement range (1200~27000)mPa.s
Heating power 800w
Usage environment Ambient temperature (-40~30) °C,
Relative humidity: ≤80%
Dimension

550mm×800mm×1000mm
Net weight

Instrument host:420mm×300mm×620mm;
Cold bath: 500mm×530mm×615mm



ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine 1



FAQ

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
