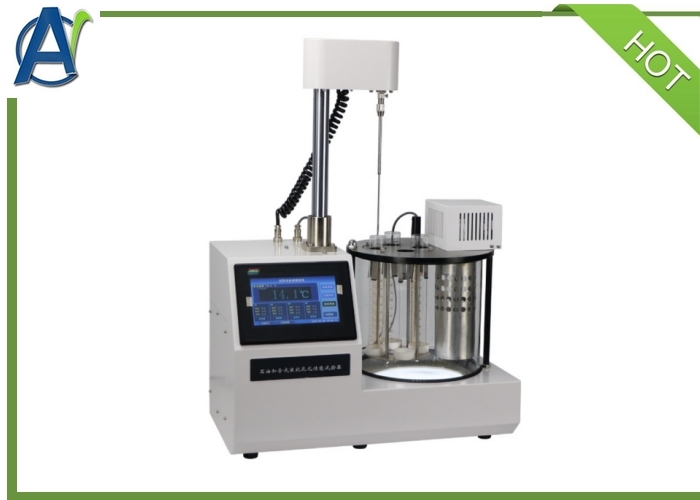

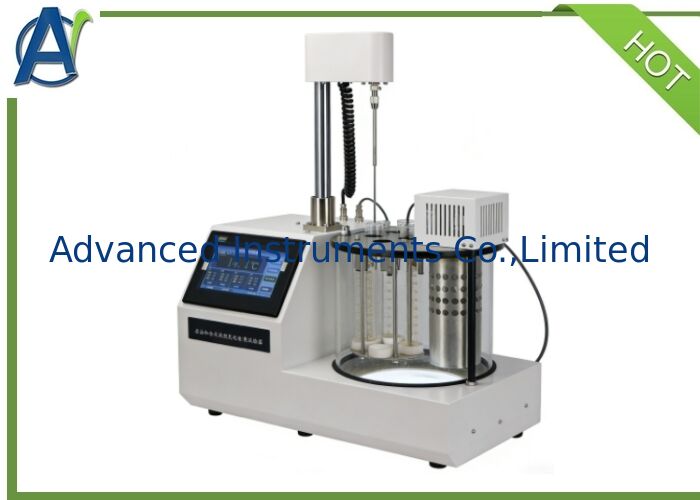

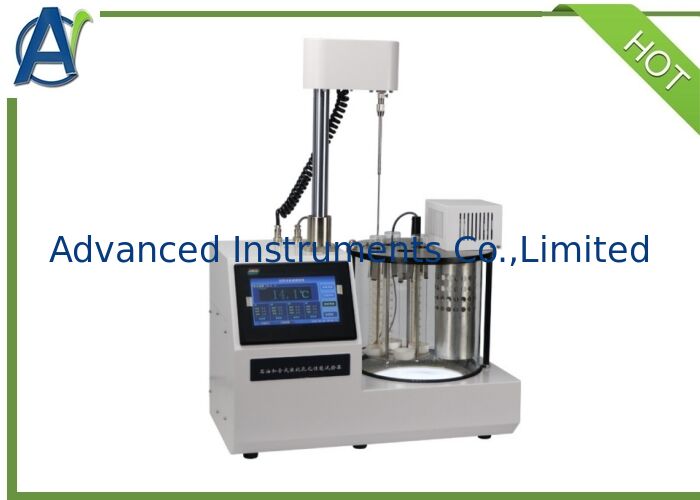

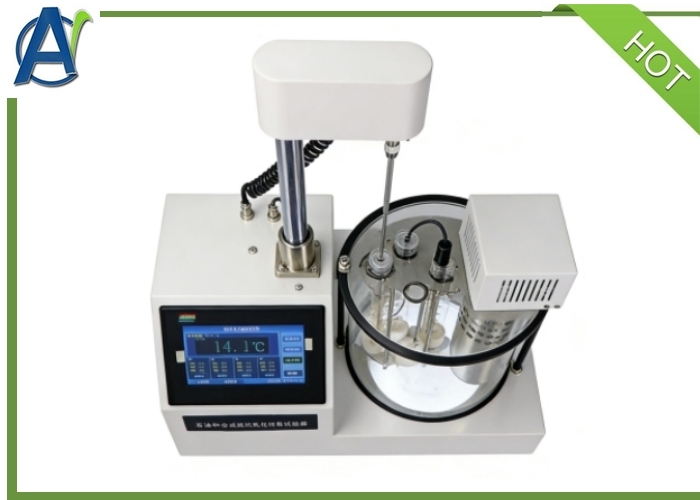

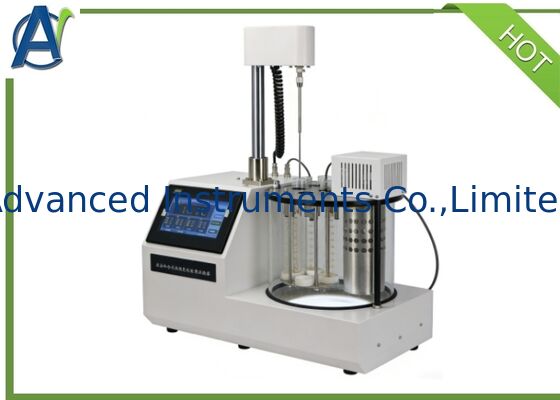

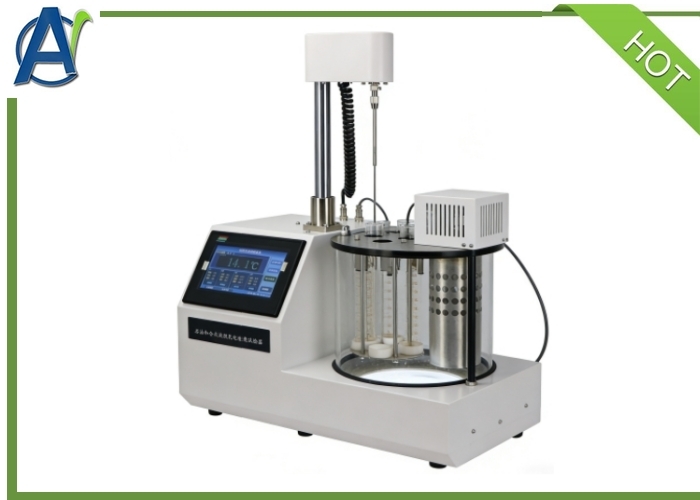

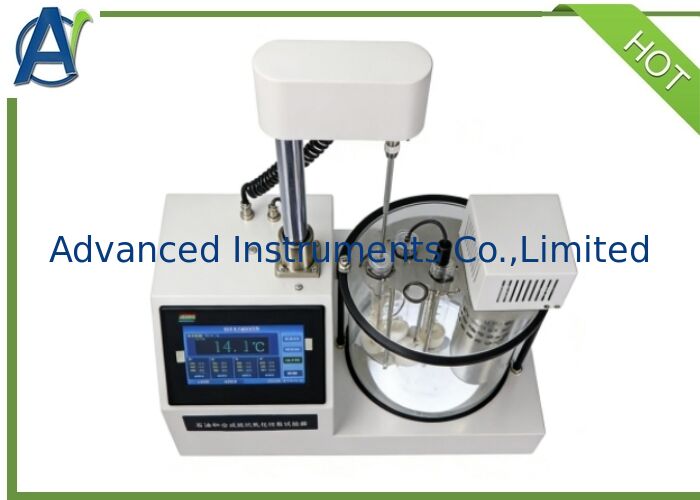

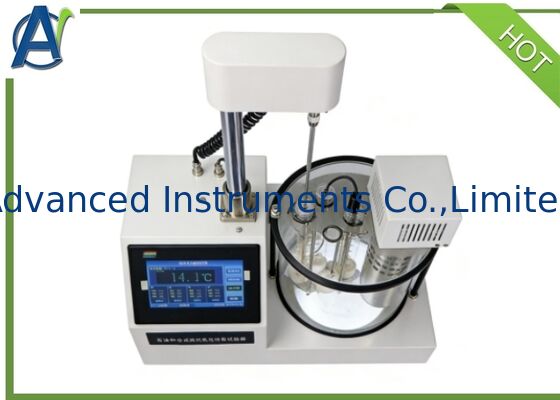

ASTM D1401 Water Separability Tester Automatic Demulsibility Characteristics Testing Instrument of Petroleum Oils and Synthetic Fluids

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ISO6614
Model Number:	AIC-7305A

Minimum Order Quantity:	1 set
Price:	US$3000-4000/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	50Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D1401	Operating Power Supply:	AC(220±10%)V/50Hz
Maximum Power Consumption:	1500w	Temperature Range:	(Room Temp.~100)℃
Temperature Control Accuracy:	±0.1℃	Data Storage:	350 Groups Test Data
Stirring Time:	0-100min	Timing:	0~99.9h
Testing Hole:	4 Samples	Ambient Temperature:	(5~40)℃
Relative Humidity:	≤85％
Highlight:	ASTM D1401 , Water Separability Tester , Automatic Demulsibility Characteristics Testing Instrument

General Introduction

This Automatic Demulsibility Characteristics Testing Instrument is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics, GB/T7605 Determination of demulsibility characteristics of turbine oils in service and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.

Product Advantages

1.Features a 5-inch high-definition color touchscreen with microcomputer control, providing clear interface display and simple operation.

2.The instrument can simultaneously separate four samples.

3.Adopting PID temperature control technology ensures high temperature control accuracy.

4.The stirring device automatically raises and lowers, with automatic timing for stirring and stopping. Once set, it can automatically complete four-channel testing. Users only need to manually rotate the turntable and observe the experimental results.

5.Using PT100 temperature sensor provides high temperature measurement accuracy, reaching ±0.1℃.

6.Parameters such as temperature control value and fine-tuning temperature value can be set, and the instrument can save these settings after completion.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Maximum power consumption	1500w
Temperature range	(Room temp.∼100)℃
Temperature control accuracy	±0.1℃
Data storage	350 groups test data
Stirring time	(0~100)min
Timing	(0~99.9)h
Testing hole	4 samples
Relative humidity	≤85%
Ambient temperature	(5∼40)℃
Dimension	520mm×330mm×550mm
Net weight	23kg

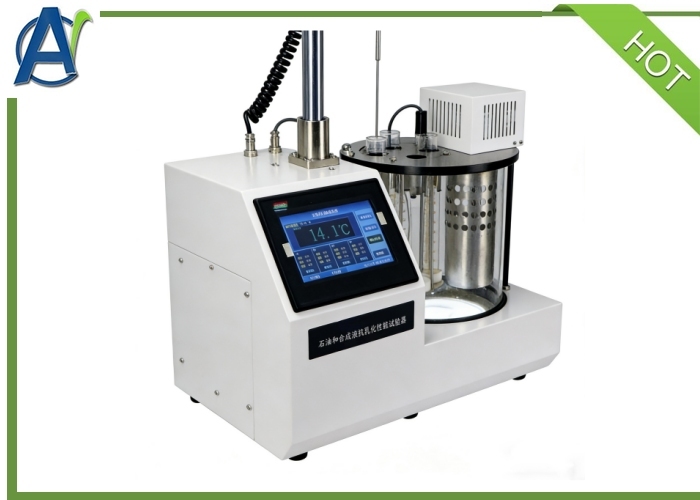

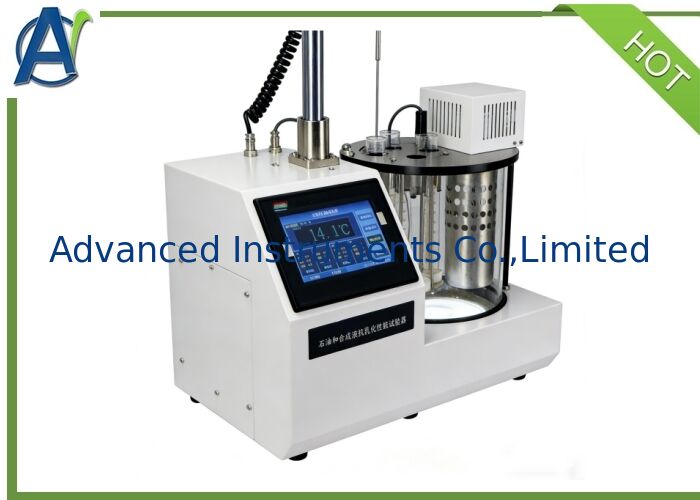

ASTM D1401 Water Separability Tester Automatic Demulsibility Characteristics Testing Instrument of Petroleum Oils and Synthetic Fluids 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
