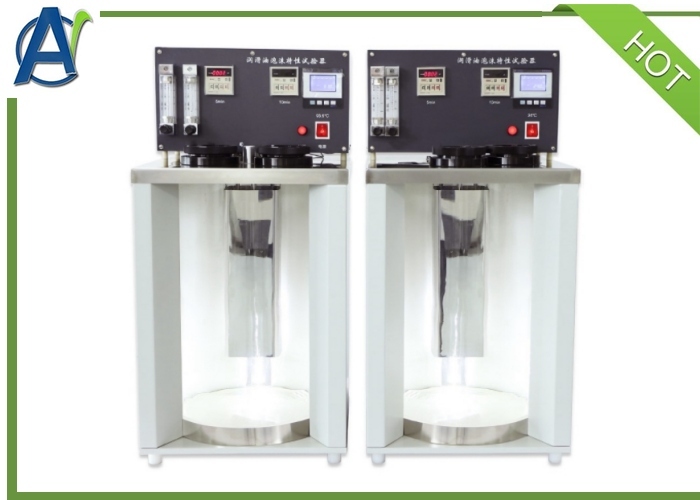

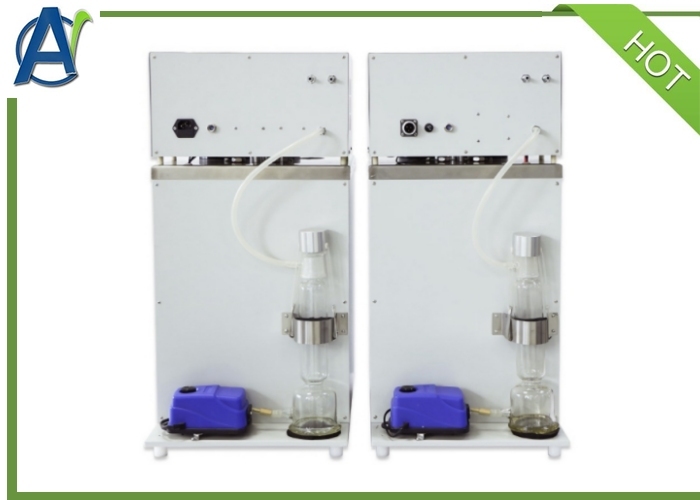

ASTM D892 Foam Characteristics Apparatus of Lubricating Oils

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ISO9001
Model Number:	AIC-892C

Minimum Order Quantity:	1 set
Price:	US$2000-3000/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	50Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D892	Operating Power Supply:	AC(220±10%)V/50Hz
Total Power Consumption:	≤2700W	Air Flow Rate:	(94±5) Ml/Min, Adjustable
Temperature Control Accuracy:	±0.5℃	Timer:	5min;10min
Ambient Temperature:	15°C~35°C	Relative Humidity:	≤85%
Dimiension Of Main Unit (Composite):	690mm×460mm×700mm	Dimiension Of Cooler:	400mm×450mm×300mm
Net Weight:	48kg
Highlight:	ASTM D892 , Foam Characteristics Apparatus of Lubricating Oils , Foam Characteristics Tester Manufacture

General Introduction

The Foam Characteristics Apparatus is designed and made as per standards GB/T12579 Determination of foaming characteristics of lubricating oils and ASTM D 892 Standard Test Method for Foaming Characteristics of Lubricating Oils. It is used to determine the foaming tendency and stability of lubricating oils.

Product Advantages

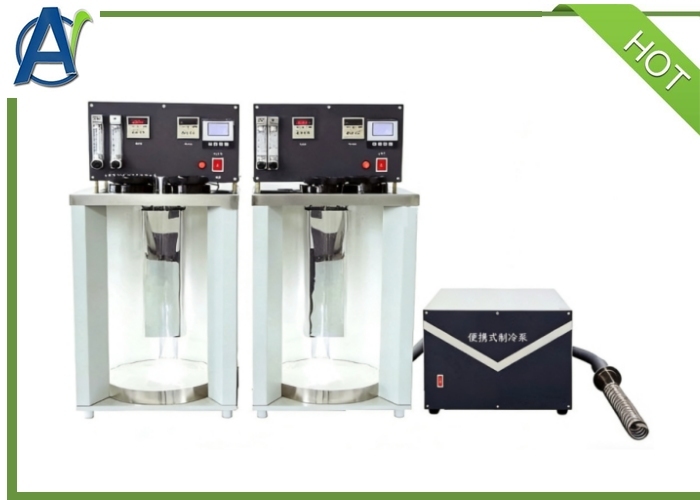

1.This Foam Characteristics Apparatus consists of three parts: a low-temperature thermostatic section and its control section, a high-temperature thermostatic section and its control section, and the low-temperature thermostatic section is equipped with a portable refrigerator matched to it.

2.After setting the instrument's thermostatic point, the instrument will automatically enter the thermostatic state without further adjustments. The temperature controller also has a parameter correction function.

3.This Foam Characteristics Apparatus has an automatic timing reminder function.

4.It uses a high-precision LCD temperature controller and sensor, with accurate temperature control and a precision of ±0.5℃.

5.The gas flow control system is composed of an oxygen pump, rotor flowmeter, etc., with reliable performance.

6.Foam test equipment includes: a cylinder with a capacity of 1000ml; a stopper: rubber stopper matched to the cylinder's circular top opening; a diffuser head:selected ceramic ball structure; ensuring data accuracy.

7.The bottom of the instrument is equipped with an LED light strip that illuminates the test section for easy observation.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Total power consumption	≤2700W
Air flow rate	(94±5)ml/min,adjustable
Temperature control range for high temperature bath	(Room temp.~99.9)℃
Temperature control range for low temperature bath	(5~99.9)℃
Temperature control accuracy	±0.5℃
Timer	5min and 10min,accurate to second
Ambient temperature	(15~35)℃
Relative humidity	≤85%
Dimension	Main unit:690mm×460mm×700mm Cooler:400mm×450mm×300mm
Net weight	48kg

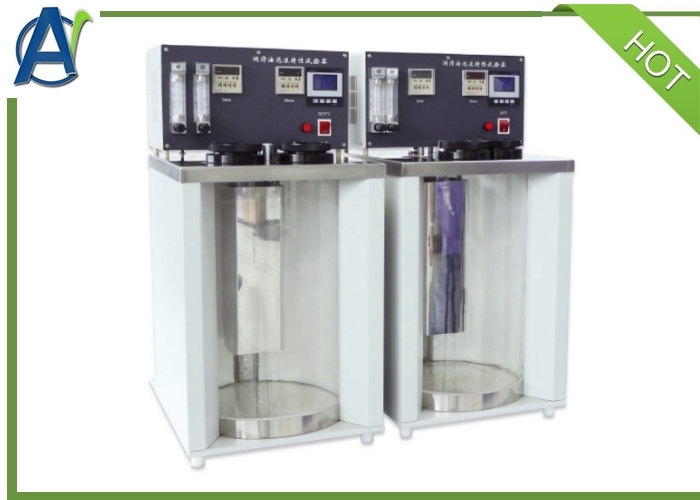

ASTM D892 Foam Characteristics Apparatus of Lubricating Oils 1

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
