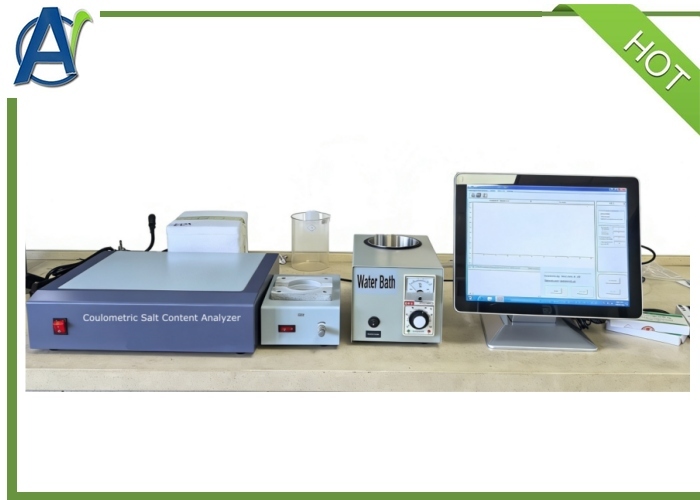

ASTM D3230 Petroleum Products Salt Content in Crude Oil Tester (Microcoulomb Method)

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D3230
Model Number:	AIC-0536

Minimum Order Quantity:	1 set
Price:	US$10000-15000/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	20Sets Per Month

Get Best Price Contact Now

Test Standard:	ASTM D3230	Power Supply:	AC220 V±10V, 50 Hz±0.55Hz
Test Method:	Coulometric Titration	Display Unit:	Ngnacl/UL
Sensitivity:	0.1ngnacl	Measuring Range:	(0.2~10000)Ngnacl/UL
Capacity Of Titration Cell:	145ml	Testing Time:	Less Than 5mins Per Sample
Ambient Temperature:	10~40℃	Relative Humidity:	≤85%
Maximum Power Consumption:	300W	Net Weight:	8kg
Highlight:	ASTM D3230 , Salt Content in Crude Oil Tester , Microcoulomb Method Salt Content Analyzer

General Introduction

This Coulometric Salt Content in Oil Analyzer uses the micro-coulometry technology for analysis ,it's the latest products by the computer control . It applies to determine salt content in crude petroleum and products,heavy oil , residual oil , and various industrial water or drainage water,and applies to determine inorganic chloride in above samples. Instrument has a stable and reliable performance , easy operation, high precision , repeatability and good features.

Standards: SY/T0536-2008 Crude petroleum and products--Determination of salt content Coulometry

Product Advantages

1. Micro-coulometry technology. IPC equipped. Windows OS. Easy to operate.

2. The titration cell and filtering units are both specially designed. It has automatic determination and good performance.

3. Self-developed operation and test software. It has good accuracy and high precision.

4. Wide application scope. High sensitivity and good adaptation.

5. It needs less sample. Only 1g for each test. The testing time is short. Only 5 minutes for each sample.

The Technical Specifications and Parameters

Titration method	Coulometric titration
End point detection	Automatically judge the end point by the indication—reference electrode
Display unit	ngNaCl/ul
Sensitivity	0.1ngNaCl/ul
Measuring range	(0.2~10000)ngNaCl/ul
Capacity of titration cell	145ml
Testing time	Less than 5mins per sample (The time use for sample processing is not included.)
Ambient temperature	(10~40)℃
Relative humidity	≤85%
Power supply	AC 220V±10V,50Hz±0.5Hz
Maximum power consumption	300w
Dimension	350mm×280mm×178mm (Computer and printer are not included)
Net weight	8kg (Computer and printer are not included)

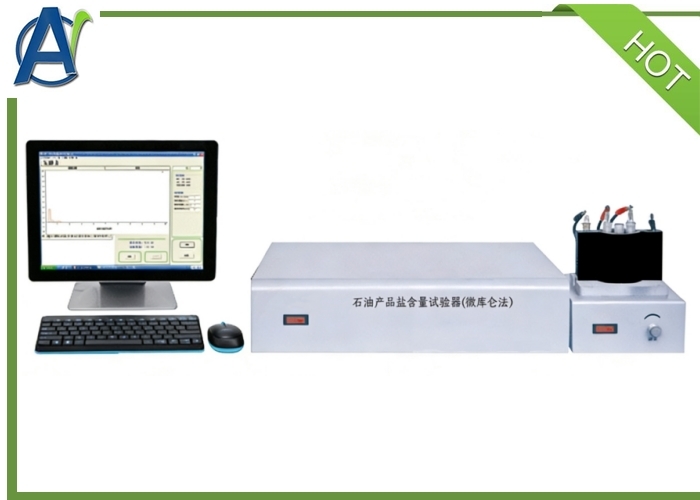

ASTM D3230 Petroleum Products Salt Content in Crude Oil Tester (Microcoulomb Method) 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
