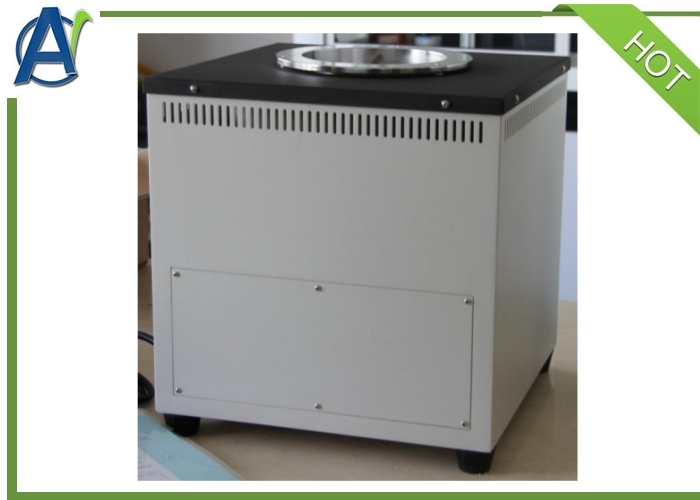

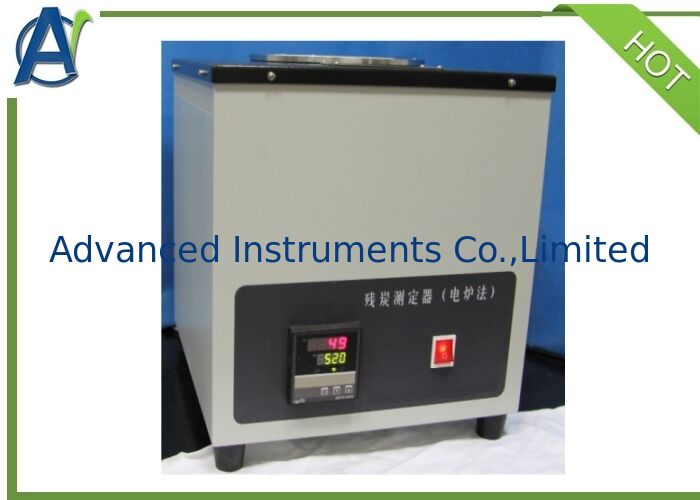

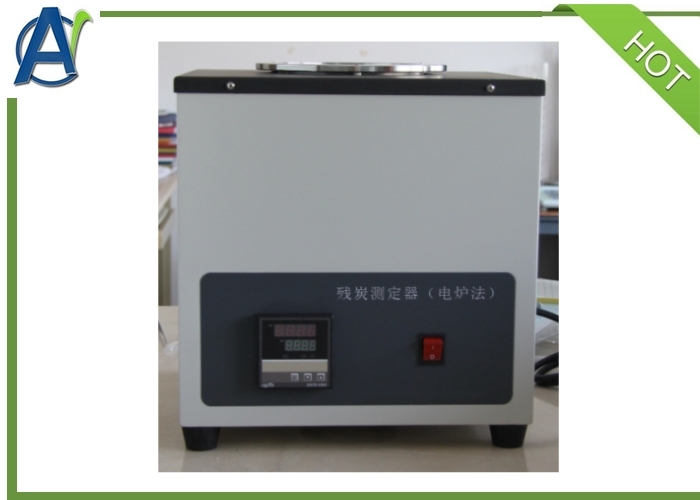

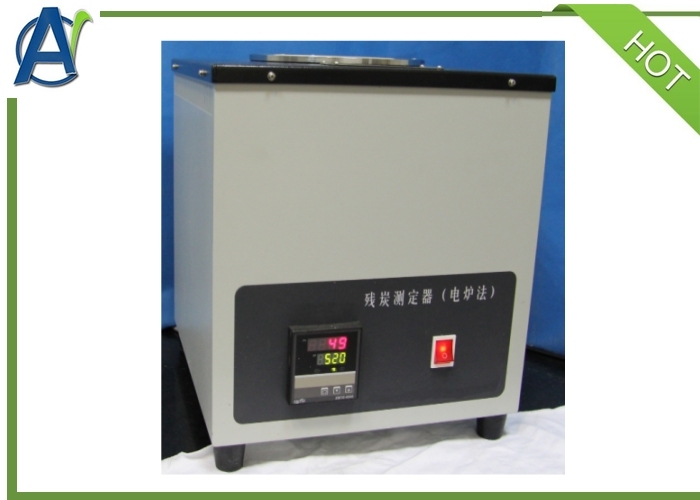

SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils

SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils
SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: SH/T 0170
Model Number: AIC-30011
Minimum Order Quantity: 1 set
Price: US$1000-2000/set
Packaging Details: Plywood Case
Delivery Time: 15days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets Per Month
Get Best Price Contact Now
Test Standard: SH/T 0170 Power Supply: AC220 V±10%, 50 Hz
Power Consumption: ≤1300W Heated Form: Electric Furnace
Temperature Control Range: 0~520℃ Temperature Control Accuracy: ±5℃

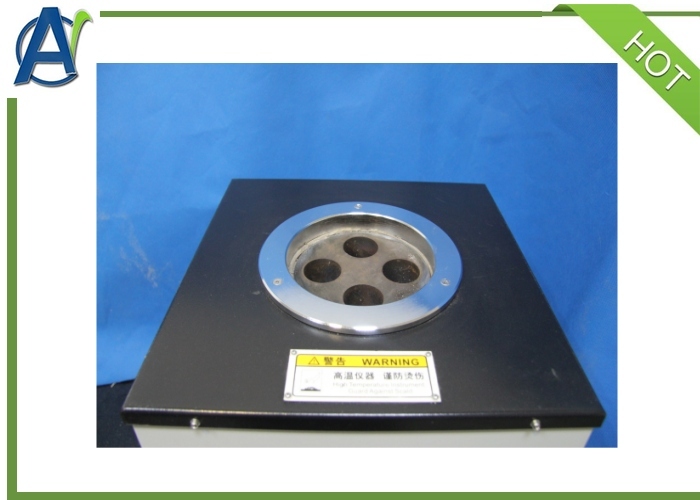

Test Bath Form: A Furnace Has Four Holes
Highlight:

SH/T 0170

,

Carbon Residue Tester(Electric Furnace Method)

,

Carbon Residue Testing Appratus

General Introduction

The Carbon Residue Tester (Electric Furnace Method) is designed and manufactured according to the requirements specified in the industry standard SH/T 0170 of the People's Republic of China, "Determination of Carbon Residue in Petroleum Products (Electric Furnace Method)". It is suitable for determining the carbon residue of lubricating oils, heavy liquid fuels, or other petroleum products using the test method specified in the SH/T 0170 standard.



Product Advantages
1.The Carbon Residue Testing Apparatus with Electric Furnace Method adopts desktop configuration. The heating furnace and controller are assembled to all-in-one machine. Small dimension and easy to use.

2.The max temperature of heating furnace can reach 520ºC. It adopts digital temperature controller. The temperature control accuracy can reach ±5ºC.

3.This Carbon Residue Determinator (Electric Furnace Method) can do four sample determinations concurrently. The test efficiency is high.

SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils 0


The Technical Specifications and Parameters



Power supply
AC (220 ±10%)V, 50 Hz
Total power consumption
≤1300W
Heated form
Electric furnace
Temperature control range
0~520ºC
Temperature control accuracy
±5ºC
Test bath form A furnace has four holes
Applicable environment Temperature: 15°C~35°C, Relative Humidity: ≤85%
Dimension 350mm×360mm×370mm
N.W 24KG



SH/T 0170 Carbon Residue Determinator (Electric Furnace Method) of Lubricating Oils 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
