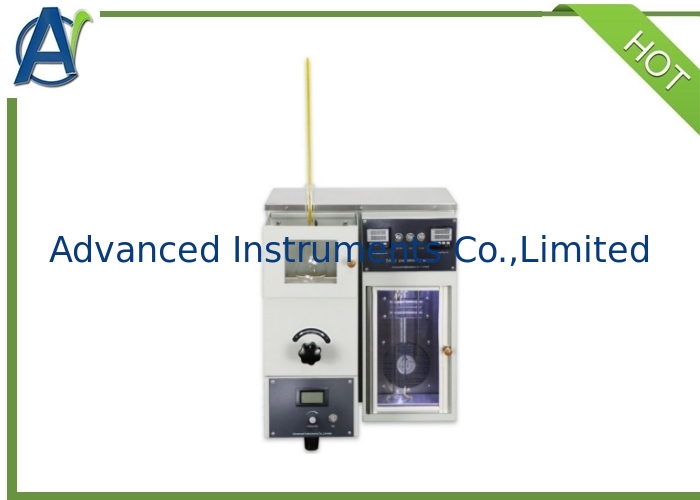

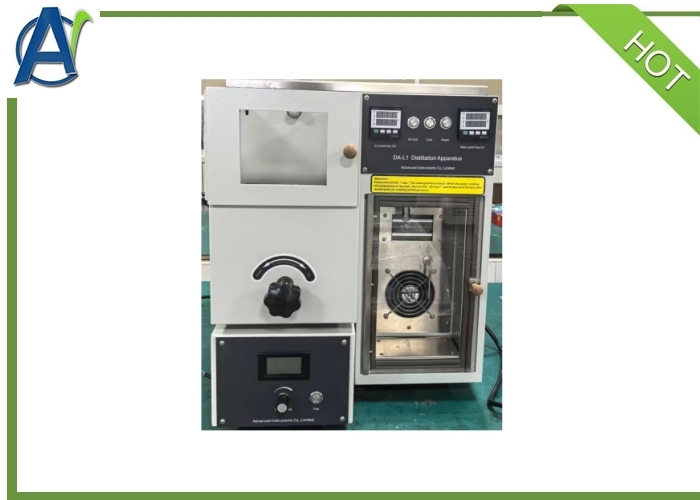

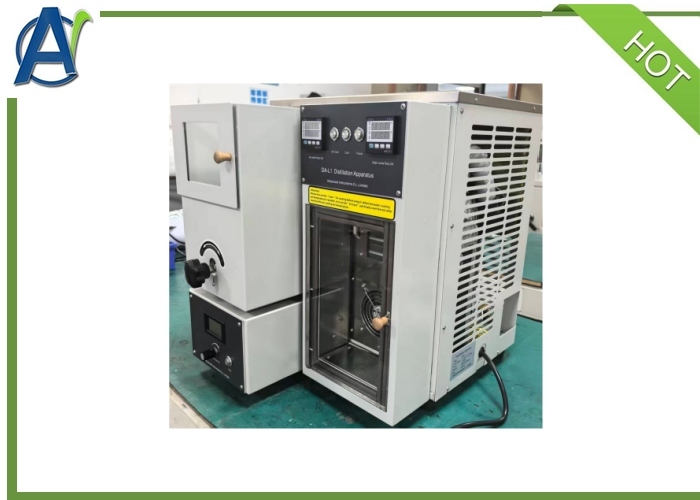

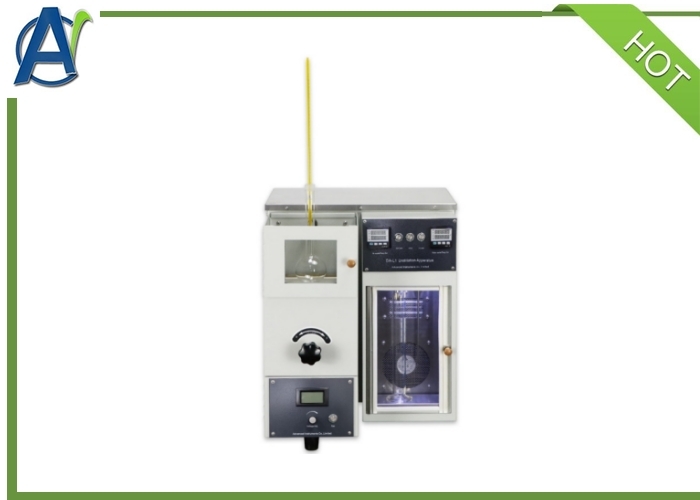

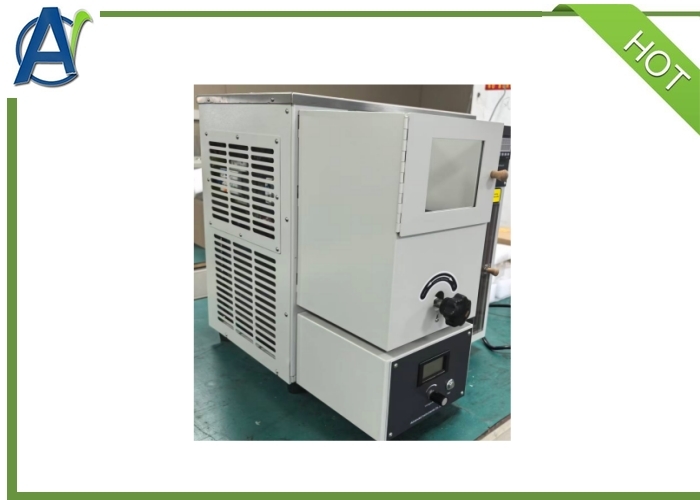

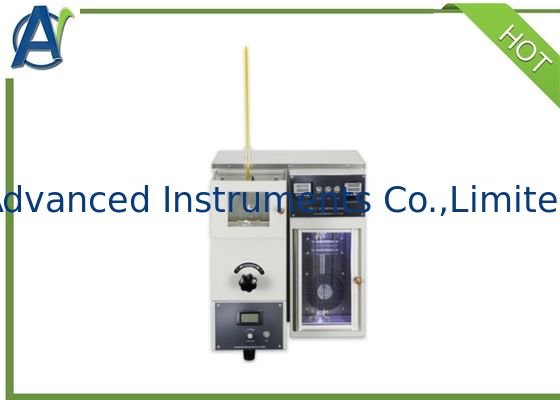

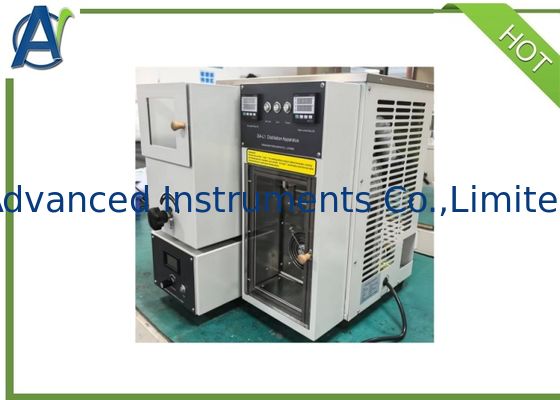

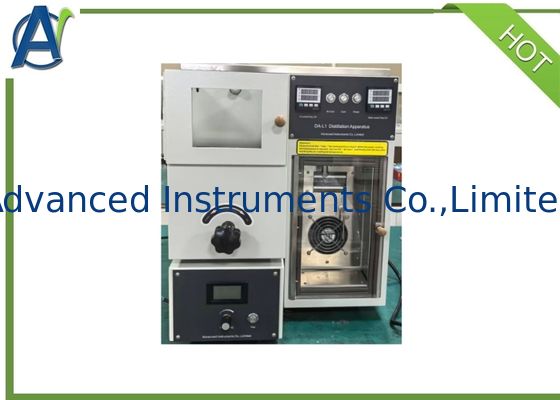

ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function

ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function
ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ISO9001
Model Number: DA-L1
Minimum Order Quantity: 1 set
Price: US$1500-3000/set
Packaging Details: Plywood Case
Delivery Time: 15days
Payment Terms: T/T, L/C, D/P
Supply Ability: 100Sets Per Month
Get Best Price Contact Now
Heating Power: 1300W Test Standard: ASTM D86,GB/T6536
Distillation Flask: 125ML Relative Humidity: ≤85%
Display: LED Power Supply: AC 220V±10%/50 Hz
Application: Gasoline, Jet Fuels, Naphtha, Diesel Oil Net Weight: 30kg
Highlight:

Single Unit Distillation Apparatus

,

Atmospheric Distillation Testing Equipment

,

Petroleum Products Distillation Instrument with Cooling Function


Product Description

The Low Temperture Distillation Apparaus is designed and made as per the National Standard of People's Republic of China GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products". This Petroleum Products Distillation Tester is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.


Product Advantages

1.The Hight Precision Distiller for Petroleum Product adopts a special heating furnace form without open flame to ensure the safety of the test.
2.The voltage regulation of the LCD voltmeter is adopted, and the heating power is continuously adjustable, which is clear and intuitive.
3. The opening heating room observation window and the rotating lifting heating electric furnace are safe to use and easy to operate.
4.Screw compressor refrigeration system, small size, fast cooling speed, bath temperature can be reduced from room temperature to 0°C in about 50 minutes.
5.The condensate water bath has a temperature control function, which can be set and adjusted arbitrarily within the range of 0°C~60°C, and the temperature in the bath is uniform to meet the requirements of the test.
6.The high-precision temperature controller and sensor configuration are used to make the temperature control accuracy of the condensate bath reach ±0.5°C.
7.Closed condensing system, using internal circulation mode, no need for water bath cooling to avoid leakage and freezing, safe and energy-saving.

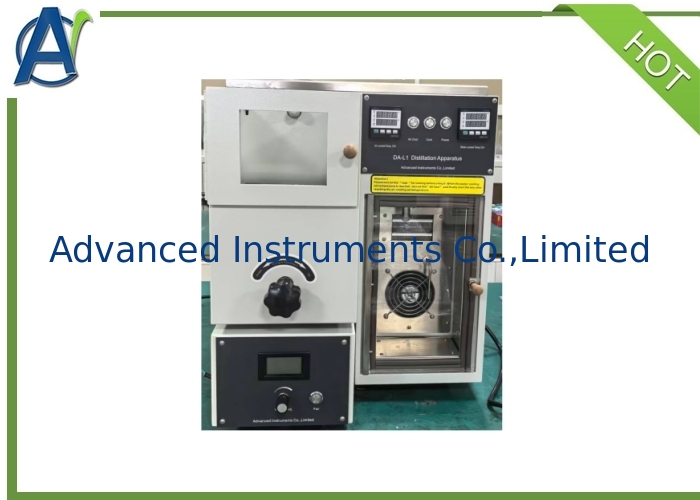

ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function 0

The Technical Specifications and Parameters



Operating power supply
AC(220±10%)V 50Hz
The power consumption of the whole machine ≤2300W
Electric furnace heating power 1300W
Graduated cylinder volume 100ml, index 1ml
Distillation flask 125 ml

Thermometer
Temperature range (-2~+300)°C and (-2~+400)°C,
index 1°C
Electric furnace movable plate
Distillation flask branch plate, the pore diameter is φ32mm, φ38mm, φ50mm, respectively
Condensation control and temperature control
(1) Temperature control range: (0~60)°C arbitrarily set;
(2) Temperature display method: LED digital display
Applicable environment

Temperature: 15°C~35°C, Relative Humidity: ≤85%
Dimensions 540mm×435mm×515mm (L×W×H)
Net Weight 30kg

ASTM D86 Low Temperture Petroleum Products Distillation Apparatus with Cooling Function 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
