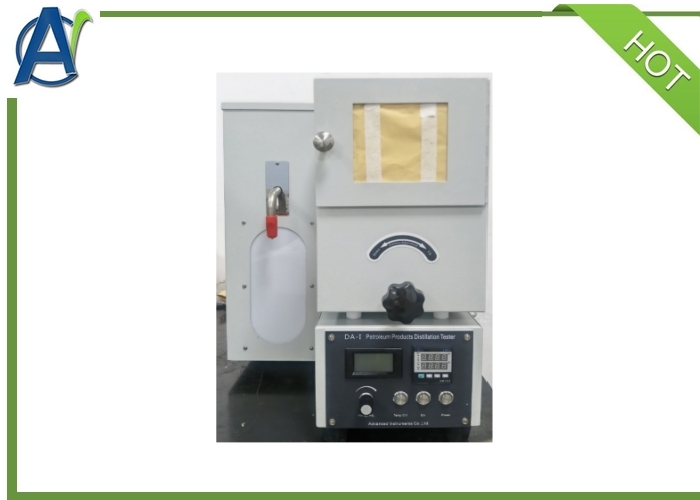

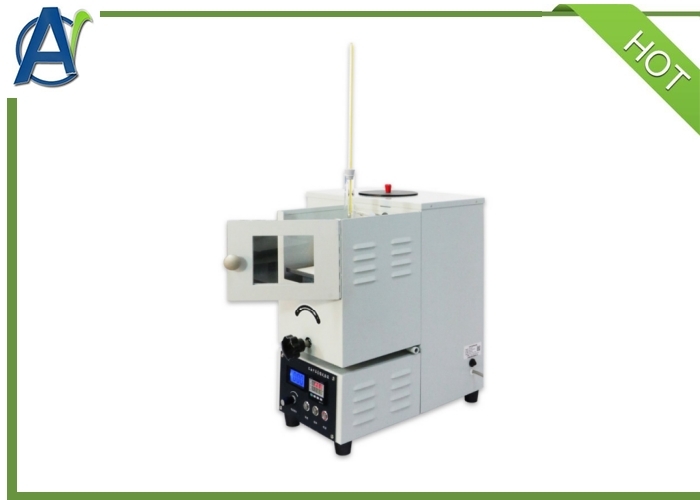

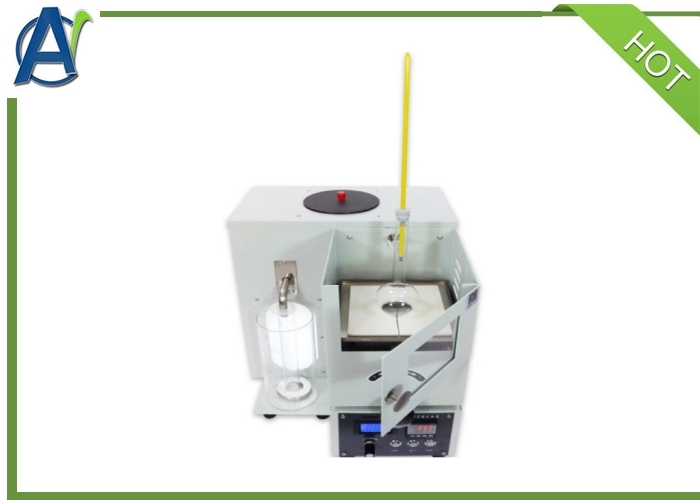

ASTM D86 Petroleum Products Distillation Tester

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ISO9001
Model Number:	DA-I

Minimum Order Quantity:	1 set
Price:	US$1000-2000/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	100Sets Per Month

Get Best Price Contact Now

Max. Heating Power:	2000W	Test Standard:	ASTM D86,GB/T6536
Distillation Flask:	125ML	Relative Humidity:	<85%
Display:	LED	Power Supply:	AC 220V/50 Hz
Application:	Gasoline, Jet Fuels, Naphtha, Diesel Oil	Detection:	Distillation
Receiving Cylinder:	100ml. Scale Division 1 Ml	Temperature Controller Type:	Digital
Highlight:	Petroleum Product Distillation Apparaus , Petroleum Product Distillation Testing Equipment , Petroleum Product Distillation Instrument

Product Description

The Petroleum Products Distillation Test instrument is designed and made as per the National Standard of People's Republic of China GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products". This Petroleum Products Distillation Tester is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.

Product Advantages

1.This Petroleum Products Distillation Apparatus adopts a special heating furnace form without open flame to ensure the safety of the test.

2.The voltage regulation of the LCD voltmeter is adopted, and the heating power is continuously adjustable, which is clear and intuitive.

3. The lifting and lowering of the distillation flask is freely adjusted by the lifting adjustment device, which is convenient and flexible.

4.The condensate tube water bath has the function of temperature control, which can be arbitrarily set and adjusted within the range of (room temperature +10)°C~60°C, and the temperature in the bath is uniform to meet the requirements of the test.

5.The use of high-precision liquid crystal thermostat and sensor to make the temperature control accuracy reach ±0.5°C.

6.The stainless steel design structure of the 304 condensing tank is corrosion-resistant and has a long service life.

The Technical Specifications and Parameters

Operating power supply	AC(220±10%)V 50Hz
The power consumption of the whole machine	≤2000W
Graduated cylinder volume	100ml, index 1ml
Distillation flask	125ml
The water bath controls the temperature	(1) Temperature control range: (room temperature +10) °C~60°C arbitrarily set; (2) Temperature control accuracy: ±0.5°C
Applicable environment	Temperature: 15°C~35°C, Relative Humidity: ≤85%
Dimensions	460mm×400mm×550mm (L×W×H)
Net Weight	18.5kg

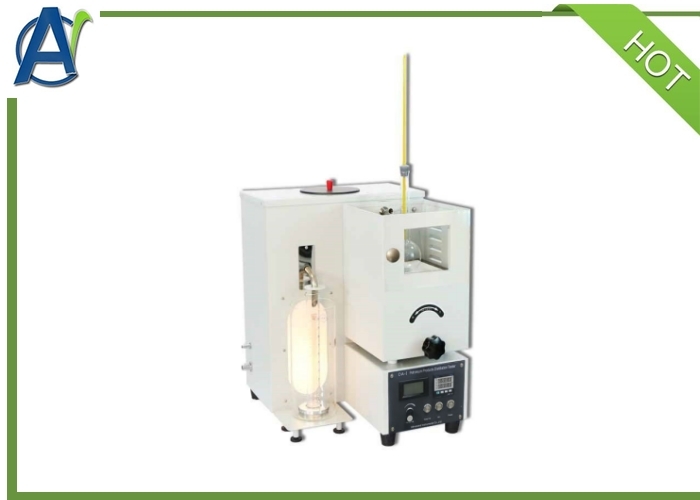

ASTM D86 Petroleum Products Distillation Tester 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
