ASTM D445 Automatic Calculation Kinematic Viscosity Tester with Built-in Printer for Petroleum Products

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D445
Model Number:	KV-I

Minimum Order Quantity:	1 set
Price:	US$2500-3500/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	100Sets Per Month

Get Best Price Contact Now

Power Supply:	AC(220±10%)V 50Hz	Temperature Controlling Accuracy:	±0.01 ℃
Cubage Of Water Bath:	20L	Test Standard:	ASTM D445
Display:	LCD	Net Weight:	42kg
Highlight:	Petroleum Product Kinematic Viscometer , Kinematic Viscosity Tester for Petroleum Product , Kinematic Viscometer for Petroleum Products

Product Description

This Petroleum Product Kinematic Viscosity Tester meets the requirements specified in the Industrial Standard SY/ T5651 Technical Conditions for Kinematic Viscosity Tester of Petroleum Products of the people's Republic of China. The instrument is suitable for measuring the kinematic viscosity of liquid petroleum products (Newtonian liquid) at a constant temperature according to the technical provisions of the people's Republic of China Standard GB/T265 Determination of Kinematic Viscosity of Petroleum Products and Dynamic Viscometer Algorithm; Applicable to the standard of the people's Republic of China GB/T1632.1 Plastics - Determination of Viscosity of Dilute Polymer Solutions Using Capillary Viscometer - Part 1: General Rules; GBT1632.5 technical requirements specified in Plastics - Determination of Viscosity of Dilute Polymer Solution Using Capillary Viscometer - Part 5: Thermoplastic Homopolymer and Copolymerized Polyester (TP); According to the provisions of T0619 Asphalt Kinematic Viscosity Test (Capillary Method) in the industrial standard of the people's Republic of China JTG E20-2011 Test Code for Asphalt and Asphalt Mixture in Highway Engineering, determine the kinematic viscosity of liquid petroleum asphalt at a constant temperature (≤ 100 ℃).

Main Characteristics

1.This Kinematic Viscometer adopts single chip microcomputer control and colored LCD display technology, with a high degree of automation and intelligence.

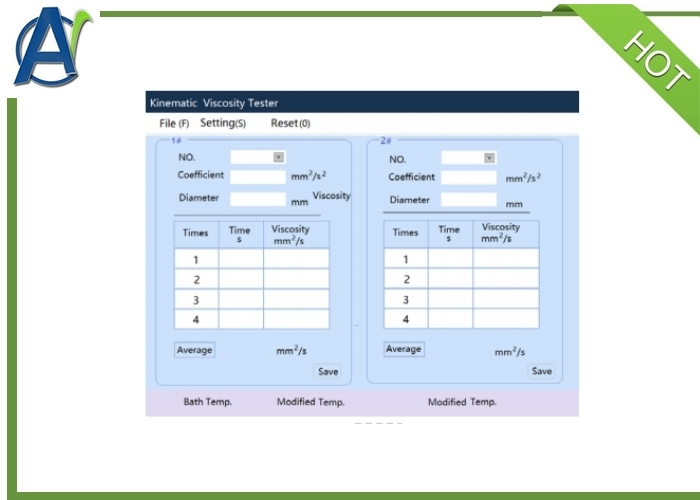

2. All operation such as intelligent signal sampling, data measurement, parameter calculation and result output, etc. are automatically completed by the instrument. The LCD screen has a full man-machine dialogue interface, which is very convenient to operate and use.
3. This Petroleum Product Kinematic Viscosity Measuring Instrument has timing function, can automatically calculates the arithmetic average value, and preset the viscosity coefficient.
4. Through parameter setting, one test can be done alone or two samples can be tested at the same time, work efficiency is high.
5. The Petroleum Product Kinematic Viscosity Meter has the function of saving parameter. After the capillary diameter, coefficient and other parameters are set, the instrument will automatically save the data. When the test is performed with the same capillary, it is no need to reset the parameters.

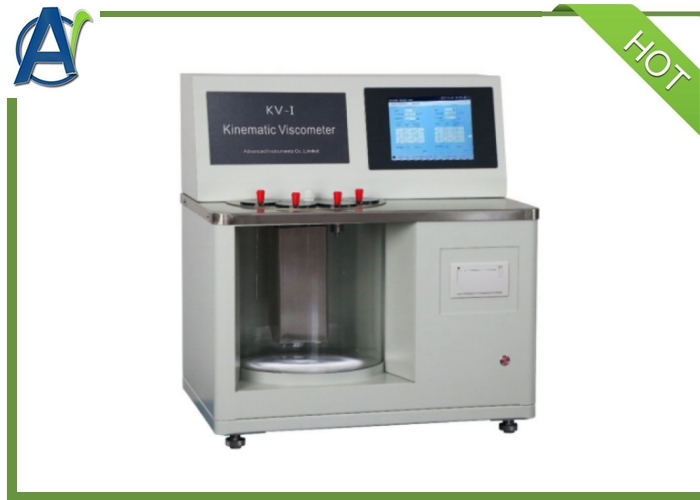

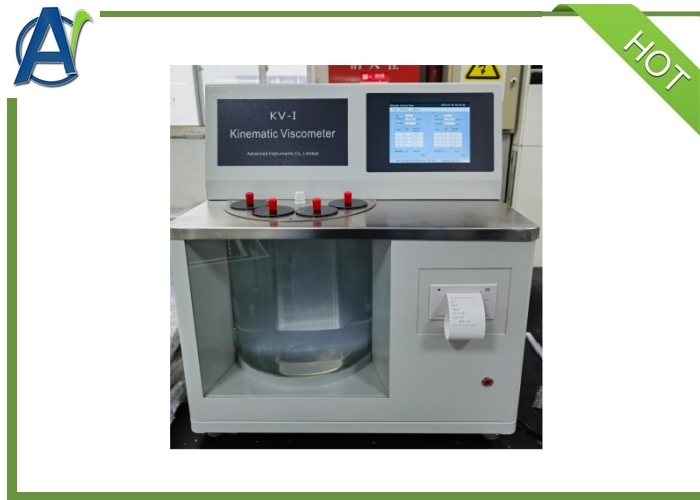

6. This Kinematic Viscometer adopts desktop and all-in-one machine structure, which has good integrity and convenient to use.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V,50Hz
Total power consumption	≤1800W
Heating power of water bath	1700W
Temperature range of water bath	room temperature~100.0 ℃
Temperature controlling accuracy	±0.01 ℃
Cubage of water bath	20L
Timing range	0.0 s~9999.9 s
Thermometer	±0.1
Timing accuracy	≤±0.05% in 60 minutes
Stirring motor	(1) Power: 6 W; (2) Rotation speed: 1200 RPM
Operation environment	(1) Ambient temperature: 15 ℃~+35 ℃; (2) Relative humidity: ≤85%;
Temperature sensor	Industry platinum resistance, scale number is Pt100
Capillary viscometer	Pinkevitch capillary, Cannon-Fenske Opaque capillary,and Ubbelohde's capillary (the nature, specification and quantity of capillary viscometer shall be subject to the actual configuration in the commercial agreement)
NW	42KG
Dimension	530mmx400mmx670mm

Full set and technical documents

Full set of instrument

No.	Name	Unit	Quantity	Remark
1	Main unit	Set	1
2	Capillary viscometer (Total 6 pieces)	Group	1
3	Capillary viscometer clamps	Group	4
4	Silica gel tube, Φ12*2	Meter	1.2
5	Mercury thermometer (0~50℃,50~100 ℃, scale divisions of them are both 0.1℃; Standa Grade II thermometer)	Piece	1 for each
6	Cover	Piece	4

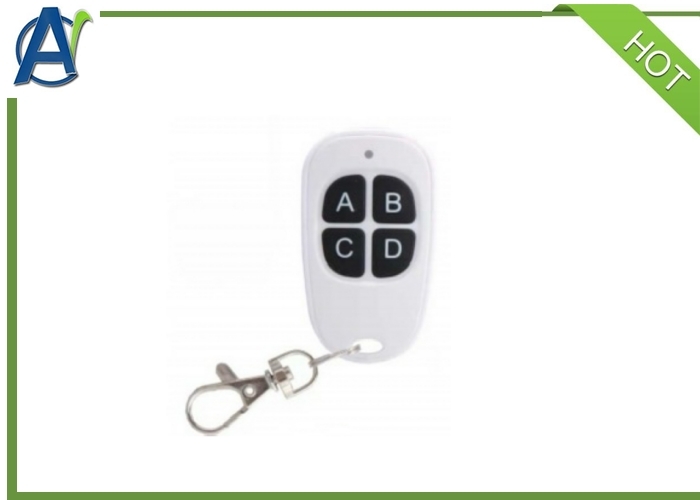

7	Timing remote control	Piece	1

Optional parts

High precision thermometer, 19~21℃, 24~26℃, 39~41℃, 49~51℃, 79~81℃, 99~101℃ with accuracy of 0.01℃;

Technical documents

(1) Operation Manual:1 piece

(2) Quality Certificate:1 piece

(3) Repair Guarantee:1 piece

Package Photos

ASTM D445 Automatic Calculation Kinematic Viscosity Tester with Built-in Printer for Petroleum Products 1

1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
