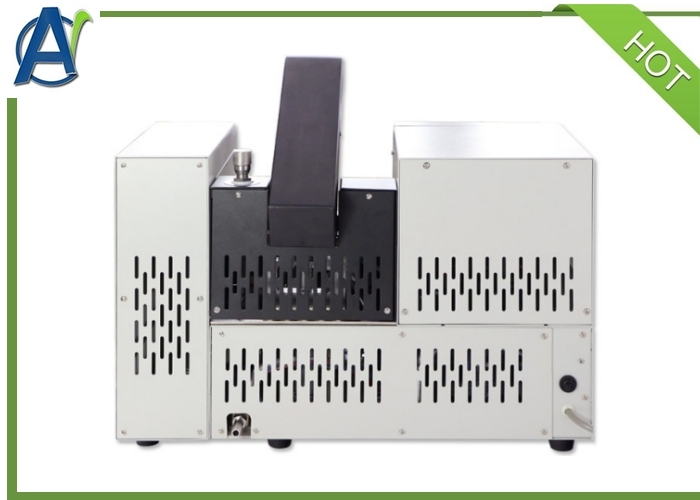

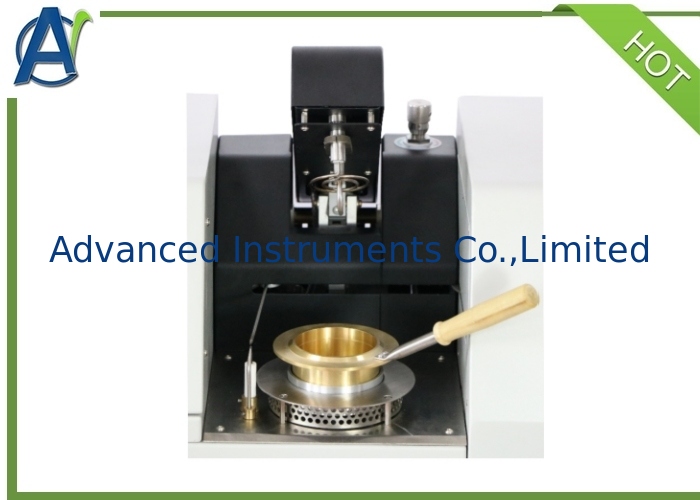

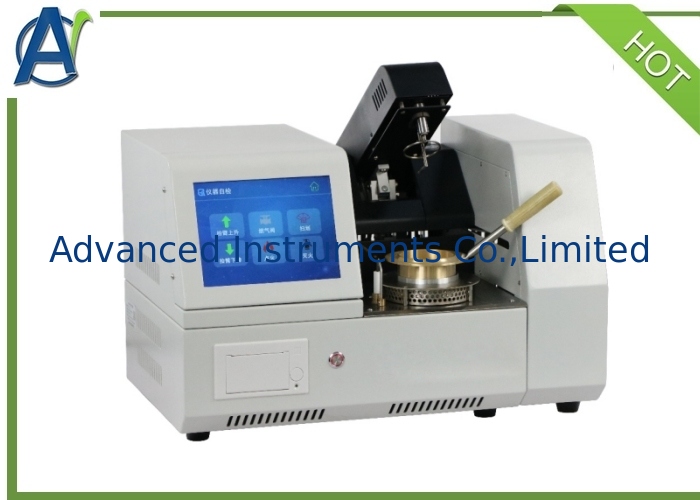

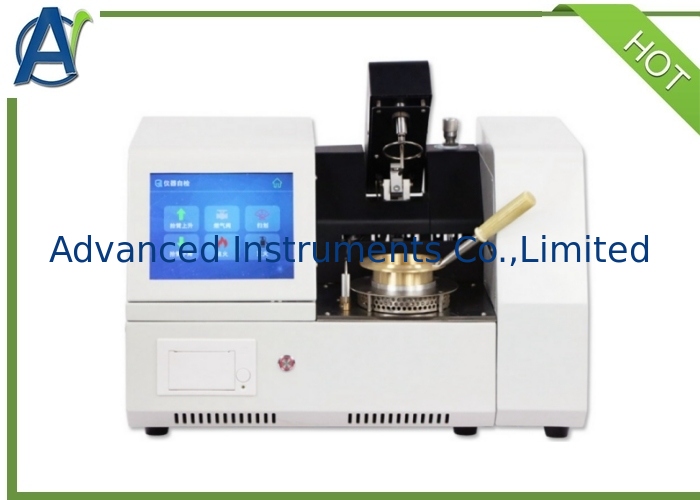

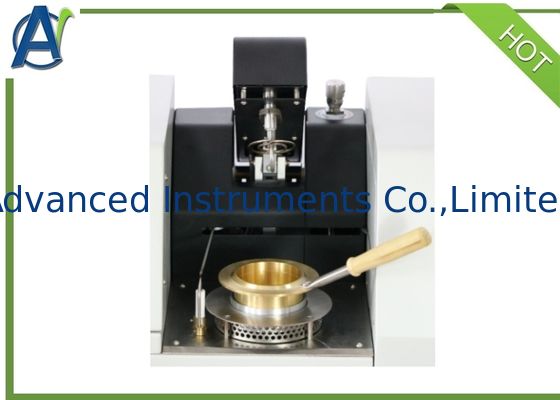

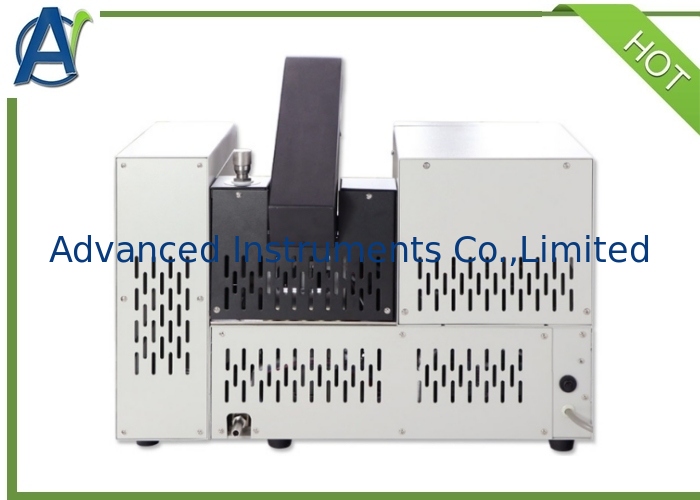

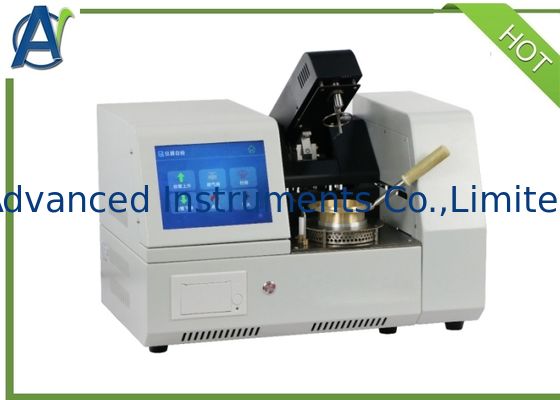

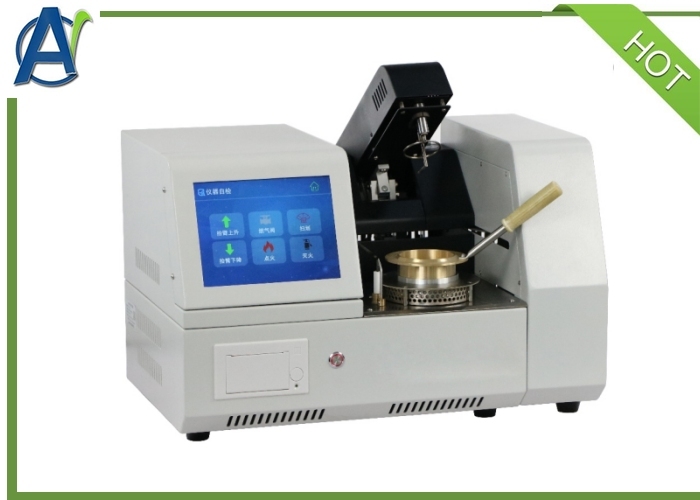

ASTM D92 Automatic Cleveland Open Cup Flash Point Tester

ASTM D92 Automatic Cleveland Open Cup Flash Point Tester
ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester ASTM D92 Automatic Cleveland Open Cup Flash Point Tester
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ASTM D93;ISO 2592
Model Number: COC-1D
Minimum Order Quantity: 1 set
Price: US$3000-5000/set
Packaging Details: Plywood Case
Delivery Time: 15days
Payment Terms: T/T, L/C, D/P
Supply Ability: 100Sets Per Month
Get Best Price Contact Now
Power Supply: AC(220±5%)V 50Hz Data Transmission Methods: Bluetooth Transmission
Dimensions: 510mm×345mm×330mm (L×W×H,) Net Weight: 20KG
Test Standard: ASTM D92;ISO 2592 Control: Fully Automatic
Highlight:

Open-Cup Flash Point Test Equipment

,

Open-Cup Flash Point Tester

,

Automated Flash Point Analyzer


Product Description
Automatic Cleveland Open Cup Flash Point Tester is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T 3536 Determination of Flash Point and Fire of Petroleum Products Cleveland Open Cup Method, ASTM D92 and ISO 2592 standards of the American Society for Materials.It is suitable to determine Cleveland open cup flash point and fire point of petroleum products, except fuel oils and petroleum products with open flash point lower than 79 ℃.
Main Technical Features
1.This Open Cup Flash Point Tester adopts an 8-inch IPS high-definition capacitive screen, a 32-bit ARM processor, and a 24 bit high-precision AD chip to record experimental data and state parameters in real time and display curves.
2. It can automatically measure atmospheric pressure and automatically correct flash point value.
3. It is equipped with Bluetooth interface to connect the computer or mobile APP wirelessly for data collection and analysis.
4. Ignition mode: electronic ignition, gas flame.
5. It adjusts the flame size with high-precision control valve.
6. Modular design, strong universality and high reliability
7. It is equipped with micro printer
8. Data is stored in the cloud and never lost. Records can be viewed anytime and anywhere. Remote prediction, exception warning, comprehensive evaluation and maintenance of operation status can be performed.

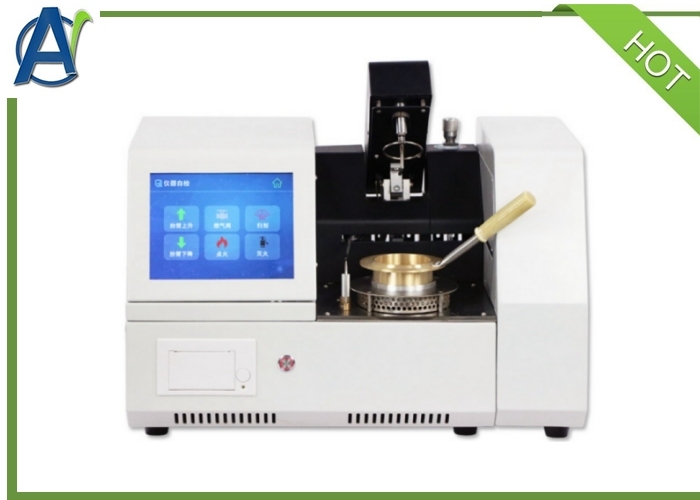

ASTM D92 Automatic Cleveland Open Cup Flash Point Tester 0
Technical Parameter
Power supply
AC ( 220±5% )V, 50Hz
Total power consumption
≤750W
Temperature measurement
(1) Full scale: Ambient to 400℃
(2) Resolution: 0.1 ℃
Data transmission mode
Bluetooth transmission
Heating rate
(1)Initial heating: (5~17) ℃/min
(2)After reaching the preset flash point of (23±5)℃: (5 ~6) ℃/min
Igniting mode
(1)Active gas electronic ignition, open flame
(2)Hole diameter of igniter: (0.7~0.8) mm
Fire extinguishing device
(1)Automatically extinguish and return to the original position after the fire point occurs
(2)You can also press the key manually to extinguish the fire
Applicable environment
Ambient temperature:(15~35)℃
Relative humidity:≤85%
Dimension
510mm×345mm×330mm (L x W x H)
Net weight
20kg
Requirements
ASTM D92,ISO 2592
Full set and technical documents
1. Full set
No.
Name
Unit
Quantity
1
Main unit
Set
1
2
Oil cup
Piece
1
3
Rubber pipe for gas
Piece
1
4
Clamp with handle
Piece
2
5
Printing paper
Roll
1
6.
Bluetooth receiver (Optional)
Piece
1



2. Technical documents
(1) Operation Manual 1 piece
(2) Quality Certificate 1 piece
(3) Repair Guarantee 1 piece


Package Photos



ASTM D92 Automatic Cleveland Open Cup Flash Point Tester 1



FAQ
1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
