Closed-Cup Flash Point Tester for Oil Testing ISO 2719

Basic Information

Place of Origin:	China
Brand Name:	Advanced Instruments
Certification:	ASTM D93;ISO 2719
Model Number:	PMCC-A

Minimum Order Quantity:	1 set
Price:	US$1500-2500/set
Packaging Details:	Plywood Case
Delivery Time:	15days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	100Sets Per Month

Get Best Price Contact Now

Accuracy:	±0.1℃	Supply Voltage:	AC(220±10%)V 50Hz
Display:	LCD	Heating Mode:	Adjust By Manual
Ignition Mode:	Ignition Gun	Test Standard:	ASTM D93;ISO 2719
Highlight:	ASTM D93 Flash Point Tester Manufacturer , Closed Cup Flash Point Testing Machine , Flash Point Analyzer

Product Description

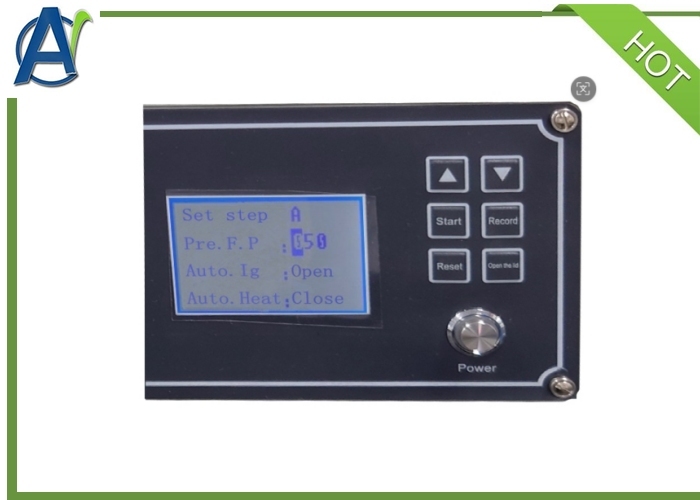

ISO 2719 Closed-Cup Flash Point Tester for Oil Testing is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.This instrument adopts LCD screen to display. English man-machine interaction interface. It can preset the flash point, the procedure A, procedure B, procedure C, open or close of the automatic ignition and heating up and other parameters. Equipped with prompting menu, prompting input operation interface. This instrument is designed newly and easy to use. The test results are exact. It can be used widely in the petroleum industry, railway, aviation, electric power, universities and colleges and scientific research institute.

Technical Parameter

Power supply	AC(220±10%)V, 50Hz
Heating device	(1)The furnace is silicon carbide material. Power is 600W heating wire. (2) The heating power is adjustable from 0 W to 600W.
Rate of sample’s heating up	Procedure A :(5~6 )℃/min; Procedure B:(1~1.5)℃/min; Procedure C: (2.5~3.5)℃/min
Electric stirring device	(1)Stirring motor:(BYGH101stepping motor) (2) Driving mode:flexible axle (3) Stirring vane size:8mm×40mm
Stirring rate	Accord with the requirements of GB/T 261. (1) 90~120 turns/min, suitable to test procedure A. (2)(250±10)turns/min, suitable to test procedure B. (3)90~120 turns/min, suitable to test procedure C
Standard oil cup	Accord with the requirements of GB/T 261. (1) Inner diameter;50.7mm~50.8mm (2) Depth;55.7mm~56.0mm (3) Scribed line depth of capacity of oil sample:33.9mm~34.3mm (4) Capacity of oil sample:about 70ml
Igniting device	Igniting source:gas(or other civilian fuels, the same below)
Temperature testing probe	Pt100
Ambient temperature	15°C~35°C,
Relative humidity	≤ 85%
Power consumption	≤ 650W
Dimension	340mm×330mm×380mm
Net weight	9kg

Full set and technical documents

Full set of instrument

Item	Name	Unit	Qty	Remarks
1	Main unit	Set	1	Including ignition unit, oil cup etc.
2	Temperature sensor	Piece	1	Has been installed in the instrument
3	Oil cup	Piece	1
4	Driving flexible shaft	Piece	1
5	latex tube φ3 250mm	Piece	3

Technical documents

(1) Operation Manual 1 piece

(2) Quality Certificate 1 piece

(3) Repair Guarantee 1 piece

Package Photos

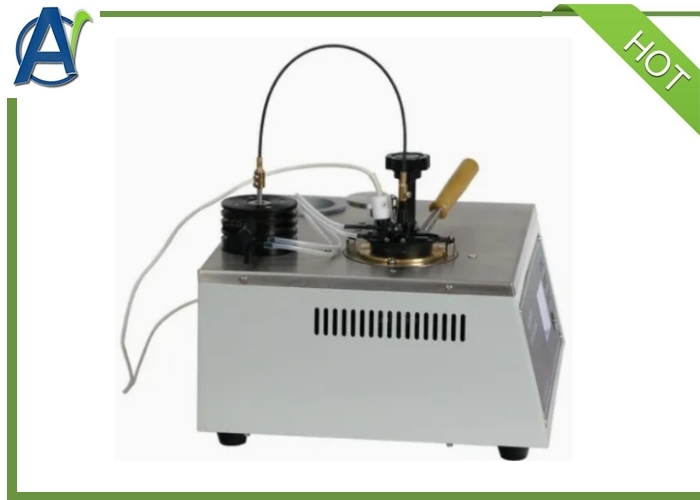

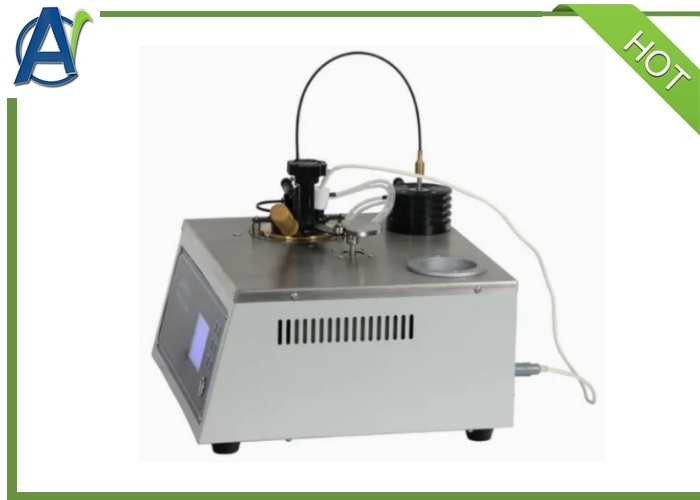

Closed-Cup Flash Point Tester for Oil Testing ISO 2719 1

1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
