Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-1742 |
Minimum Order Quantity: | 1 set Lubricating Oil Separation Tester |
Price: | Negotiable |
Packaging Details: | Oil Separation Test Equipment packed in Hardboard |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 sets per month |
Test Standard: | ASTM D1742 | Test Method: | Static Method |
---|---|---|---|
Temperature Control Accuracy: | 25℃±1℃ | Power Supply: | AC220V±10% 50HZ |
Warranty: | 1 Year | Total Power Consumption: | 1200W |
Dimension: | 490*500*880mm | Weight: | 60KG |
High Light: | ASTM D1742,Oil Separation Test,Oil Separation Test Equipment |
I.Introduction

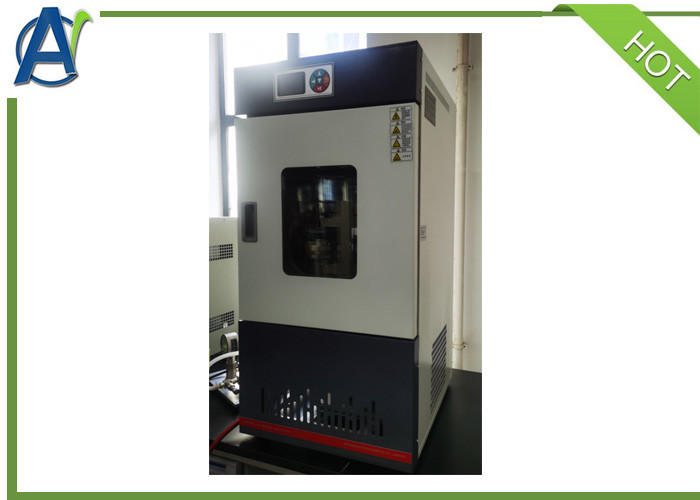

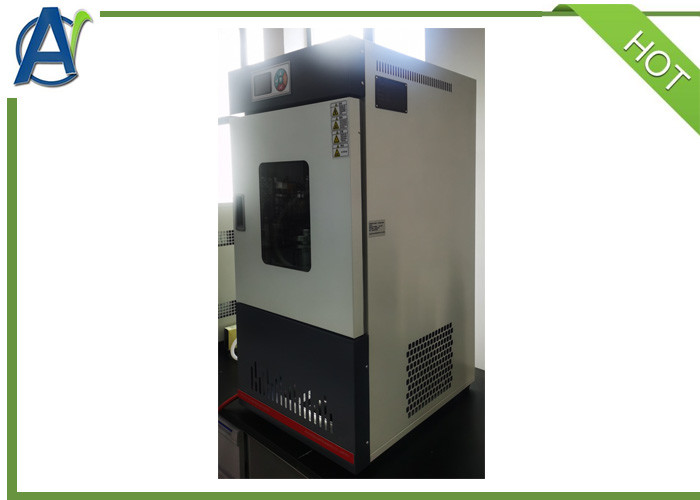

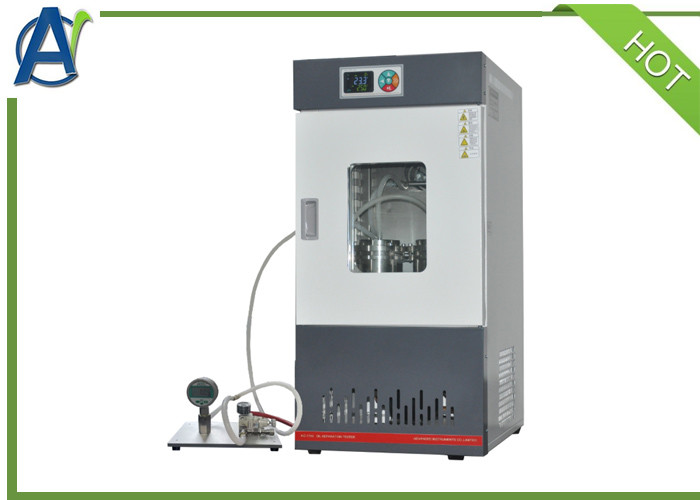

ASTM D1742 Oil Separation Test Equipment covers the determination of the tendency of a lubricating grease to separate oil during storage in both normally filled and partially filled containers.
This Oil Separation Test Equipment is not suitable for greases softer than NLGI No. 1 grade.
II.Main Features:
1.This Lubricating Grease Oil Separation Test Equipment adopts digital gauge shows pressure, the result is clear at a glance.
2.High precision needle valve control pressure.
3.Temperature display: digital display thermostat.
III.Technical specifications of AIC-1742 Lubricating Grease Oil Separation Test Eequipment
Test units |
2 |
Temperature controlling accuracy |
25ºC±1ºC |
Pressure range |
1.72kPa±0.07kPa |
Sieve aperture |
75μm |
Pressure display |
Precise digital pressure gauge |
Power supply |
AC220V 50Hz |
Total power consumption |
1200W |
Dimension |
490*500*880mm3 |
Weight |
60KG |
