Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-1321 |
Minimum Order Quantity: | 1 unit |
Price: | Negotiable |
Packaging Details: | Hardboard |
Delivery Time: | 20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 units per month |
Test Standard: | ASTM D1321 | Display: | Digital |
---|---|---|---|
Measuring Value: | < 620 | Needle Mass: | 2.5 G ± 0.05g |
Plunger Mass: | 47.5 ± 0.05g | Power Supply: | AC220V ± 10%/50HZ. |
Color: | White | Weight: | 14KG |
High Light: | Wax Penetrometer,ASTM D1321,Petroleum Wax Penetrometer |
I.General Introduction

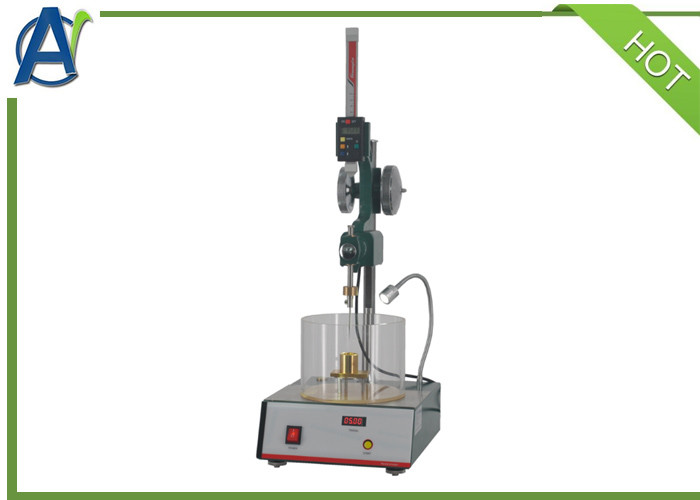

This petroleum wax penetrometer is suitable for detecting the penetration of solid and semi solid asphalt materials with a penetration of less than 350, and is also suitable for asphalt materials with a penetration of 350-500.
II. Technical Specification
1 Applicable standard: GB/T4985,ASTM D1321
2. Time: ≤ 60s.
3. Needle mass: 2.5 g ± 0.05g.
4. Plunger mass: 47.5 ± 0.05g.
5. Measurement value: < 620.
6. Working power supply: AC220V ± 10%/50HZ.
III.Characteristic

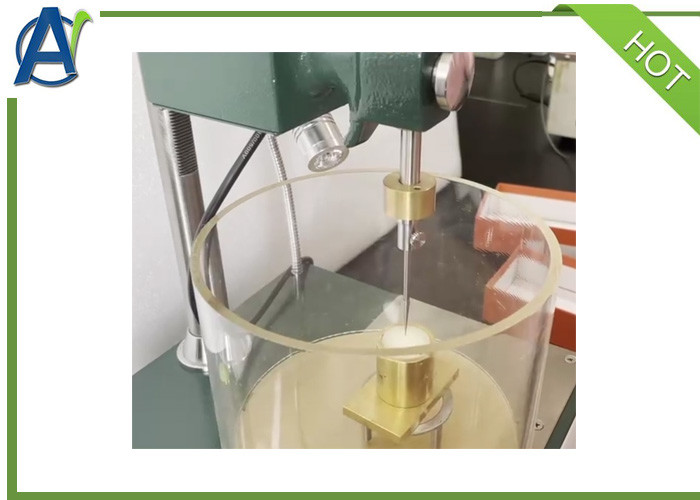

1. The petroleum wax penetrometer includes one electric actuator and one manual gear, which can adjust the position of the cone plate on the asphalt sample: digital display of results, independent electronic timer; In addition, temperature controlled water baths of different sizes can be provided, and needle penetration testing can be conducted in water at 25ºCor other temperatures through connecting the baths and conversion plates;
2. Sturdy flat aluminum plate with central equipment, level gauge, and positioning screws;
3. Decoder and 50mm needle penetration motion range;
4. Electronic programming timer can set the needle penetration time;
5. The needle complies with ASTM/IP, with a total weight of 2.5 g;
6. 1 brass sample shaper, inner diameter 25.4mm, height 31.8mm, wall thickness 3.2mm;
7. The time controller adopts digital display, with a control time range of 0-9 minutes and 59 seconds, and an accuracy of ± 0.1 seconds.

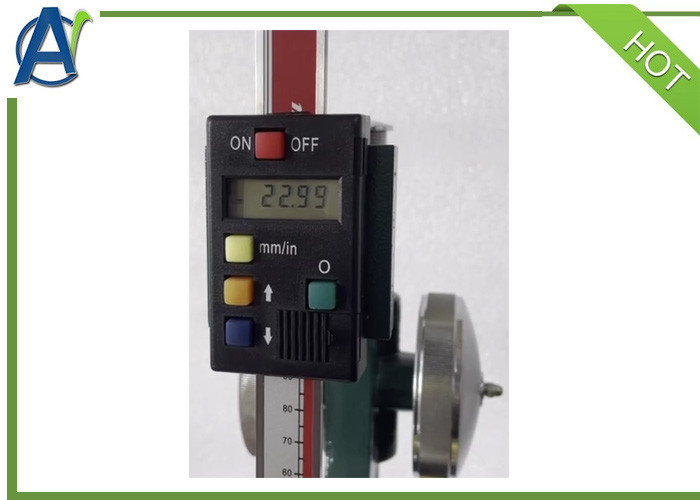

8. Digital display depth measurement mechanism, easy to use, good repeatability, and high measurement accuracy;
9. The maximum measurable needle penetration value shall not be less than 620, which can adapt to various test requirements;
10. There are two types of bracket movement: fast and micro, which are convenient for aligning the needle tip with the surface of the sample during testing operations;
11. The bracket has a self locking function that can be securely stopped at any position.
12. The petroleum wax penetrometer is equipped with a table level adjustment mechanism for easy adjustment;
13. The petroleum wax penetrometer is equipped with a manual release mechanism for needle penetration unit, it can ensure normal operation even when automatic control release time is not used.
