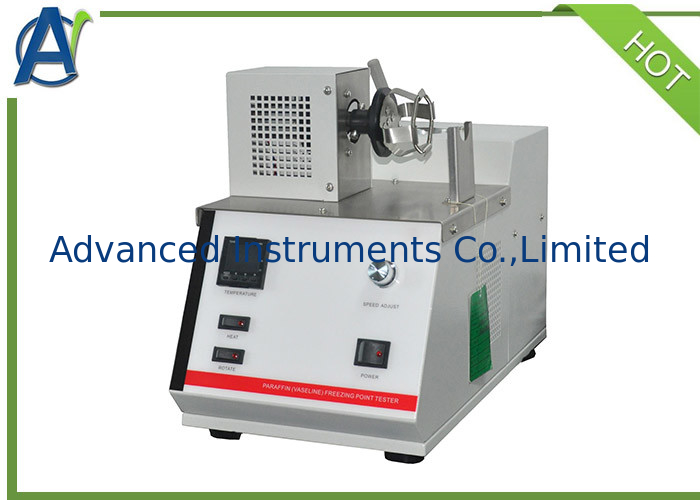

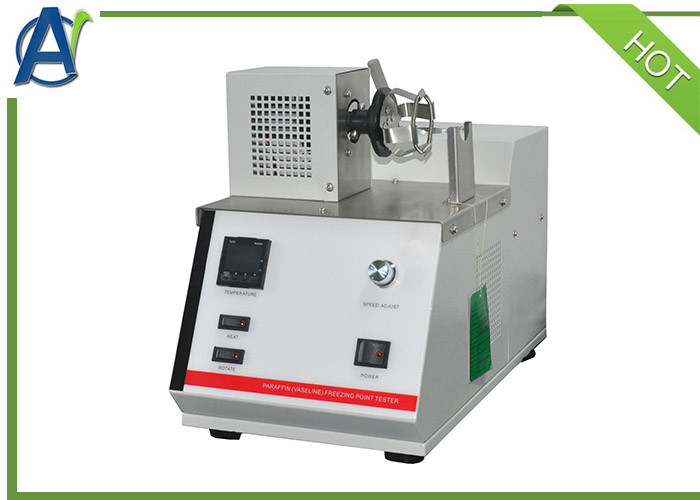

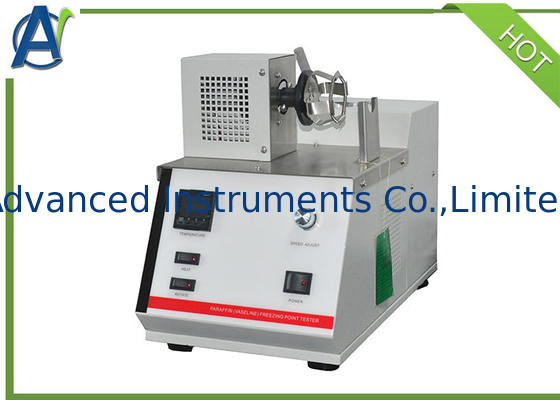

ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline

ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline
ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline
ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline
Basic Information
Place of Origin: CHINA
Brand Name: AI
Certification: ISO
Model Number: AIC-938
Minimum Order Quantity: 1 Set Congealing Point Test Instrument
Price: Negotiable
Packaging Details: Hardboard
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets per Month
Get Best Price Contact Now
Test Standard: ASTM D938 Rotation Method: DC Motor Drive
Rotation Speed: 2.5s/r Total Power Consumption: 800W
Power Supply: AC220V ± 10% 50HZ Heating: Metal Bath
Temperature Control: Imported Digital Display PID Color: White
Highlight:

Congealing Point Test Instrument

,

Congealing Point Instrument

,

ASTM D938

Introduction

The congealing point is a characteristic of paraffin products that is of interest to many paraffin users. This process is the temperature at which the
test sample cools to form congealed or stops flowing. At this temperature, petroleum wax may be solid or near solid, or semi solid, and is quite soft,depending on the composition of the paraffin or petrolatum being tested. When the sample is petrolatum, the congealing is related to the gel
structure of the sample when it is cooled.
The principle of congealing point testing is to melt the paraffin sample and stick the paraffin droplets to the mercury ball of the thermometer. A preheated flask is used as an air jacket to cool the petroleum wax adhered to the mercury ball at the rated speed until it condenses. The freezing point can be reduced by the thermometer temperature, and when the paraffin droplets stop flowing, the observed temperature is the congealing point.
The congealing point test instrument is also suitable for testing Vaseline.



Characteristic

1. Heating the sample in a metal bath is safe, environmentally friendly, and free from open flames;
2. The motor drives the horizontal axis of the sample to rotate, reducing Personal equation;
3. The rotation speed can be adjusted according to requirements;
4. The holding device can be easily operated;
5. Microcomputer temperature controller, PID adjustable temperature control, PT100 temperature sensor, high accuracy;
6. The congealing point test instrument is equipped with dedicated thermometers and test tube plugs;



Technical specifications

1 Applicable standard ASTM D938
2 Temperature control method imported digital display PID temperature controller
3 Heating method metal bath heating
4 Rotation method DC motor drive
5 Rotation speed 2.5s/r
6 Total power consumption 800W
7 Working power supply AC220V ± 10% 50HZ



ASTM D938 Congealing Point Test Instrument for Paraffin and Vaseline 0
