| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-5182 |
| Minimum Order Quantity: | 1 set Scuffing Load Capacity Testing Equipment |
| Price: | Negotiable |
| Packaging Details: | Scuffing Load Capacity Testing Equipment packed in Hardboard |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standard: | ASTM D5182 | Test Method: | FZG Visual Method |
|---|---|---|---|
| Max. Torque: | 1Kn. M | Max. Loading Class: | 13 |
| Motor Power: | 6.5/8kw | Motor Speed: | 1450/2880 R/min |
| Keyward: | FZG Testing Equipment, Scuffing Load Capacity Testing Equipment | Warranty: | 1 Year |
| Highlight: | ASTM D5182 Gear Wear Test Equipment,FZG Method test,Scuffing Load Capacity Analyzyer |
||

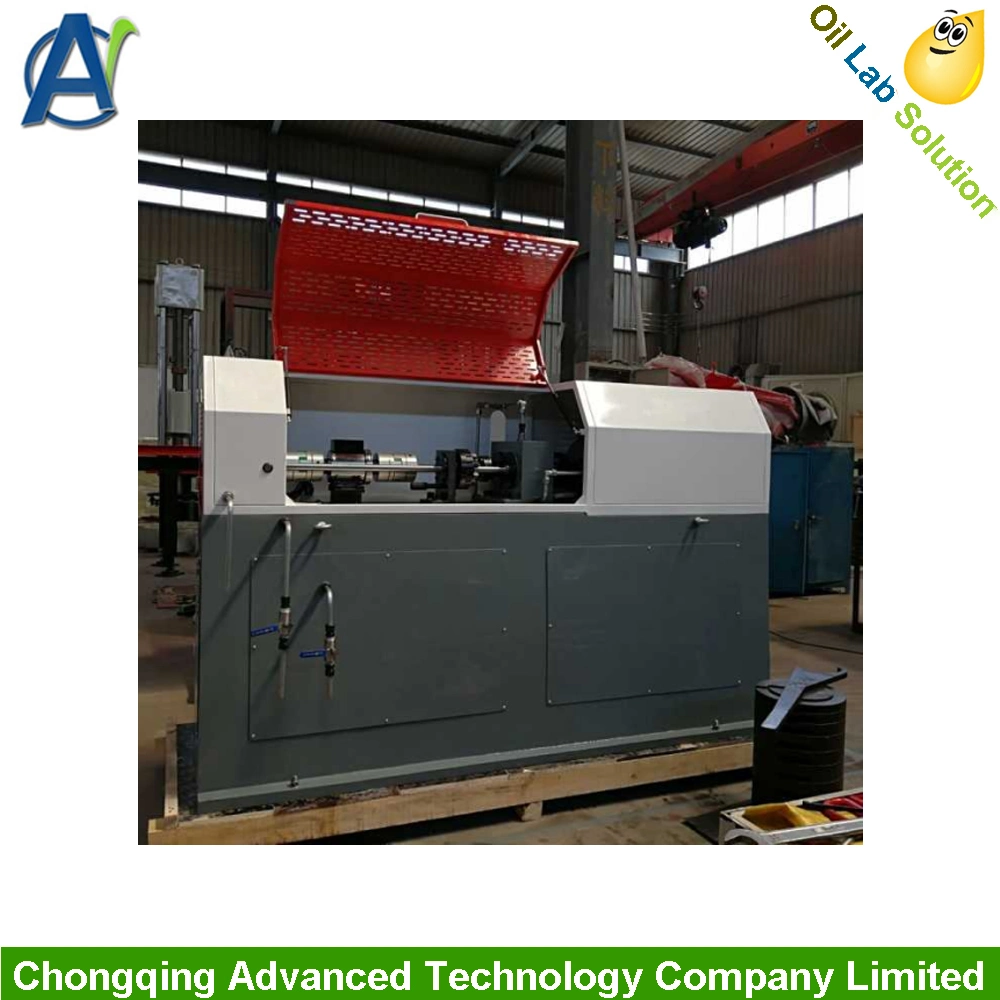

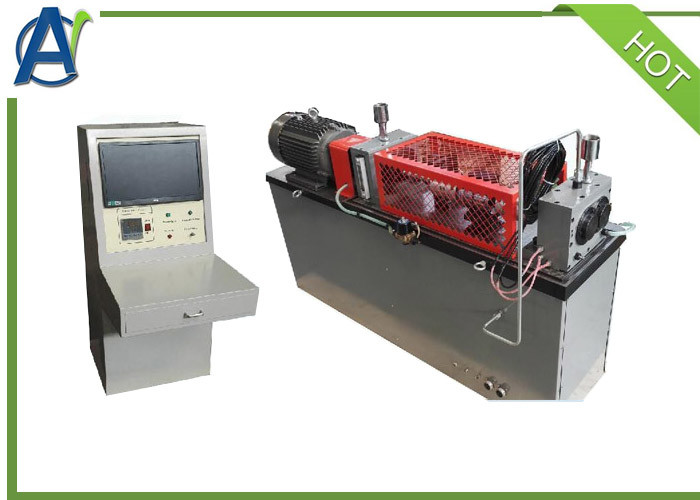

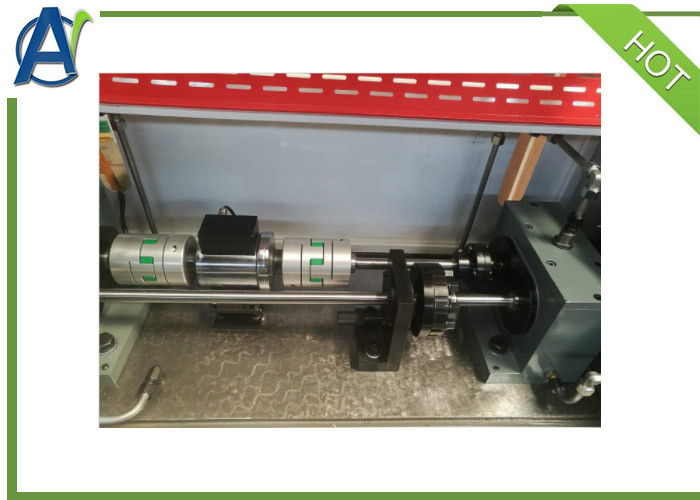

Introduction

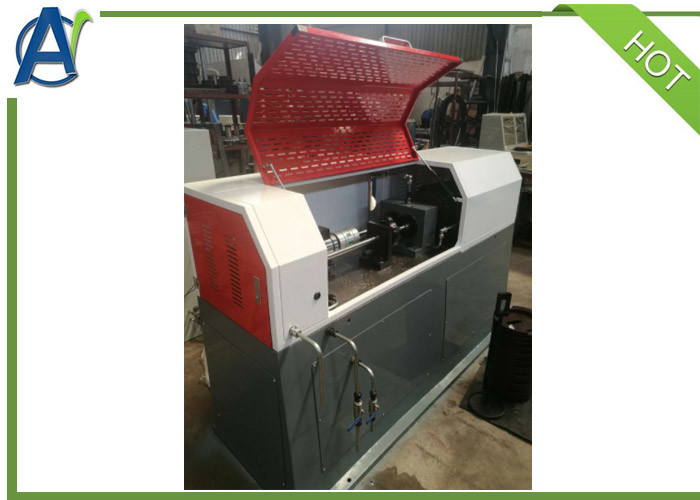

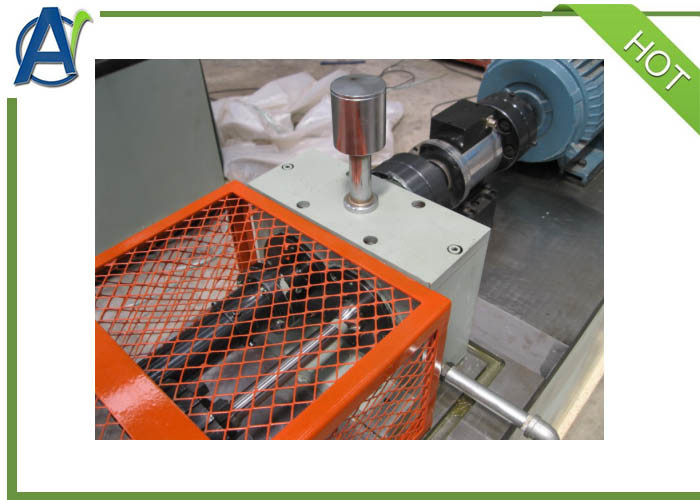

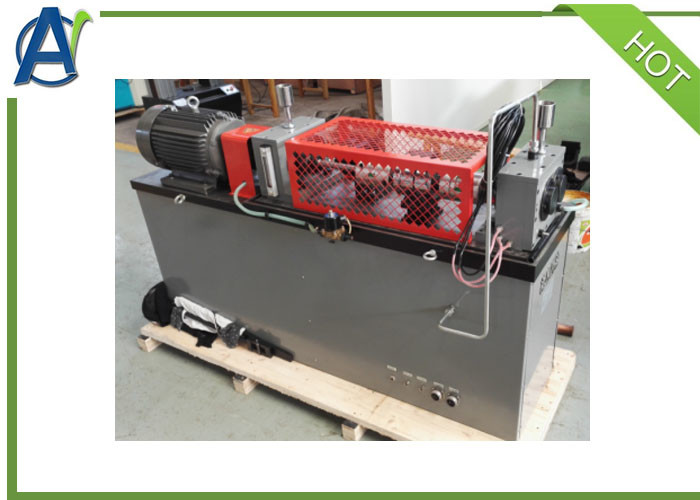

FZG gear wear test machine is a multi-purpose testing machine.It can be used for the evaluation of the scuffing load capacity of the lubricant, also can be customized according to client's demands. It is usually using for gear bending fatigue strength and gear touch fatigue strength test.
This FZG scuffing load capacity testing equipment confirms to GB/T 13672-92 standard test method for scuffing load capacity of gears,ASTM D5182 Standard Test Method for Evaluating the Scuffing Load Capacity of Oils (FZG Visual Method), and SH/T 0366-1992 lubricant carrying capacity test method (CL-100 Gear machine method)
| 1 |
Max. torque |
1Kn. m |
| 2 |
Max. loading class |
13 |
| 3 |
Temperature control accuracy |
±2ºC |
| 4 |
Motor power |
6.5/8kw |
| 5 |
Motor speed |
1450/2880 r/min |
| 6 |
Gear box volume |
1.25L |
| 7 |
Heating power |
0.5X3=1.5kw |
| 8 |
Dimensions |
1390X750X1082mm |
2. Installation and adjustment
Make the FZG test machine at the level of the floor and mat three horns. Put the spirit level on the test table. By adjusting the horn to make the vertical and horizontal direction error do not exceed 0.2/1000.
The fzg test machine host should be placed separately from the control cabinet to avoid the noise and pungent odor when the testing machine working. After the start of the FZG test machine, person can not inter into the room which the machine placed.
The test procedure in accordance with the the "lubricant carrying capacity assay (CL-100 gear machine method) SH/T0306-92" provisions.

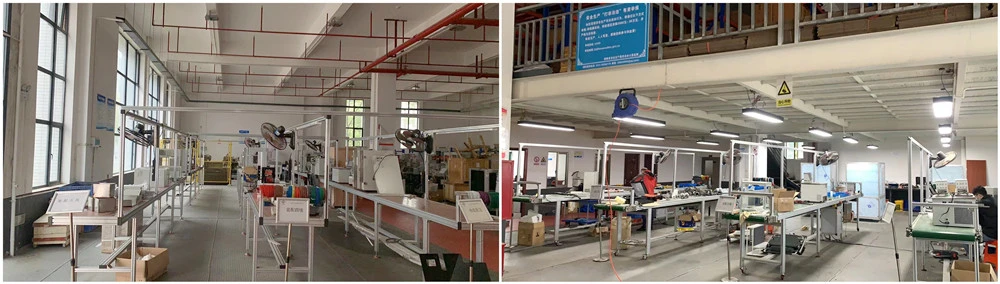

Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.
Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Customer Feedback
Germany
Package
Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.
