Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-51805 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standard: | DIN 51805 | Power Supply: | 220VAC 50Hz |
|---|---|---|---|
| Temperature Control Range: | Room Temperature~-40℃ | Temperature Control Accuracy: | ±0.1ºC |
| Pressure Adjusting: | Automatic | Refrigeration Method: | Semiconductor |
| Total Power: | 500W | Pressure Range: | 0~5000mbar |
| Control: | Touch Screen | Color: | White |
| Highlight: | Kesternich Test Instrument,DIN 51805 Lubricating Grease Testing Equipment,Flow Pressure Test Instrument |
||
Summary

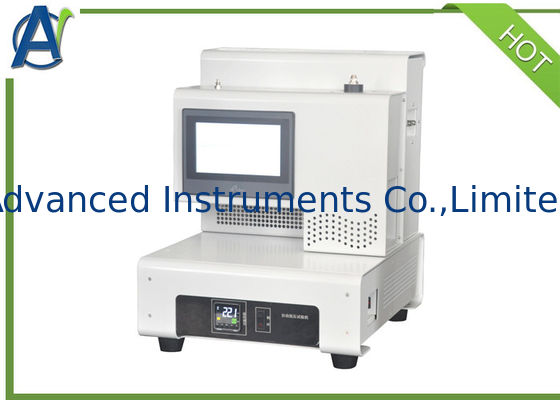

DIN 51805 Determination of Flow Pressure of Lubricating Greases by Kesternich Technique
Central lubrication systems typically offer reduced maintenance costs and increased reliability over conventional grease application methods. To start the grease flowing, pressure is applied to the system - lower temperatures normally require higher pressures than higher temperatures. This test determines the pressure required to start grease flowing at low temperatures. The grease is packed into the test nozzle, brought to the test temperature and pressure is applied. The pressure is increased in 30 second intervals until grease passes through the nozzle. Reported is the flow pressure in mbar. Please include the test temperature.
I,Main technical characteristics
1. This Flow Pressure Test Instrument is manufactured according to the new standard and does not need glass accessories consumables;
2. Automatically select the expected boost mode of the third gear according to the standard requirements;
3.This Flow Pressure Test Instrument can automatically control and measuring pressure;
4. This Flow Pressure Test Instrument adopts large LCD touch operation;
5. Semiconductor cooler, fast cooling speed;
6. Realize full automation to replace the original manual and time-consuming instruments;
7. Microcomputer temperature controller, PT100 temperature sensor, high precision.
II,Main technical parameters and index
| 1 | Applicable standard | DIN 51805 |
| 2 | Temperature control method | digital temperature controller |
| 3 | Temperature control range | room temperature~40ºC |
| 4 | Temperature control accuracy | ±0.1ºC |
| 5 | Pressure display | digital pressure gauge |
| 6 | Pressure adjusting | Automatic |
| 7 | Refrigeration method | semiconductor |
| 8 | Total power | 500W |
| 9 | Pressure range | 0~5000mbar |
| 10 | Power supply | AC220V 50Hz |
