| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-3841 |
| Minimum Order Quantity: | 1 set Pensky Martens Closed Cup Flash Point Test Instrument |
| Price: | Negotiable |
| Packaging Details: | Wax Melting Point Apparatus packed in Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Test Standards: | GB/T2539,ASTM D87,ISO 3841 | Measuring Range: | Ambient~-40℃ |
|---|---|---|---|
| Display: | Digital | Power Supply: | AC220 ± 50% 50Hz |
| Temp.controller: | Digital PID | Power Consumption: | 300W |
| Test Method: | Cooling Curve | Refrigeration: | Compressor Refrigeration |
| Working Position: | Two Units | Color: | Black |
| Language: | English | ||
| High Light: | Wax Melting Point Apparatus,Wax Melting Point Tester,Wax Melting Point Analyzer |
||
Introduction

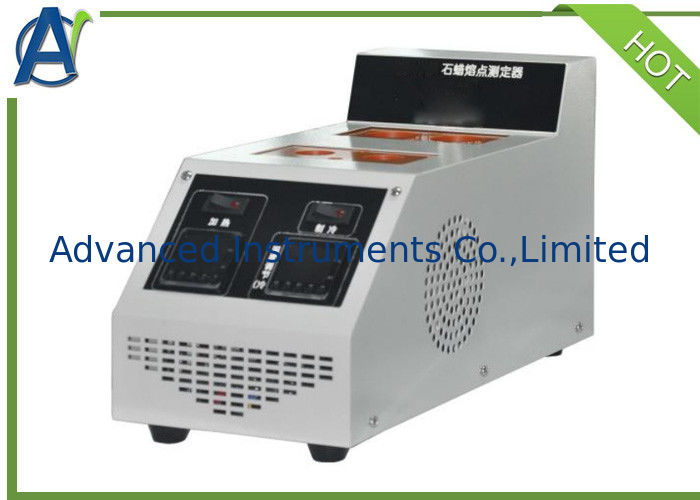

This wax melting point apparatus is suitable for detecting the melting point of paraffin, unsuitable for microcrystalline wax and petroleum grease.
Main Festures:
1. Two holes operation is convenient for parallel sampling;
2. This melting point of wax measuring instrument adopts imported fully enclosed compressor refrigeration;
3. The wax melting point tester has stainless steel refrigeration bath;
4. The melting point apparatus adopts separate temperature control system;
5. Good refrigeration effect, the lowest temperature can reach - 40 ºC;
6. Integrated structure, small and beautiful appearance;
7. Built in imported self-priming circulating pump to ensure the uniformity of temperature;
8. The compressor is equipped with self-protection function;
9. The internal temperature cooling system is set. When the system temperature is too high, the internal inlet solenoid valve will automatically cool the system;
10. Microcomputer controller, PID function, digital display of temperature (continuous display during test), accuracy of 0.1ºC, PT100 RTD temperature probe;
11. Access to the control box is very convenient.
Technical specifications of Petroleum Wax Melting Point Apparatus
| 1 | Applicable standard | GB/T2539,ASTM D87,ISO 3841 |
| 2 | Working constant temperature | normal temperature ~ - 40 ± 1 ºC |
| 3 | Refrigeration mode | compressor refrigeration |
| 4 | Temperature control mode | digital PID temperature controller |
| 5 | Working mode | double hole |
| 6 | Working power supply | AC220 ± 50% 50Hz |
| 7 | Total power | 300W |
