Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-9705 |
Minimum Order Quantity: | 1 Set Large Calorimeter |
Price: | Negotiable |
Packaging Details: | Plywood case |
Delivery Time: | 90 days |
Payment Terms: | D/P, T/T, L/C, Western Union |
Supply Ability: | 10 Sets per Month |
Test Standard: | ASTM E1537,ASTM C1590,ASTM C1822,ISO 9705, EN 14390,16 CFR 1633 | Size Of Test Room: | 3660*3050*2438mm3 |
---|---|---|---|
Size Of Door: | 2032*965mm2 | Size Of Monitor Window: | 150x150mm2 |
Size Of Conical Collector: | 3000*3000*1000mm3 | Test Object: | Upholstered Furnite,Stacked Chairs,Mattresses |
Keyword: | Furnite Large Calorimeter | Warranty: | 1 Year |
Highlight: | Upholstered Furniture Calorimeter,ASTM E1537 Furniture Calorimeter,Large Calorimeter |
This large calorimeter is designed according to ASTM1537-16,ASTM C1822-17,ASTMC1590-17, this calorimeter can complete the combustion performance test of soft furniture mattress exposed to flame ignition source.
The test part of the calorimeter can meet the requirements of ASTM1537-16,ASTM C1822-17,ASTMC1590-17 and Test Method for Solid Room Fire of Surface Products"
Standards
Main features
1.Testing room:
Stucture of test room |
Open (CFR 1633 standard requires test room can be built as closed or open) |
Material of test room | It is made of rock wool board. There are no openings except door and video surveillance windows |
Size of test room | 3660 ± 25mm in length, 3050 ± 25mm in width and 2438 ±25mm in height. |
Size of door | 2032 ± 6 mm high and 965 ± 6 mm wide. |
Quartz glass monitor window | 150x150mm |

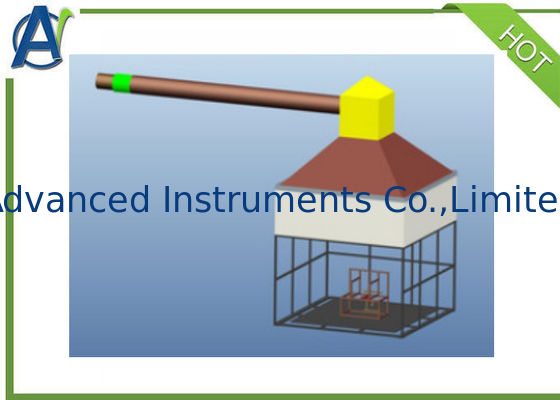

Open test room:
2.The smoke exhaust pipe consists of a diversion section (x2), a straight section, a measuring section and a fan
The measuring section is equipped with wind speed probe, thermocouple, optical system and sampler.
Smoke exhaust capacity of fan is not less than 0.5m³/s
Control cabinet
