ISO 15025 Flame Spread Properties of Vertically Oriented Flexible Materials Tester

Introduction:

Vertical Flame Spread Properties Tester is suitable for the measurement of limited flame spread properties of protective clothing.

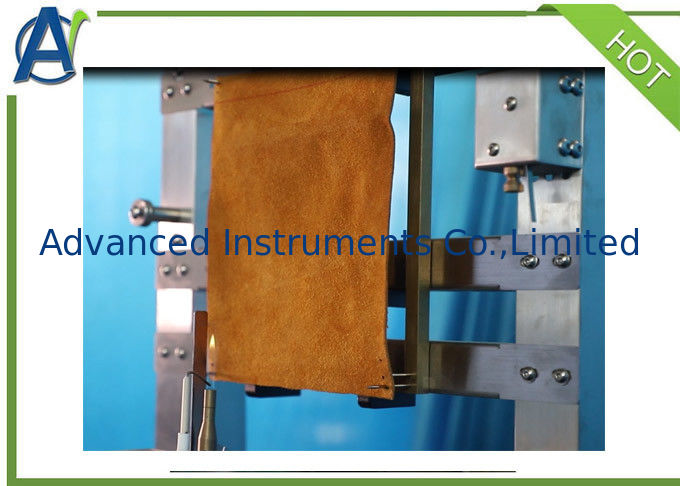

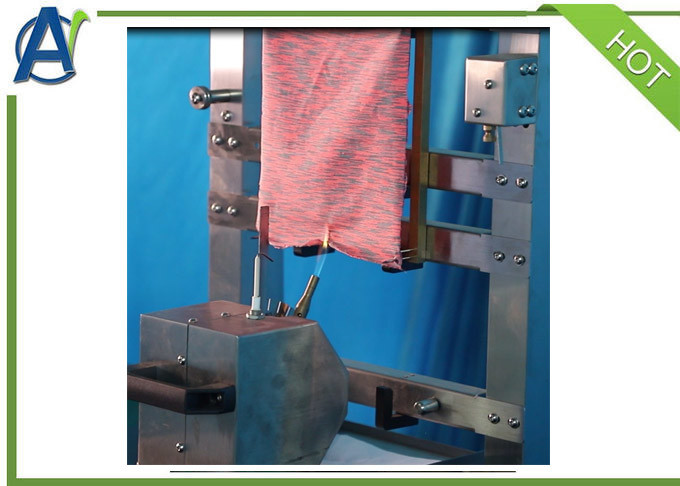

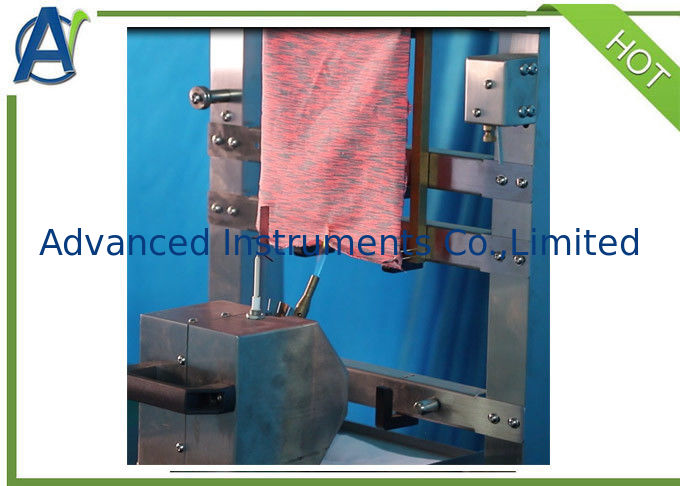

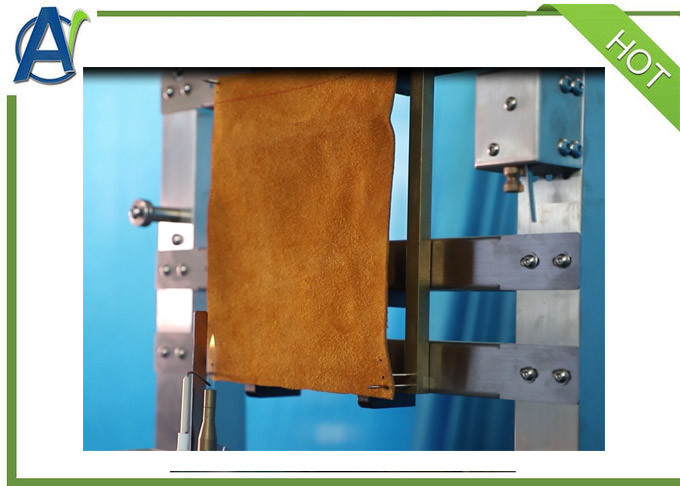

The flame from the burner is applied for 10 s to the surface or the bottom of textile specimens which are vertically oriented.

Features:

• Vertical Flame Spread Properties Tester s designed and manufactured according to ISO 15025 standards.
• It can be updated to meet the requirement of ISO6941, ISO 6940 etc by using different specimen holders.

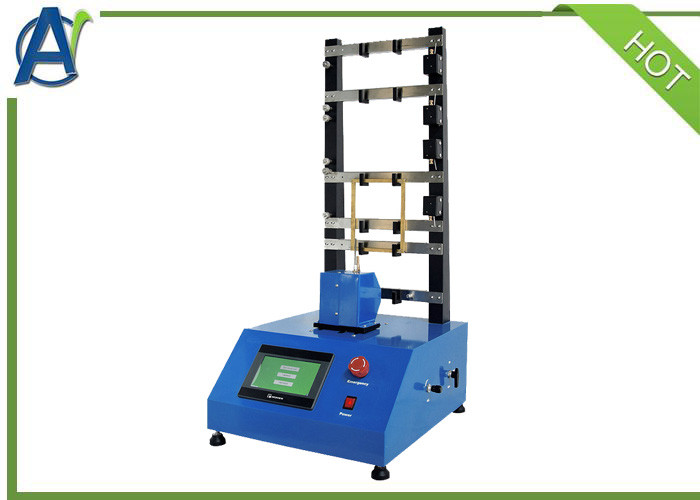

• Vertical Flame Spread Properties Tester consists of mounting frame, gas burner, test specimen holder with supporting pins.
• The angle of the burner can be pre-setted and adjusted automatically.
• Burning time can be pre-setted and operate automatically.
• Burning time and glowing time is recorded and can be read on LCD screen.

Specifications:



No.	Item Name	ISO 15025 Vertical Flame Spread Properties Tester
1	Application field	Safety protection, Automotive Interior
2	Reference standards	ISO 6941, ISO 15025
2	Dimension	410mm(W) X 900mm(H) X 380mm(D)
3	Weight	36kg
4	Power supply	230 volts Nominal 10 Amps
5	Ambient temperature	Operating 25±5℃
6	Gas supply	Propane and compressed air
