| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | RECC-I |
| Minimum Order Quantity: | 1 Set Low Temperature Closed Cup Method Flash Point Test Set |
| Price: | Negotiable |
| Packaging Details: | Low Temperature Closed Cup Method Flash Point Test Set packed in Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standard: | ISO1523 And ISO3679 | Power Supply: | AC(220±10%)V, 50Hz |
|---|---|---|---|
| Test Method: | Rapid Equilibrium Closed Cup | Flash Point Measuring Range: | -30℃～50℃ |
| Power Consumption: | 300W | Sample Quantity: | 2ml |
| Dimension: | 370mm×280mm×280mm | Warranty: | 1 Year |
| Highlight: | ISO1523,ISO3679,Low Temperature Flash Point Test Set |
||

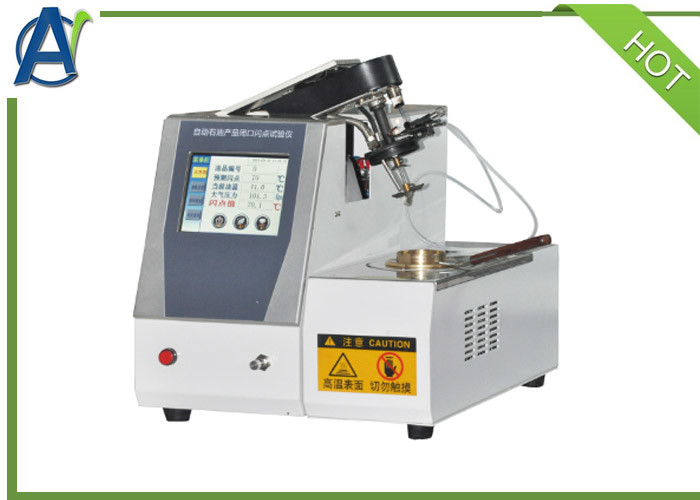

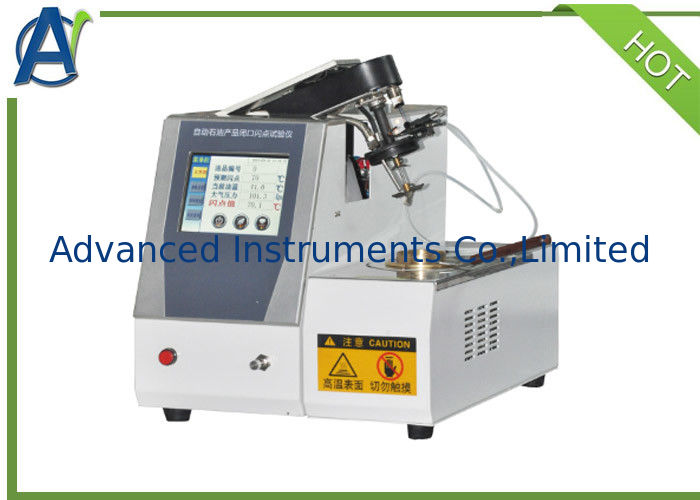

Introduction
This Closed cup flash point test set is designed and made as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can meet the requirements of rapid determination for closed cup flash point of petroleum products in oil,chemical, varnish, paint, railway,aviation, electricity, commercial inspection and science research institution.
This instrument is specially suitable to determine different kinds of colored paints,oil paints, adhesives,solvents and petroleum products which the closed cup flash point is -30℃～50℃.The instrument is also correspond with ISO1523 and ISO3679.
Characteristics
1.Designed as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose of testing closed cup flash point rapidly and at low temperature.
2.This low temperature flash point test set adopts semiconductor refrigeration device and external water cooling device.The size is small and cooling rate is rapid.Easy to operate.
3.Test sample needed is less.2ml for each time(4ml for solid sample and semi-solid sample)
4.The determination procedure is automatically completed except ignition.Test results can be printed automatically.
Technical specifications
1.Power supply: AC(220±10%)V, 50Hz
2.Flash point measuring range: -30℃～50℃
3. Precision of determination:
Absolute difference between two determinations is lower than 2℃(same operator)
Absolute difference between two determinations is lower than 3℃(different operators)
4. Temperature control precision: ±0.5℃
5. Igniting device:Electric igniting gun
6. Cooling mode:Semiconductor(with cold water cycle at external connection)
7. Maximum power consumption:300W
8. Ambient temperature:5℃～30℃
9. Relative humidity:30%～80%
10. Dimension:370mm×280mm×280mm
Accessories List
| No. | Name | Unit | Qty |
| 1 | RECC-I Low Temperature Closed Cup Flash Point Tester | Set | 1 |
| 2 | Fuse Φ5×20 10A | Piece | 2 |
| 3 | Power wire(250V 10A) | Piece | 1 |
| 4 | Printing paper | Roll | 1 |
| 5 | Flexible pipe(inner diameter Φ8) | Meter | 3 |
| 6 | 5ml Sample injector | Piece | 1 |
