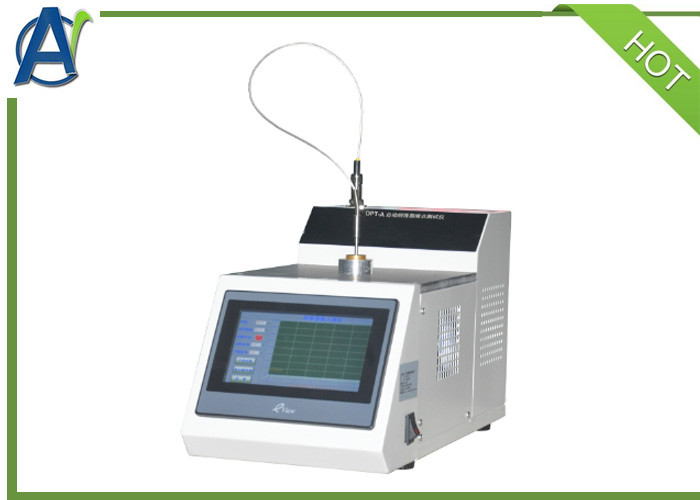

ASTM D1742 Oil Separation Tester for Lubricating Grease Testing

ASTM D1742 Oil Separation Tester for Lubricating Grease Testing
ASTM D1742 Oil Separation Tester for Lubricating Grease Testing
ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing ASTM D1742 Oil Separation Tester for Lubricating Grease Testing
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO
Model Number: AIC-1742
Minimum Order Quantity: 1 set Lubricating Oil Separation Tester
Price: Negotiable
Packaging Details: Lubricating Oil Separation Tester packed Hardboard
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now
Test Standard: ASTM D1742 Test Method: Static Method
Temperature Control Accuracy: 25℃±1℃ Power Supply: AC220V±10% 50HZ
Warranty: 1 Year Total Power Consumption: 1200W
Dimension: 490*500*880mm Weight: 60KG
Highlight:

ASTM D1742

,

Oil Separation Tester

,

Lubricating Oil Separation Tester

Oil Separation Tester for Lubricating Grease




Introduction
ASTM D1742 test method covers the determination of the tendency of a lubricating grease to separate oil during storage in both normally filled and partially filled containers.
This test method is not suitable for greases softer than NLGI No. 1 grade.



Main Features:

◆This Lubricating Grease Oil Separation Tester adopts digital gauge shows pressure, the result is clear at a glance

◆High precision needle valve control pressure

◆Temperature display: digital display thermostat



Technical specifications

Test units 2
Temperature controlling accuracy 25℃±1℃
Pressure range 1.72kPa±0.07kPa
Sieve aperture 75μm
Pressure display Precise digital pressure gauge
Power supply AC220V 50Hz
Total power consumption 1200W
Dimension 490*500*880mm
Weight 60KG
