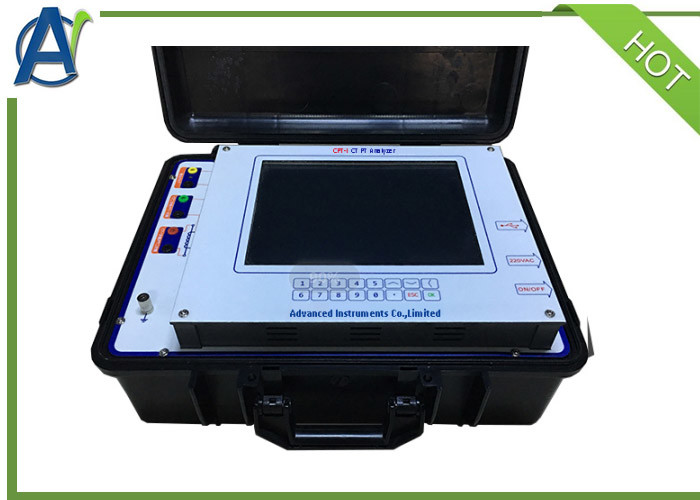

Portable Single Phase and Three Phase Current Transformer Tester

Introduction:

CPT-I Current Transformer Tester is used to measure all kinds of current transformer and voltage transformer.

It can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one time test.

CPT-I Current Transformer Tester can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified.

Application:

Features:

1. Make evaluation for test results according to selected standards.
2. CPT-I Current Transformer Tester can give word report for test result.
3. Make word reports one time for multi-group test records on the PC.
4. Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test.
5. Compare excitation curves with saved excitation curves in the same window.

Specifications:

• Test standards: IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
• Power supply: AC220V±10%, 50/60Hz±10%
• Voltage output: 0.1~180V (AC)
• Current output: 0.001~5A(RMS)
• Power output: 500VA
• Maximum knee voltage measurement: 45KV
• PT ratio error measurement: typical error <0.05%, maximum error<0.1%
• PT phase angle measurement: maximum error < 3min
• Memory capacity: >1000 groups test results
• Working condition: temperature: -10℃～50℃, humidty: ≤90%
• Size: 485mm×356mm×183mm, weight: <15kg
