| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | FRPT |
| Minimum Order Quantity: | 1 set Critical Radiant Flux Tester |
| Price: | Negotiable |
| Packaging Details: | Critical Radiant Flux Tester is packed with standard plywood case. |
| Delivery Time: | In 60 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50 sets per month |
| Product Name: | Critical Radiant Flux Test Apparatus | Application: | Reaction To Fire Tests For Floorings — Part 1: Determination Of The Burning Behaviour Using A Radiant Heat Source |
|---|---|---|---|
| Referemce Standard: | EN ISO 9239-1, ASTM E648- 17 | Color: | Silver |
| OEM Service: | Available | Power Supply: | 50HZ,380V,3 PHASE |
| Size Of Test Unit: | 1,400(W)×500(D)×2,200(H)mm | Weight: | 200kg |
| Warranty: | One Year | Size Of Controller: | 600(W)×750(D)×1600(H)mm |
| Highlight: | Critical Radiant Flux Test Apparatus,ASTM E648 Flooring Test,ASTM E648 |
||

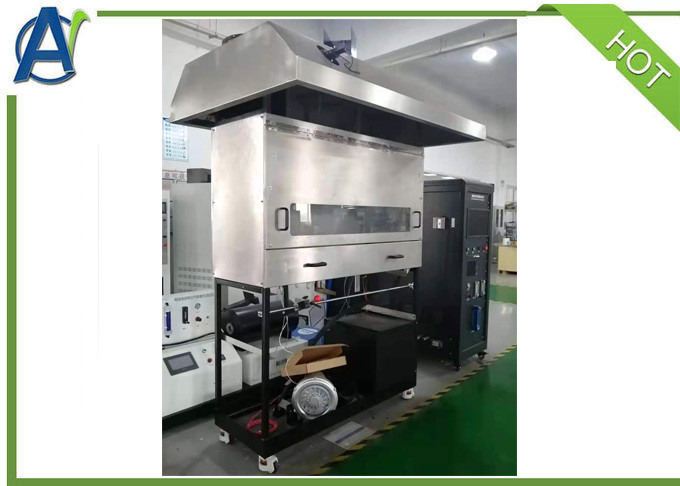

Introduction:
Critical Radiant Flux is the main parameters of the fire risk for flooring materials.It reflects the burning and spreading ability of flooring material specimen under external heat radiation conditions.It is an important index of combustion classification for building products.
According to ISO9239-1,2 and GB/T 11785-2005 requirements,it measures the critical radiant of combustion floor coverings, through the radiation environment of test chamber. It is can also be used to measure the critical radiation of the cellulose insulation floor material.
Main Features:
1, All structural components of Critical Radiant Flux Test Apparatus are made of stainless steel, appearance,and corrosion resistance;
2, The radiation source is a porous ceramic heat radiating plate of 300mmX450mm, and tilted 30 °;
3, The calorimeter is imported from United States, range 50kW/m2;
4, The igniter diameter is 0.7mm, 19/EA, is located at the bottom of the center line of each 60°；
5, The standard plate is made of calcium silicate without coating layer,which is size of 1050X250mm and thickness is 20±1mm ,density is 850 ± 100kg/m³；
6, Small stainless steel auxiliary ignition burner ignited sample.
7, Inlet flow control valve, precise control of propane flow;
8, Critical Radiant Flux Test Apparatus is equipped with air blower providing air, mixed gas through the venturi mixing gas,
Specifications:
| Size | 1,400(W)×500(D)×2,200(H)mm |
| Console Size | 600(W)×750(D)×1600(H)mm |
| Power | AC 220V, 50/60Hz, 20A |
| Max.Power | 5KW |
| Weight | 200kg |
| Exhaust | 30~85㎥/min |
FAQ:
1.What electrical connection/s do we need? What are the Hz/Voltage of the supply? Single or 3 phase?
50HZ,380V,3 PHASE
2.What gas and compressed air connections and pressure are required?
Propane:0.1Mpa
Compressed air:0.1Mpa
3.With the exhaust fan, is there provision for connecting to an external duct?
Reserve orifice of inner diameter 360cm,you can add duct by yourself.
4.Price of Recommended Spares
| Name | Unit Price |
| Thermal couple | USD$120 |
| Calibration plate | USD$100 |
| Sample holder | USD$300 |
| Relay | USD$10 |
