I.Introduction:
TDT Tan Delta Test Equipment is an integrated structure, there is a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor built-in;
This Loss Angle Test Equipment can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz,45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, this power factor tester can avoid interference of power frequency;
This dissipation factor test equipment can also be used as power supply;
II.Specifications:
| No. | Item Name | Transformer Tan Delta Test Loss Angle Test Dissipation Factor Test Equipment | ||
| 1 | Use conditions | -15℃~40℃ | RH<80% | |
| 2 | Anti-interference | Frequency conversion | ||
| 3 | Power | AC 220V±10% | Allowable generator | |
| 4 | High output | 0.5KV~10KV | Every 0.1kV | |
| Precision | 2% | |||
| Maximum current | 200mA | |||
| Capacity | 2000VA | |||
| 5 | Self-excited power | AC 0V~50V/15A |
45HZ/55HZ 47.5HZ/52.5HZ 55HZ/65HZ 57.5HZ/62.5HZ Automatic double frequency |
|
| 6 | Resolving power | tgδ: 0.001% | Cx: 0.001pF | |
| 7 | Precision | tgδ:(Reading*1.0%+0.040%) | ||
| Cx :(Reading*1.0%+1.00PF) | ||||
| 8 | Measuring range | tgδ | Unlimited | |
| Cx | 15pF < Cx < 300nF | |||
| 10KV | Cx < 60 nF | |||
| 5KV | Cx < 150 nF | |||
| 1KV | Cx < 300 nF | |||
| CVT test | Cx < 300 nF | |||
| 9 | CVT range | 10~10000 | ||
| accuracy | 0.1% | |||
| Resolving power | 0.01 | |||
| 10 | Dimension | 350*270*270mm | ||
| 11 | Memory size | The 200 group supports U disk data storage | ||
| 12 | Weight |
28 Kg |
||

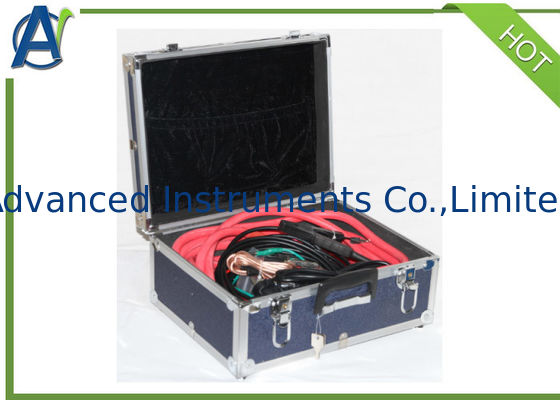

Spares of Transformer Tan Delta Test Loss Angle Test Dissipation Factor Test Equipment
| NO. | Name | Quantity | Unit |
| 1 | Main Unit | 1 | Set |
| 2 | Accessory case | 1 | PC |
| 3 | Red HV test cable | 1 | Root |
| 4 | Black LV test cable | 1 | Root |
| 5 | AC220V power cable | 1 | Root |
| 6 |
CVT self-excited power cable (attached)
|
1 | Root |
| 7 |
Ground wire
|
1 | Root |
| 8 | Fuse, printer paper | Spare |
