Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-1122 |
Minimum Order Quantity: | 1 set Relative Density Test Apparatus |
Price: | Negotiable |
Packaging Details: | Relative Density Test Apparatus packed in Hardboard |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Power Supply: | AC220V /50HZ | Temperature Controlling Range: | 20℃±0.2℃ |
---|---|---|---|
Working Units: | 2 Holes | Test Standard: | SH/T0068, ASTM D1122 |
Keyword: | Relative Density Test Apparatus | Warranty: | 1 Year |
Stirring Mode: | Motor | Heating Mode: | Electrical Heating Tube |
High Light: | Relative Density Test Apparatus,Density Test Apparatus,ASTM D1122 |

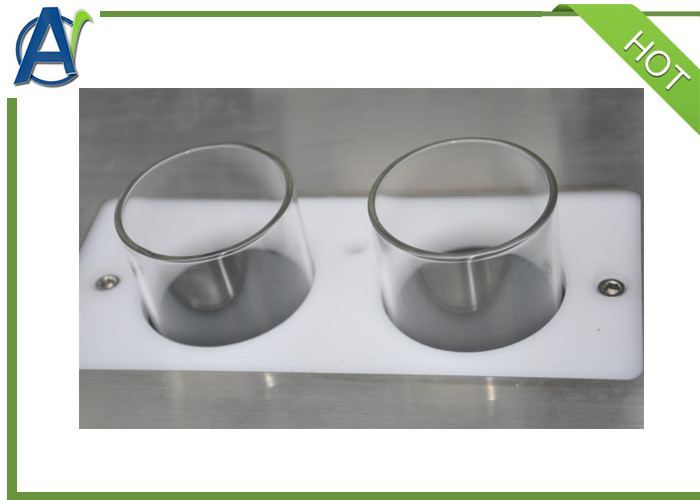

Introduction
This relative density test apparatus is combined requirements of Chinese standards and ASTM D standards.It adopts densimeter to determine relative density of engine coolants and engine coolant concentrates.The structure is separated,and operatio is easy.It is highly improve the working efficiency.
Characteristic
1. Standard glass tube can meet requirements of ASTM test method.
2. Glass bath allows transparent observation,the operation is easy,
3. This apparatus adopts fully closed air compressor refrigeration.
4. The cooling medium is cycles with noise-free circulating pump,
5. Heater is stainless steel.
6. Structure is separated,and it is easy to move.
7. There is hole on the cooling bath to add cooling medium,it can be added at any time if medium is lost.
8. Micro-computure controlling,PID function,digital tempeature display(continuous display during test),accuracy 0.1℃,Pt100 RTD temperature probe.
9. Contact control box is very convenient.
10. Over-heat safety protection device.There are low liquid level alarm and automatic liquid level adjuster in water bath,
Technical specifications
1 | Applicable standards | SH/T0068, ASTM D1122 |
2 | Temperature controlling range | 20℃±0.2℃ |
3 | Refrigeration mode | Air compressor |
4 | Heating mode | Electrical heating tube |
5 | Stirring mode | Motor |
6 | Working units | 2 holes |
7 | Power supply | AC220V/50Hz |
Temperature controller
