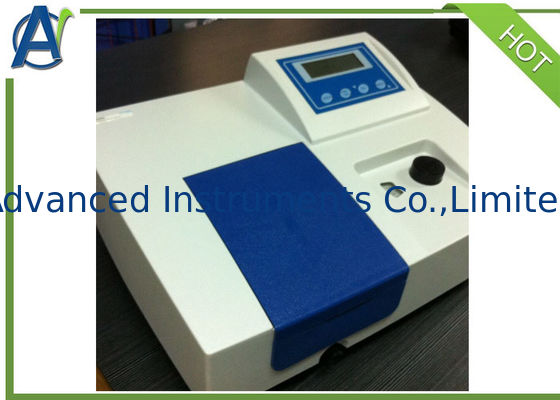

G Series Visible Spectrophotometer Visible Spectrophotometry Instrument

G Series Visible Spectrophotometer Visible Spectrophotometry Instrument
G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument G Series Visible Spectrophotometer Visible Spectrophotometry Instrument
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO
Model Number: G Series
Minimum Order Quantity: 1 set Visible Spectrophotometer
Price: Negotiable
Packaging Details: Visible Spectrophotometer packed in Plywood case
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now
Test Method: Visible Spectrophotometry Wavelength Range: 200 ~ 1000nm
Wavelength Accuracy: ±2nm Spectrum Bandwidth: 5nm/2nm/4nm
Display: LCD Power Supply: AC220V±10%/50HZ
Warranty: 1 Year Color: White
Highlight:

Visible Spectrophotometer

,

Visible Spectrophotometry

,

Spectrophotometry

G Series Visible Spectrophotometer


Advantages
  • Sample compartment for 5-100mm cuvettes.
  • The spectrophotometer is equipped with RS232 port.
  • Precise automatic T/A changeover.
  • The spectrophotometer has function of automatic zero and full scale adjustment.
  • Direct concentration read-out and concentration factor setting function.
  • Software optional.
  • Dedicated printer optional.
APPLICATIONS
G series economic visible spectrophotometer is being widely used in colleges and enterprises for general quantitative
analysis and experiments based in absorbance measurements.

COMMON FEATURES
  • High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
  • Backlit LCD display for an easy readout.
  • Automatic 0A and 100%T. Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
  • Direct concentration read-out and concentration factor setting function.
  • Large sample compartment, which can accommodate 5mm to 100mm path length cuvettes with optional holders.
  • The visible spectrophotometer is easy to change the halogen lamp or deuterium lamp by the user himself

STANDARD ACCESSORIES

No. Name Quantity
1 User manual 1 Copy
2 1cm glass cuvette 4 PCS ( 721G/721G-100/722G only )
3 1cm quartz cuvette 2 PCS ( 752G only )
4 Power cable 1 PC


Technical Specifications

Models 721G 721G-100 722G 752G
WL range 340-1000 nm 325-1000 nm 200-1000 nm
WL accuracy ±2nm
WL repeatability ±1nm
Spectrum bandwidth 5nm 5nm 2nm 4nm
Transmittance accuracy ±0.5% (t) (NBS930D)
Transmittance repeatability £0.2% (t)
Transmittance measuring range 0-100T
Absorbance measuring range 0-2A
Stray light

£0.5% (t)(at 360nm, NaNO2)

£0.3% (t)(at 220nm, NaI)
Drift £0.5% (t)/3min
Signal noise 0.2T%
RS232 including
Cell holder 50mm 100mm 50mm 50mm
Power supply 220V 50Hz (220V/110V optional)
G.W. 13.5kg 15kg
Package Dimensions 560 x 480 x 290mm 0.078M3



OPTIONAL ACCESSORIES
Thermal printer
10mm cuvette holder
50mm cuvette holder
100mm cuvette holder
UV WIN7 software


Package of G Series Visible Spectrophotometer Visible Spectrophotometry Instrument
G Series Visible Spectrophotometer Visible Spectrophotometry Instrument 0

G Series Visible Spectrophotometer Visible Spectrophotometry Instrument 1
