ASTM D2624/D4308 Electrical Conductivity Meter

Introduction

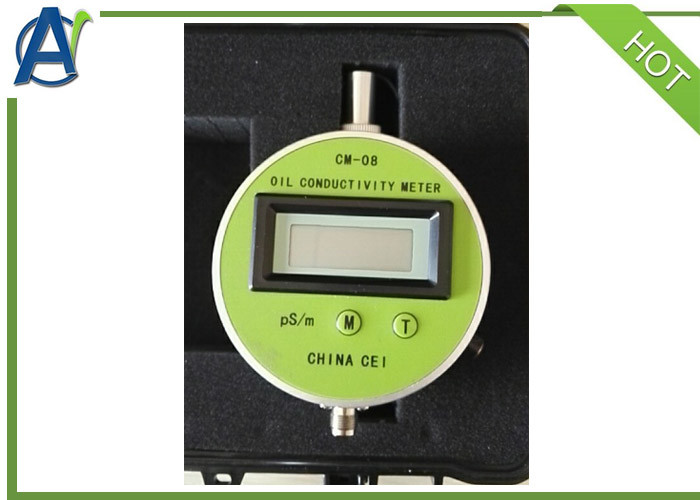

This electrical conductivity meter AIC-08 is mainly used to determine conductivity of light petroleum,such as gasoline,kerosene and diesel etc.AIC-08C is mainly used to determine conductivity of compressor oil,lubricating oil. By measuring conductivity,we can qualitatively know the Electrostatic safety,insulating performance,purity and other physical characteristics rapidly.

Reference standards:

• ASTM D4308-89
• ASTM D2624
• ISO 6297
• GB 6950-2001
• GB/T 6539-1997
• GB 13348-1992

Technical specifications

1.Measuring range:

(pS/m is unit of conductivity,equivalent to ‘cu’);

2.Structural constant and accuracy of conductivity cell:1.00/m±5%;

3.Reading mode:LCD digital display;

4.Power supply: in-built 6F22 type 9V battery,intermittently power supplying.(for exporting,the battery need to prepare by users);

5.Working condition:  Temperature: 0~+40℃; Relative humidity:≤85%

6.Structure characteristics:

Half-sealed structure

iaAT5 design

Small and portable

7.Overall dimension:

Main unit:φ100×35mm

Electrode:φ14×140mm

8.Weight:0.5KG
