Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | SCT-IV |
Minimum Order Quantity: | 1 set Ultraviolet Fluorescence Sulfur Content Analyzer |
Price: | Negotiable |
Packaging Details: | Ultraviolet Fluorescence Sulfur Content Analyzer packed in Hardboard |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 sets per month |
Standards: | ASTM D5453 | Test Method: | Ultraviolet Fluorescence |
---|---|---|---|
Temperature Controlling Range: | Ambient To 1150℃±1℃ | Measuring Range: | 5ppm ~5000ppm |
Power Supply: | AC220V ± 10%, 50Hz | Total Power: | 1500 W |
Warranty: | 1 Year | Sample Quantity: | 5-20μL |
Highlight: | Sulfur Content in Oil Analyzer,Ultraviolet Fluorescence Sulfur Content Analyzer,ASTM D5453 |
ASTM D5453 Ultraviolet Fluorescence Sulfur Content in Oil Analyzer
Introduction:
This instrument is used to determine the total sulfur content by ultraviolet fluorescence method.It Improves the ability of anti-jamming and avoids the complicated operation of titration pool and factors of instability which used Coulometry. So the sensitivity of the instrument is greatly improved. The key components of the system adopt imported components to protect the detector light leakage and steam leakage and makes the machine has a reliable guarantee. Standards:SH/T 0689-2000, ASTM D 5453 -2006
Specifications:
Standard configuration | Printer+Computer+Main unit+Liquid injector |
Other optional parts | Solid sample injector, gas sample injector |
Sample types | Solid, gas and liquid |
Sample injection quantity | Solid:1-20mg; Liquid:5-20μL; Gas:1-5mL |
Measuring range | 5ppm ~5000ppm(High concentration should be diluted, Low concentration gas sample is up to 0.1ppm) |
Temperature range | Ambient to 1150℃±1℃ |
Air supply requirements | High purity argon:above 99.9% ; High purity oxygen:above 99.9% |
Power supply | AC220V±22V,50Hz±0.5Hz,1500 W |
Dimension |
Host:305(W)×460(D)×440(H)mm; Temp controller:550(W)×460(D)×440(H)mm |
Net weight | Host:20kg, Temp controller:40kg |
Test standard | ASTM D5453 |
Test method | Ultraviolet Fluorescence |
Phtotos of Other Sulfur Content Analyzer
Lamp Method

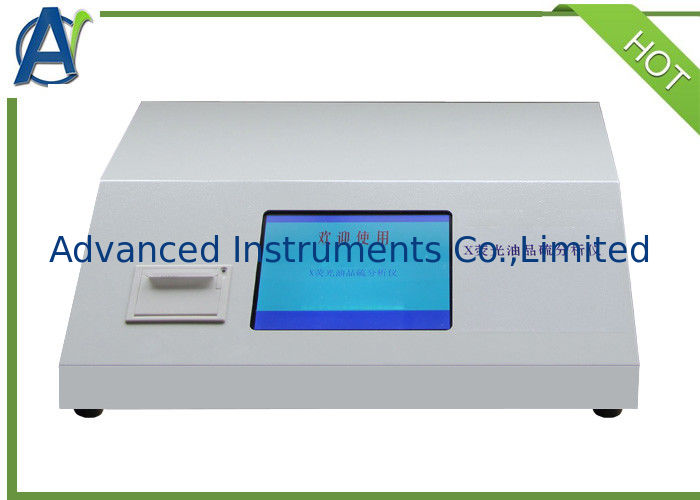

XRF Method
Quzte Tube Furnace Method
