| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO9001 |
| Model Number: | AIC-0048 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD$5,000~8,000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T,Western Union,L/C |
| Supply Ability: | 20sets per month |
| Power Supply: | AC220V ±10% 50Hz | Types: | Automatic |
|---|---|---|---|
| Language: | English | OEM Service: | Available |
| Test Standard: | [OC] 7163 SH/T0048 | Capillary Diameter: | Φ0.5, Φ1, Φ2mm |
| Recorder Speed: | 0.0111, 0.195, 3.42r/min | Temperature Control Range: | -60-50℃±0.1 |
| Refrigeration Method: | Dual Compressor Refrigeration | Heating Method: | Electric Heating Tube Heating |
| Circulation Method: | Magnetic Pump Circulation | Power Of The Whole Machine: | 1500w |
| Instrument Size: | 750mm*430mm*630mm | Net Weight: | 49kg |
| Highlight: | lubricating grease viscosity tester,petroleum lab viscosity instrument,grease apparent viscosity measuring equipment |
||

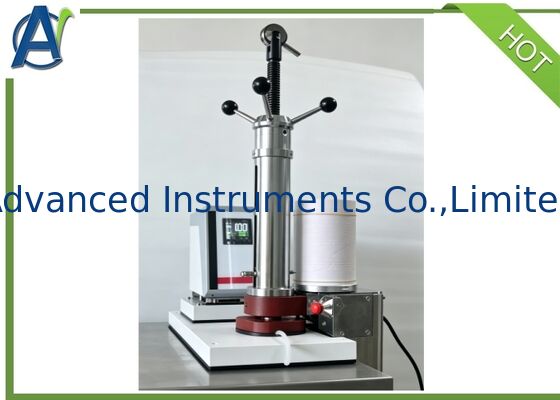

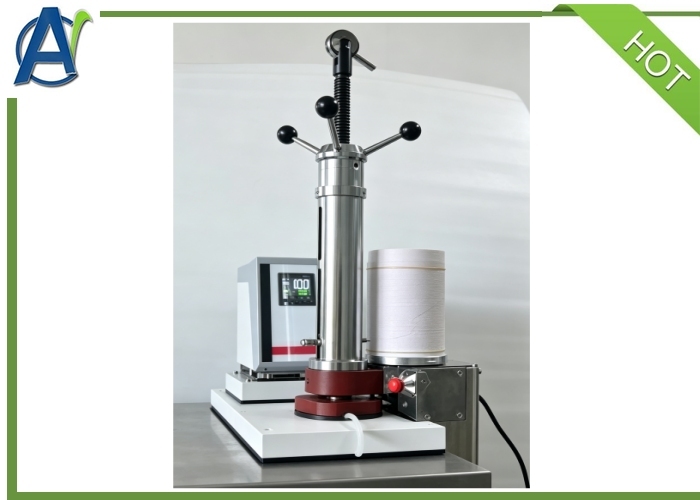

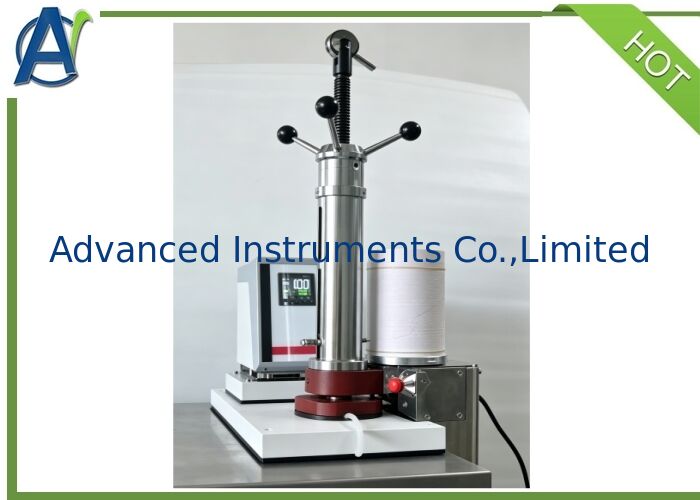

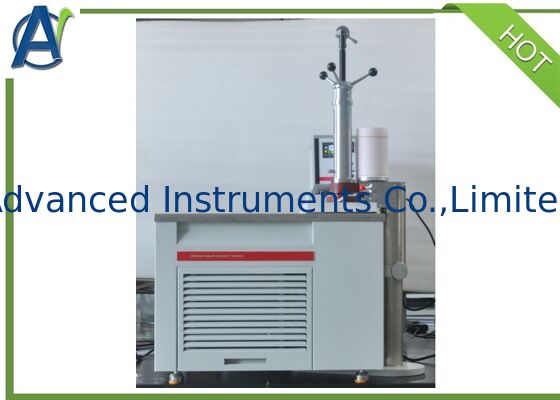

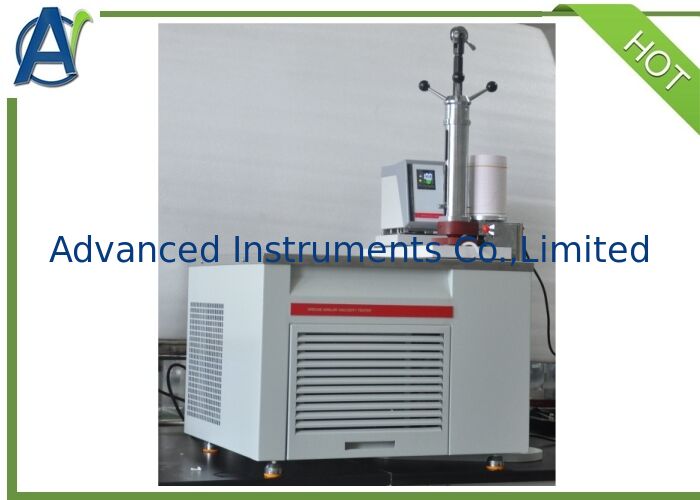

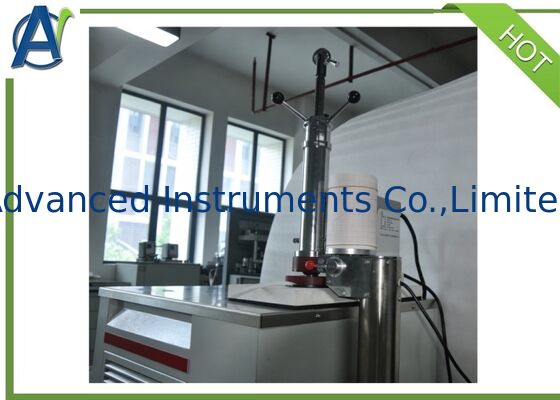

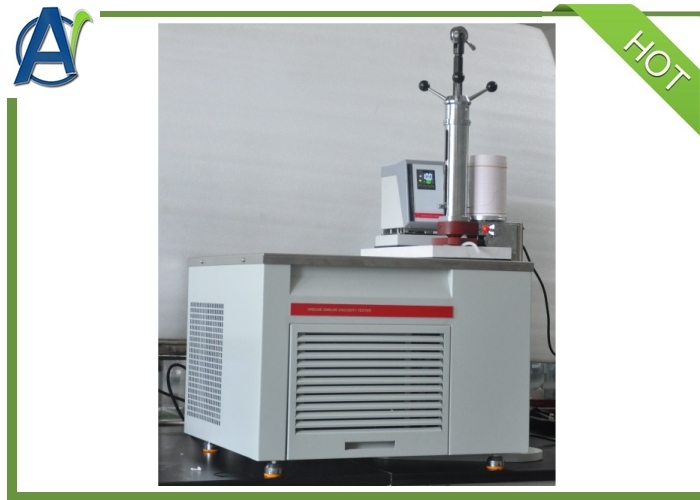

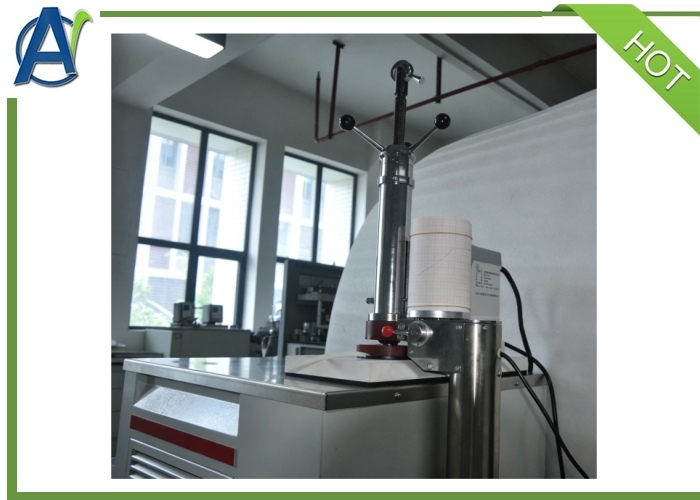

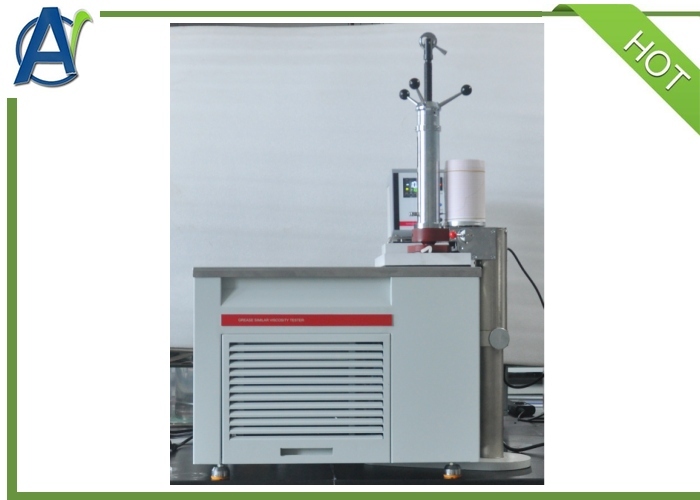

This Lubricating Grease Relative Viscosity Tester adopts the automatic capillary viscometer method to measure the apparent viscosity of samples, and it is applicable to the testing of lubricating greases.
1. Capillary viscometer with reasonable and compact structure;
2. The magnetic circulating pump transmits the medium without noise;
3. Stainless steel medium bath body;
4. Microcomputer temperature controller, digital display, accuracy ±0.1℃;
5. Fully enclosed compressor refrigeration to ensure the supply of cooling capacity;
6. Integral structure, easy to move.
7.Special analysis software supports viscosity calibration & calculation.
|
Applicable standards
|
[OC] 7163 SH/T0048
|
|
Capillary diameter
|
Φ0.5, Φ1, Φ2mm
|
|
Recorder speed
|
0.0111, 0.195, 3.42r/min
|
|
Temperature control range
|
-60-50℃±0.1
|
|
Refrigeration method
|
dual compressor refrigeration
|
|
Heating method
|
electric heating tube heating
|
|
Circulation method
|
magnetic pump circulation
|
|
Working Power Supply
|
AC220V/50Hz
|
|
Power of the whole machine
|
1500w
|
|
Instrument Dimensions
|
750mm*430mm*630mm
|
|
Net Weight
|
49kg
|
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
