Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | COC-H5 |
Minimum Order Quantity: | 1 set Fully Automatic Cleveland Open Cup Flash Point Analyzer |
Price: | Negotiable |
Packaging Details: | Fully Automatic Cleveland Open Cup Flash Point Analyzer packed in Hardboard |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 sets per month |
Test Standard: | ASTM D92,GB/T3536,ISO2592 | Measuring Range: | Ambient~400℃ |
---|---|---|---|
Power Supply: | AC220V±10%/50HZ | Display: | LCD |
Purpose: | Measure Flash Point Of Petroleum Products | Powr Consumption: | 400W |
Warranty: | 1 Year | Color: | White And Black |
Error: | 6℃ | Repeatibility: | Flash Point 12℃;Fire Point 10℃ |
High Light: | open cup flash point,Automatic Flash Point Tester,Flash Point Test Instrument |
Product Description
Introduction

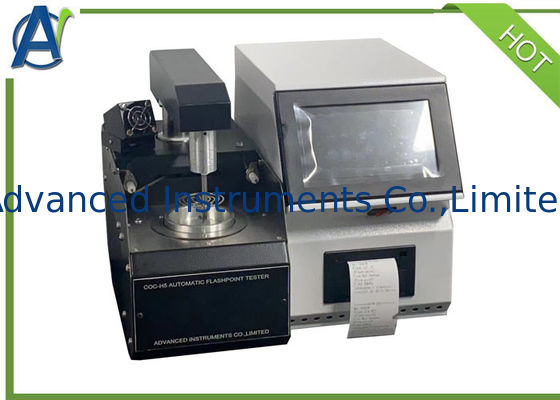

According to test method of GB/T3536,this open cup flash point test instrument adopts advanced Microprocessor and PID temperature controlling technology, the temperature rising speed is fast, temperature controlling is more precise, and test result is more accurate.
LCD big screen replaces old design of RS323 port, the operation is easier.
This open cup flash point test instrument is highly automatic, which can automatically calibrate atmosphere, lift, rise temperature, switch, inspect final point, print test result, air cool etc. All test procedures are automatic, and it can stop when temperature exceeds limit.
Main Features:
1.The open cup flash point test instrument is fully automatically controlled by micro computer, all procedures and result printing are automatic.

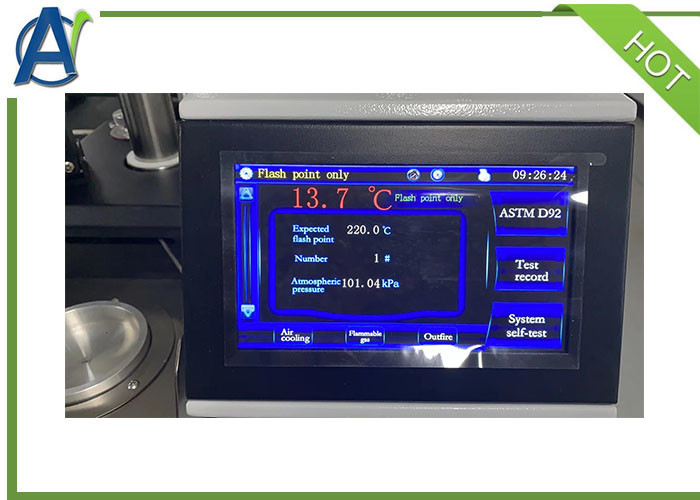

2.Big screen interface displays test temperature, oil serial number, test time etc. All process is clear.
3.The micro-printer can save cost.
4.Tempeature is raised by SCM program, and it makes sure the result correct.
5.The flash point tester is automatically cooled by air when the test is finished,
6.The flame size can be adjusted.
7.Automatic lifting system is easy for operation
8.It's made by cold-rolled sheet, surface treated by Electrostatic spraying. It's corrosion resisting and easy to clean.
9.The open cup flash point analyzer can be operated manually or automatically
10.Correction function: current date, time, temperature and atmosphere
11.It has protection and self-diagnosis procedures
12.Both main controlling and measuring parts are imported, which makes sure the reliability and stability.
13.The flash point test instrument is compact, small and beautiful
14.High degree of automation: set flash point as per operation method on LCD display screen, press "Start" key, the whole test will be proceeded automatically.
Technial Specifications
Serial No. | Item | Parameters |
1 | Applicable standards | GB/T3536,ISO2592,ASTM D92 |
2 | Display mode | LCD |
3 | Display contents |
1)controlling temperature and expected set flash point 2) Fault prompt |
4 | Measuring range | ambient~400ºC |
5 | Measuring accuracy | 0.1ºC |
6 | Refrigeration method | forced air cooling |
7 | Environmental condition | Temperature:10~55ºC;Humidity: 30~80% |
8 | Error | Flash point 6 ºC;Fire point 6ºC |
9 | Repeatability | Flash point 12ºC;Fire point 10ºC |
10 | Power supply | AC220V±10%/50HZ |
11 | Power consumption | 400W |
Factory overview
Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.
Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Package
Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.
Customer Feedback
Germany
USA
FAQ
1.What's the delivery time?
About 30 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
