Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-217J |
Minimum Order Quantity: | 1 set Mechanical Grease Worker |
Price: | Negotiable |
Packaging Details: | Mechanical Grease Worker packed in Hardboard |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Standards: | GB/T269,ASTM D217 | Motor Speed: | 1400RPM |
---|---|---|---|
Coupling: | Elastic Spider | Display: | LCD |
Stroke: | 67-71mm | Shear Rate: | 60 Times Per Minute |
Power Consumption: | 1200W | Power Supply: | AC220V,50Hz |
Weight: | 62KG | Dimension: | 600*500*550mm3 |
High Light: | Grease Worker,astm d217,grease testing |

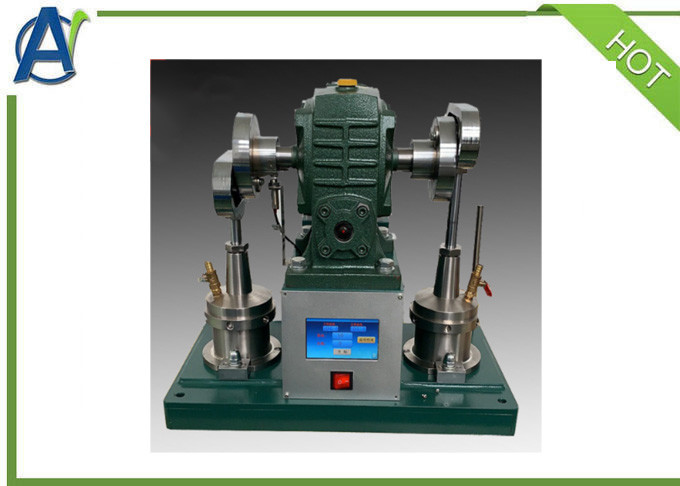

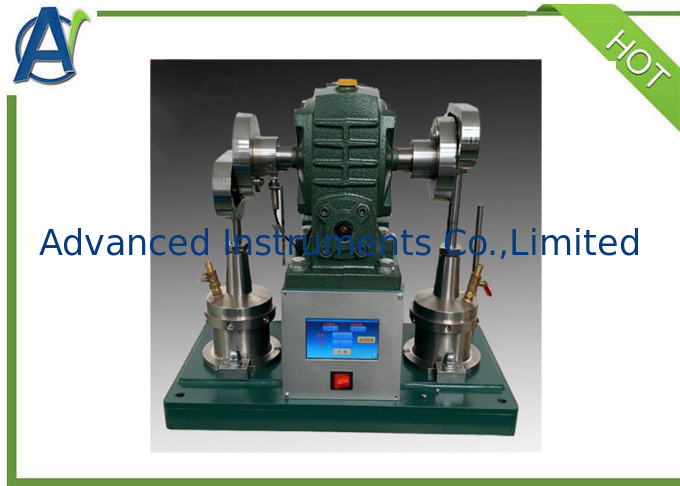

Structure:
1. The spindle motor adopts a single-phase squirrel-cage motor, which runs smoothly; the reducer adopts a box-type gear structure, which works reliably;the base is made of thick steel plate, which is firm and durable.
2.Coupling with elastic spider is used to connect the reducer and the motor.
3. Double output shaft reducer. The transmission ratio is 25:1, and a pair of eccentric mechanisms are installed on the turbine shaft at both ends of the reducer.
4. It is installed on the frame on both sides of the reducer, driven by the motor through the coupling through the eccentric mechanism of the reducer, and works continuously at about 60 movements per minute.

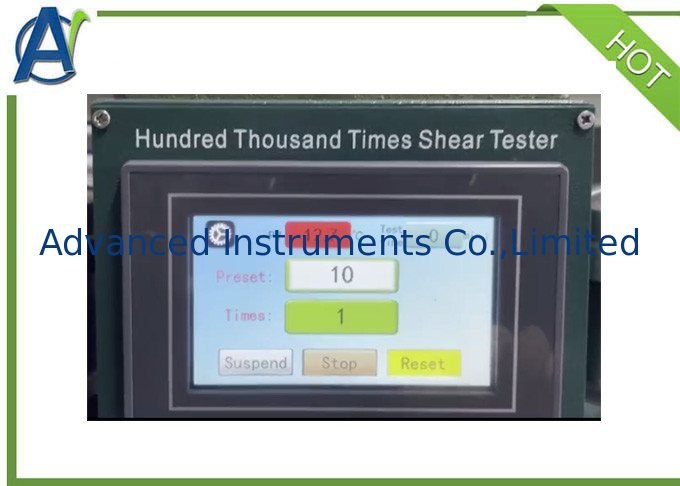

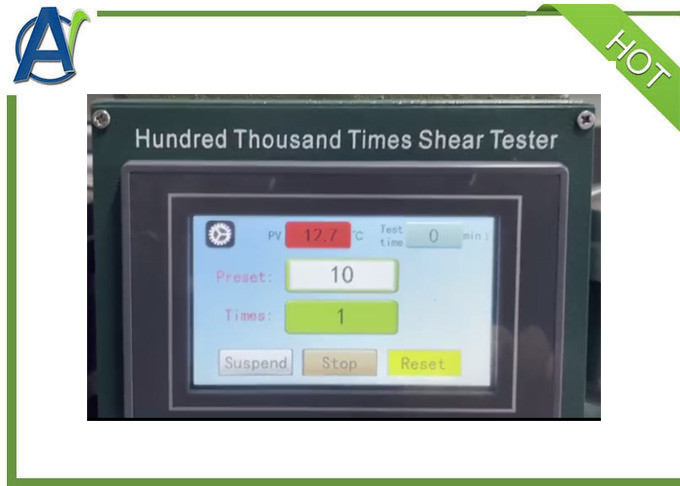

5.5-inch color LCD touch screen. When selecting the number of computer relays, use the wave switch to arbitrarily set a number (time), when the number reaches the set value, it can drive the relay to work and cut off the motor power.
Technical Specifications
1 | Applicable standard | GB/T269,ASTM D217 |
2 | Motor speed | 1400 RPM |
3 | Coupling | Coupling with elastic spider |
4 | Counting display | Small plate counter |
5 | Stroke | 67-71mm |
6 | Shear rate | 60 times per minute |
7 | Power consumption | 1200W |
8 | Power supply | AC220V,50Hz |
9 | Overall dimension | 600*500*550mm |
10 | Weight | 62KG |
