Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-3336 |
Minimum Order Quantity: | 1 set ASTM D3336 Life of Lubricating Greases in Ball Bearings Apparatus |
Price: | Negotiable |
Packaging Details: | ASTM D3336 Life of Lubricating Greases in Ball Bearings Apparatus packed in hardboard box |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Test Standard: | SH/T 0428, ASTM D3336 | Power Supply: | AC220V,50HZ |
---|---|---|---|
Temperature Control Range: | Ambient Temperature ~ 380 ºC | Heating Method: | Electric Heater |
DC Motor: | 10000r/min ± 200r/min | Color: | Grey |
Display: | Touch Screen | Warranty: | 1 Year |
High Light: | ASTM D3336,Life of Lubricating Greases Apparatus,grease apparatus |

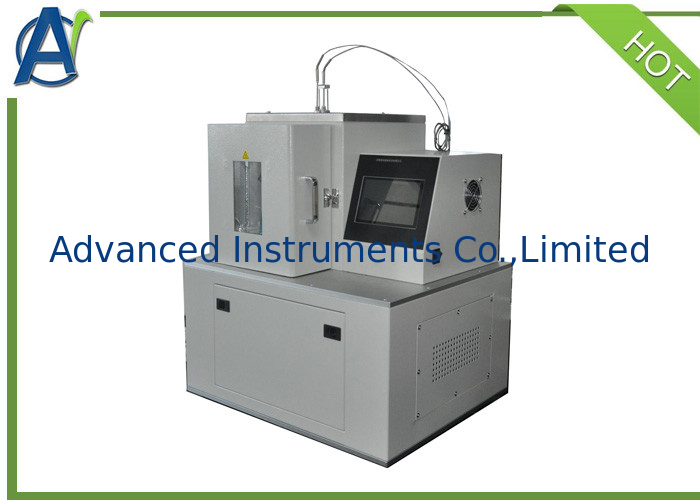

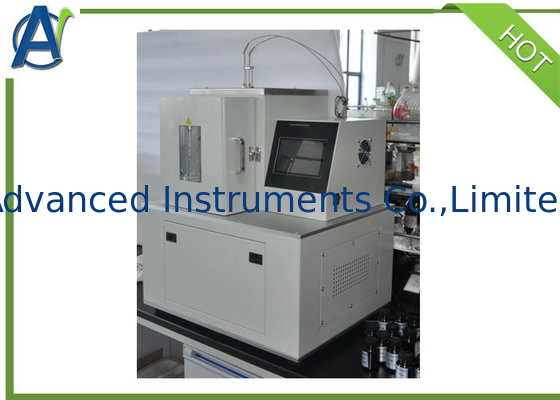

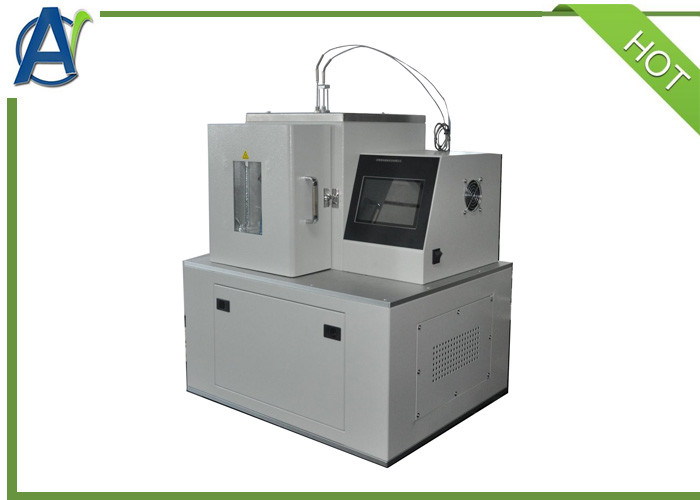

I. Introduction:
The Life of Lubricating Greases in Ball Bearings Apparatus is fully automatic controlled by a computer and automatically discriminates the results. After the sample is installed, the apparatus will automatically perform intermittent work according to the standard requirements, and the whole process does not need to be held manually, reducing the operation intensity. In order to avoid safety accidents, the new generation of products have fault reminders and automatic shutdown in case of instrument failure, so as to ensure the safe use of equipment or other hardware.
1. High speed DC motor 10000r/min ± 200r/min;
2. Motor speed digital meter display, adjustable, and equipped with overload protection device;
3. The test bearing meets the standard requirements;
4. The heating box is insulated with heat insulating materials;
5. Fixed loading device, no deviation, radial load 22N, axial load 22N;
6. Programmed temperature control, digital display, accuracy ± 1 ºC;
7. Program timing and record the test time;
8. The bearing sleeve is provided with a hole for inserting a thermometer;
9. Long life dry burning electric heater, stainless steel box, easy to clean;
10. Windows operating system, Chinese/English interface;
11. The test bearing tooling is easy to disassemble and operate;
12. The Life of Lubricating Greases in Ball Bearings Apparatus automatically detects faults and shuts down;
13. The test data automatically generates curves and displays them in digital form;
14. Test results are automatically stored and can be queried;
III. Technical Specifications:
1. Applicable standard: SH/T 0428, ASTM D3336;
2. Heating method: electric heater heating;
3. Speed display: program control, digital display;
4. Temperature control mode: program control, digital display;
5. Timing mode: program control, digital display;
6. Temperature control range: Ambient temperature ~ 380 ºC;
7. Load: 22 ~ 67N in radial direction and 22N in axial direction;
8. Temperature control accuracy: ± 1 ºC;
9. Machine power: 1.5kw;
10. Working power supply: AC220V / 50Hz
