Place of Origin: | CHINA |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | CRT-II |
Minimum Order Quantity: | 1 Set Micro Carbon Residue Tester |
Price: | Negotiable |
Packaging Details: | Micro Carbon Residue Tester packed in Hardboard |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 Sets per Month |
Test Standard: | ASTM D4530 Micro Carbon Residue Tester | Power Supply: | AC 220V±10%, 50 Hz |
---|---|---|---|
Test Method: | Micro Method | Temperature Of Coke Chamber: | 520±2℃ |
Measuring Range: | 0.10%(m/m)~30.0%(m/m) | Power Consumption: | 2KW |
Test Units: | 12 | Flow Range: | 100ml~1000ml/min |
High Light: | Micro Carbon Residue Tester,MCRT,ASTM D4530 |
Introduction
The measurement range of this carbon residue tester is 0.10%(m/m)~30.0%(m/m). The test result is equivalent to Conradson method.It can also be used to determine the petroleum products composed of distillate oils which carbon residue is lower than 0.10%(m/m).
Designed according to GB/T17144,the whole working process is automatic:raising temperature,automatic display,automatic timing,automatic switch and control ventilation flow,automatic keep necessary constant time,automatic alarm when test is finished.
Characteristics
1.5 inches TFT colorful LCD display,resolution of screen is 800*480
2.English interface,touch screen operation,easy and fast
3.Temperature raising and flow rate are controlled automatically,test process is shown in real time.
4.Adopt embedded operating system,working is stable and reliable.
5.Safety device for high temperature.
6.It can edit and input sample tube quantity and mass of sample
7.This micro method carbon residue testesr can automatically calculate carbon reside value
8.This MCRT can save 100 groups date,easy to query
9.Saved data can be found according to date.
Technical specifications
1 | Applicable standard | GB/T17144 ,ASTM D4530, ISO10370 ,DIN51551, IP398 |
2 | Temperature controlling | 520±2℃ |
3 | Working units | 12 |
4 | Heating mode | Electric bar,easy to repair |
5 | Connection mode | Imported stainless steel quick connector,without leakage |
6 | Power consumption | 2KW |
7 | Pressure adjust range | 0kPa(0kg/cm2)~392kPa(4kg/cm2) |
8 | Flow adjust range | 100ml~1000ml/min |
9 | Discharge receiving bottle | 200ml,threaded connection glass bottle |
10 | Diameter of air inlet on coke chamber | 1mm,12 pieces in total |

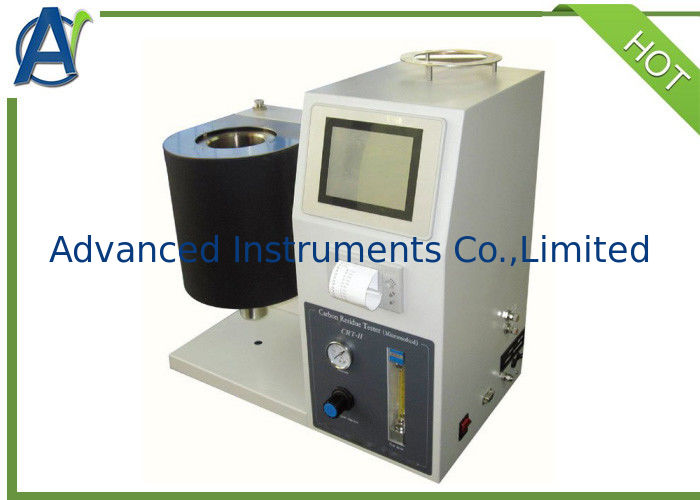

Picture of MCRT with Printer
