Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | BDV-II |
Minimum Order Quantity: | 1 Set Insulation Oil Dielectric Strength Tester |
Price: | Negotiable |
Packaging Details: | Insulation Oil Dielectric Strength Tester packed in Plywood case |
Delivery Time: | 15 days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000 sets per month |
Power Supply: | AC220V±10%, 50Hz/60Hz | Display: | LCD |
---|---|---|---|
Test Standard: | IEC60156/IS6792/BS5874/ASTM D1866/ASTM D877 | Voltage Output: | AC 0V~100KV |
Size: | 620 Mm*430mm*330mm | Weight: | 41kg |
Keyword: | Insulation Oil Dielectric Strength Tester | Test Sample: | Insulation Oil |
High Light: | Insulation Oil Dielectric Strength Tester,ASTM D1816 tester,ASTM D877 tester |

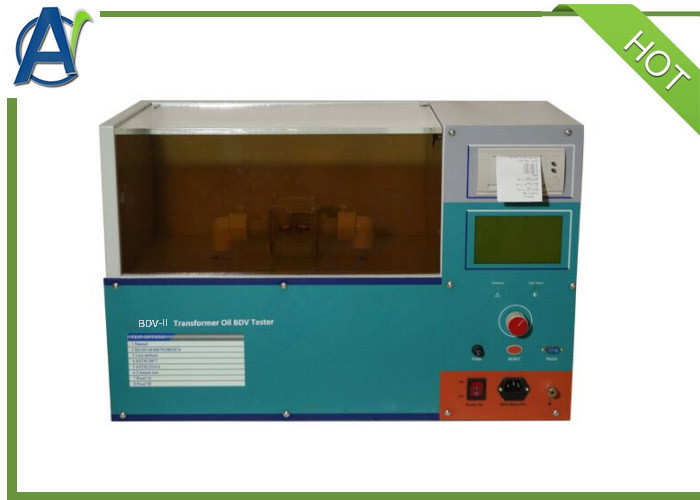

Insulation Oil Dielectric Strength Tester
I. Introduction:
BDV-II insulation oil dielectric strength tester is designed according to the national standard IEC156 Transformer Oil Dielectric Strength Test Method;
This insulating oil withstand voltage test equipment has large LCD display, micro-printer and can store 100 groups data;
This insulation oil breakdown voltage test set is multi-functional, stable, and easy for operation;
II. Functions:
Breakdown test of user-defined;
Proof test;

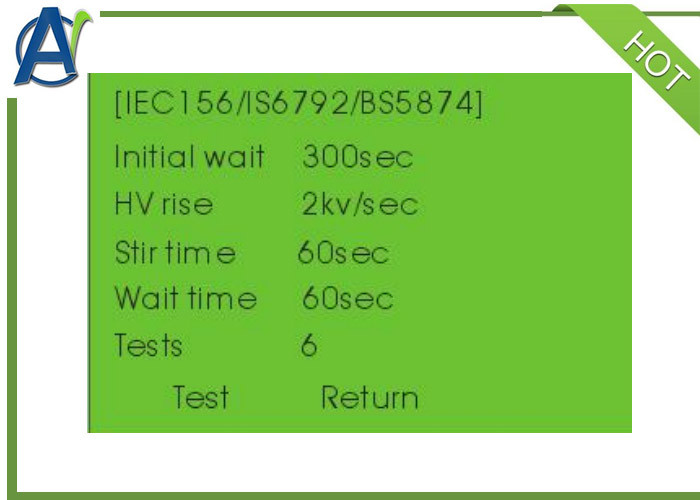

IEC60156/IS6792/BS5874 test;
ASTM D1816 standard test;
ASTM D877 standard test;
5 minutes standard test;
Manual test;
Calibration interface for customers;
This transformer oil tester can upload data to PC and making word report automatically;
Result can be printed by insulation oil tester;
III.Specifications:
Output voltage | AC 0V~100KV |
Rate of voltage rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
Max test times setting for user-defined mode | 9 |
Stir time setting for user-defined mode | 0~999s |
Waiting time setting for user-defined mode | 0~999s |
Test error | 3%RDG+0.3%FS |
Display | 256´128 LCD |
Maximum storage capacity | 100 groups of test data |
Power supply | AC220V±10%, 50Hz/60Hz |
Working environment | 0-50℃, ≤80%RH |
Size | 620 mm*430mm*330mm |
Weight | 41kg |

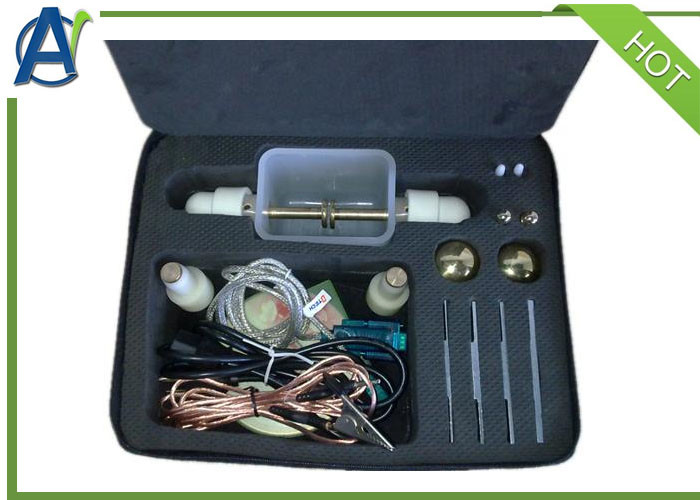

Spare of BDV-II Insulation Oil Dielectric Strength Tester
